2-2 Describing the MCS+ Cabinet Components
P/N 85213-30, Manual revision: B
PRESENTING THE MCS+ CABINET COMPONENTS
The individual components located on the MCS+ cabinet will be presented to the
operator in this chapter, grouped by the following sections:
! Top deck components.
! Front panel components.
! Side panel components.
! Rear panel components.
Note: Any references made to “left”, “right”, “top”, or “rear” are from the per-
spective of an operator facing the MCS+ device during an apheresis procedure.

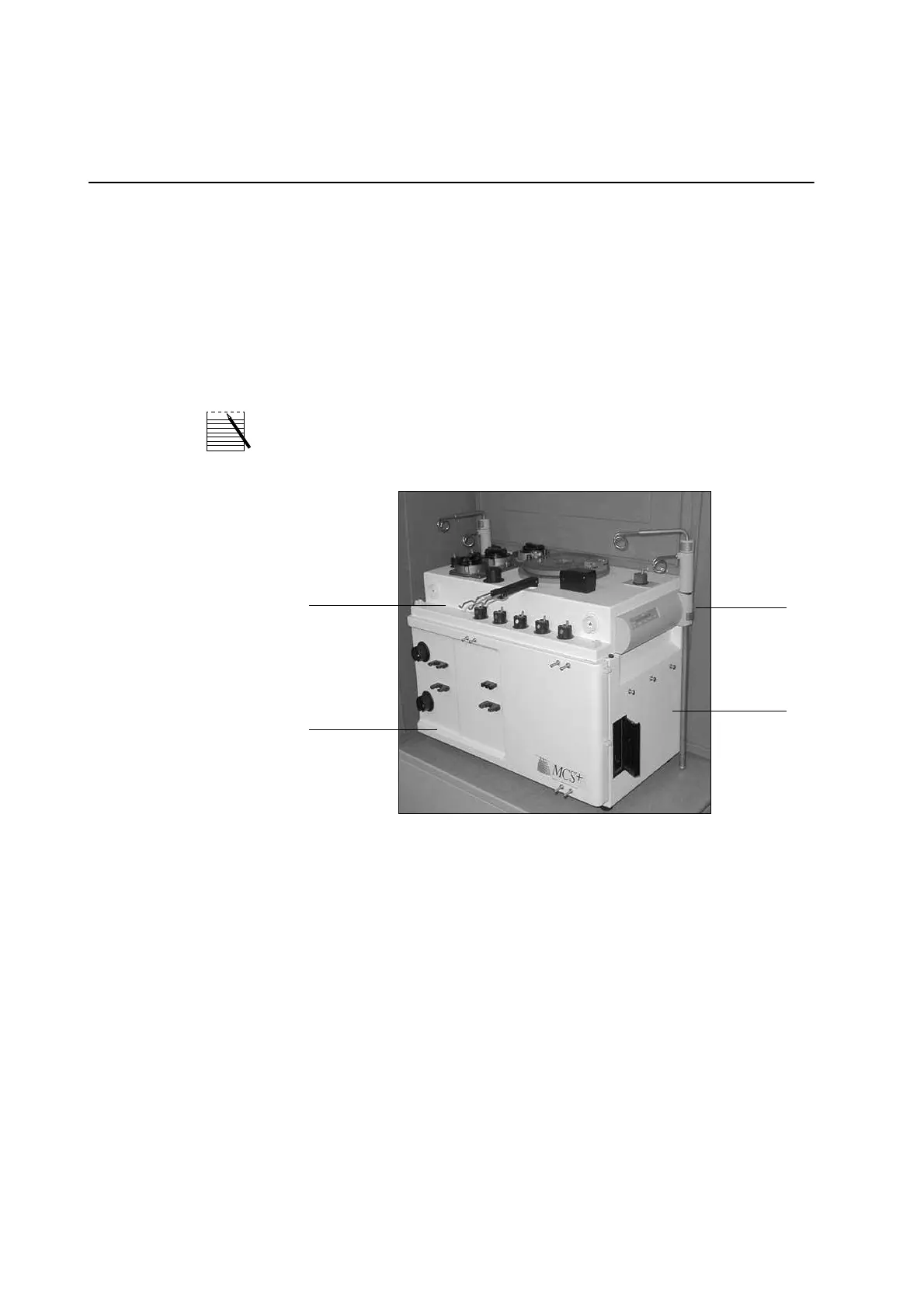

Figure 2-1, MCS+ section distinctions
The disposable elements will be explained in greater detail in Chapter 4 and in
each respective MCS+ protocol manual. As an explanation for the operator
concerning any references made to disposable set elements in this chapter:
Donor line tubing refers to the tubing which is either:
! Transporting blood away from the donor before the blood enters the cen-
trifuge bowl, or,
! Transporting blood from the bowl prior to re-infusion to the donor.
Effluent tubing refers to the tubing which is either:
! Exiting the bowl in the direction of the collection container(s), or,
! Transporting non-selected blood components back to the centrifuge bowl.
1. Top deck
2. Front panel
3. Right side
4. Rear panel (not visible)
1.
2.
3.
4.
