3-2 Describing the MCS+ Control Panel
P/N 85213-30, Manual revision: B
PRESENTING THE MCS+ CONTROL PANEL
The MCS+ control panel provides the operator with the means to interact with
the Haemonetics total apheresis device by allowing the operator to:
! Enter data into the system prior to a procedure.
! Modify program parameters to provide an optimal procedure result.
! Observe feedback about the status of the donor.
! Monitor continuously updated procedure statistics.
! Receive NOTICE messages from the MCS+ safety system.
! Obtain on-line assistance and troubleshoot with HELP messages.

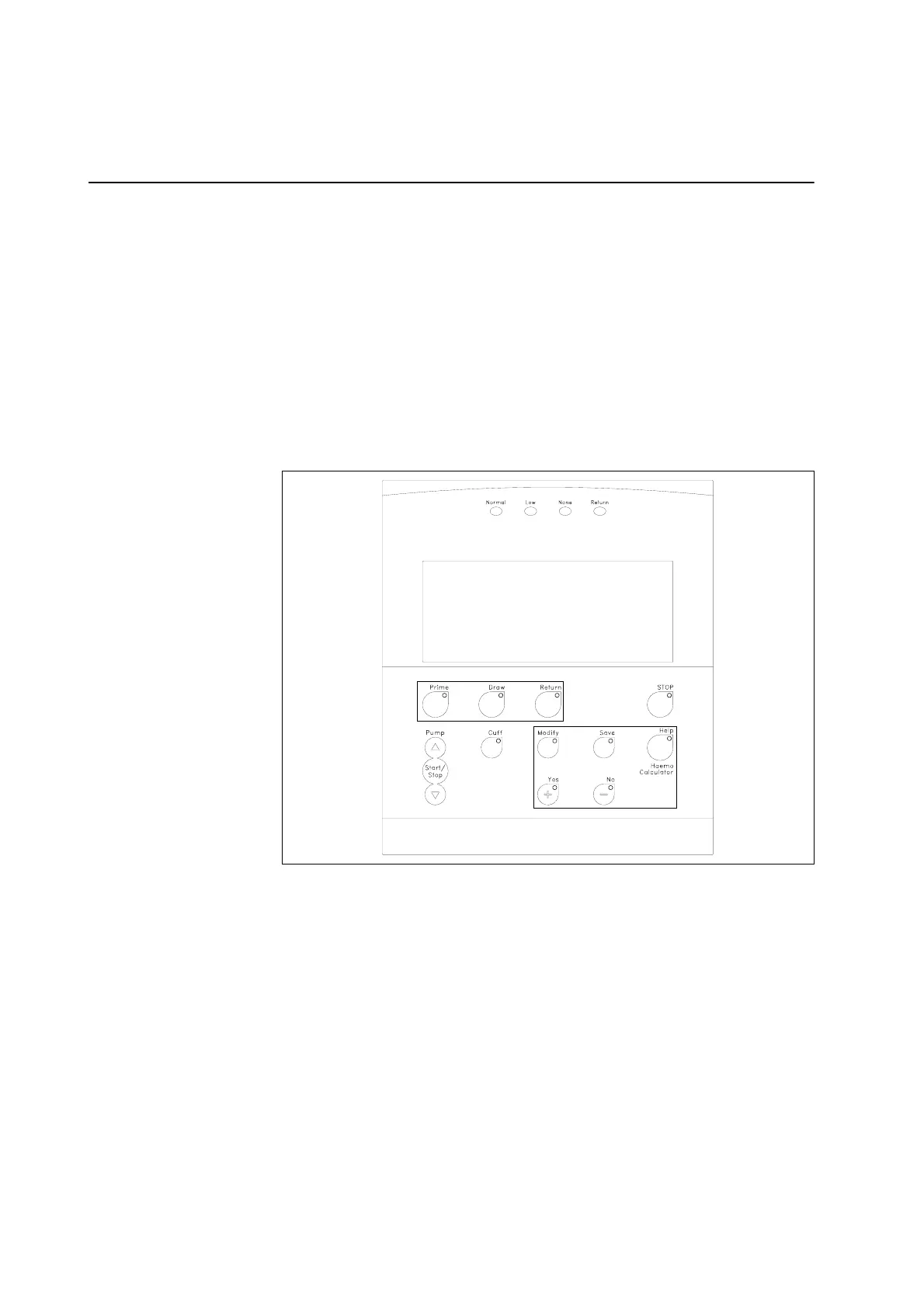

Figure 3-1, MCS+ control panel
The control panel is located on the inside of the hinged MCS+ cabinet cover and
contains:
! A set of flow indicator lights.
! A display screen.
! A keypad.
The upper portion of the control panel communicates information to the operator
by means of the flow indicator lights and the display screen. The lower portion
of the control panel allows the operator to directly interact with the device prior
to and during a procedure by using the keypad.
A. Upper control panel
1. Flow indicator lights
2. Display screen
B. Lower control panel
3. Mode control keys
4. STOP key
5. Pump control keys
6. Cuff control key
7. Programming keys
1.
A.
B.
2.
3.
6.
5.
7.
4.
