Describing the MCS+ Cabinet Components 2-15
P/N 85213-30, Manual revision: B
Platelet filter
holder
Located on the right side of the MCS+ device are brackets used to secure the filter
contained on the MCS+ disposable sets designed for platelet collection.
Disposable set
pins
The MCS+ right side panel contains pins designed to secure disposable bags from
the disposable collection set.
Protocol card
port
An MCS+ collection procedure is performed using the operating instructions
provided on the MCS+ protocol card. Prior to powering on the device, the
protocol card should be inserted into the card port located on the lower right side
of the MCS+ device.
Once the protocol card has been correctly inserted, the door of the card port can
be closed and should remain closed during the entire collection procedure. To
remove the card at the end of a procedure, the operator should open the door and
press the release tab above the card.

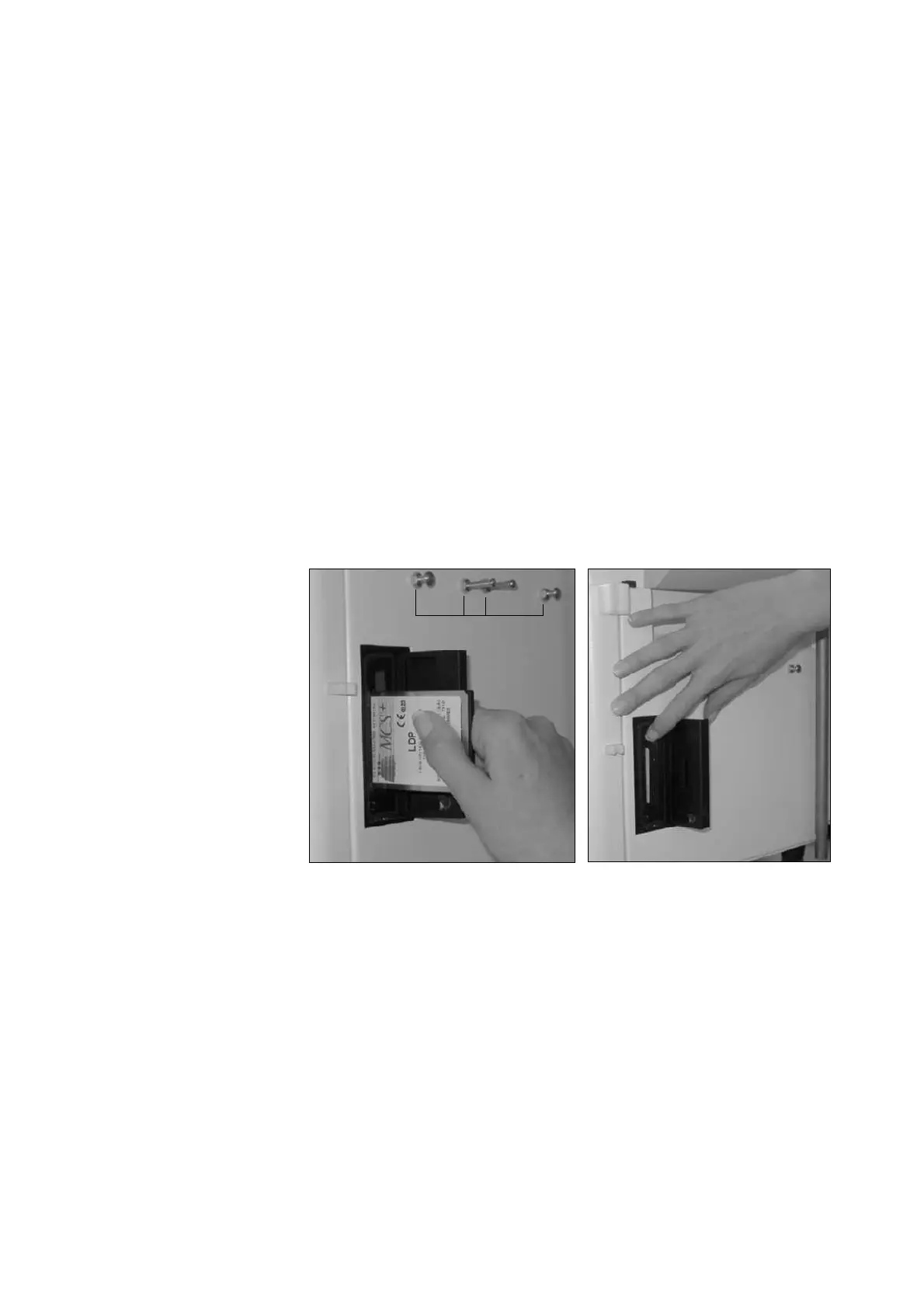

Figure 2-11, MCS+ right side panel
A.
1. Pins
2. Protocol card insertion
into card port
B.
3. Release tab
4. Platelet filter holder
5. Tubing guide
1.
4.
3.
2.
5.
A. B.
