3-6 Describing the MCS+ Control Panel
P/N 85213-30, Manual revision: B
LOWER CONTROL PANEL/KEYPAD
The lower section of the MCS+ control panel consists of a keypad, located
directly below the display screen. There is a protective plastic coating on the
keypad, which allows for efficient cleaning and disinfecting.
The keys are grouped on the MCS+ keypad according to function, as depicted in
the following illustration:

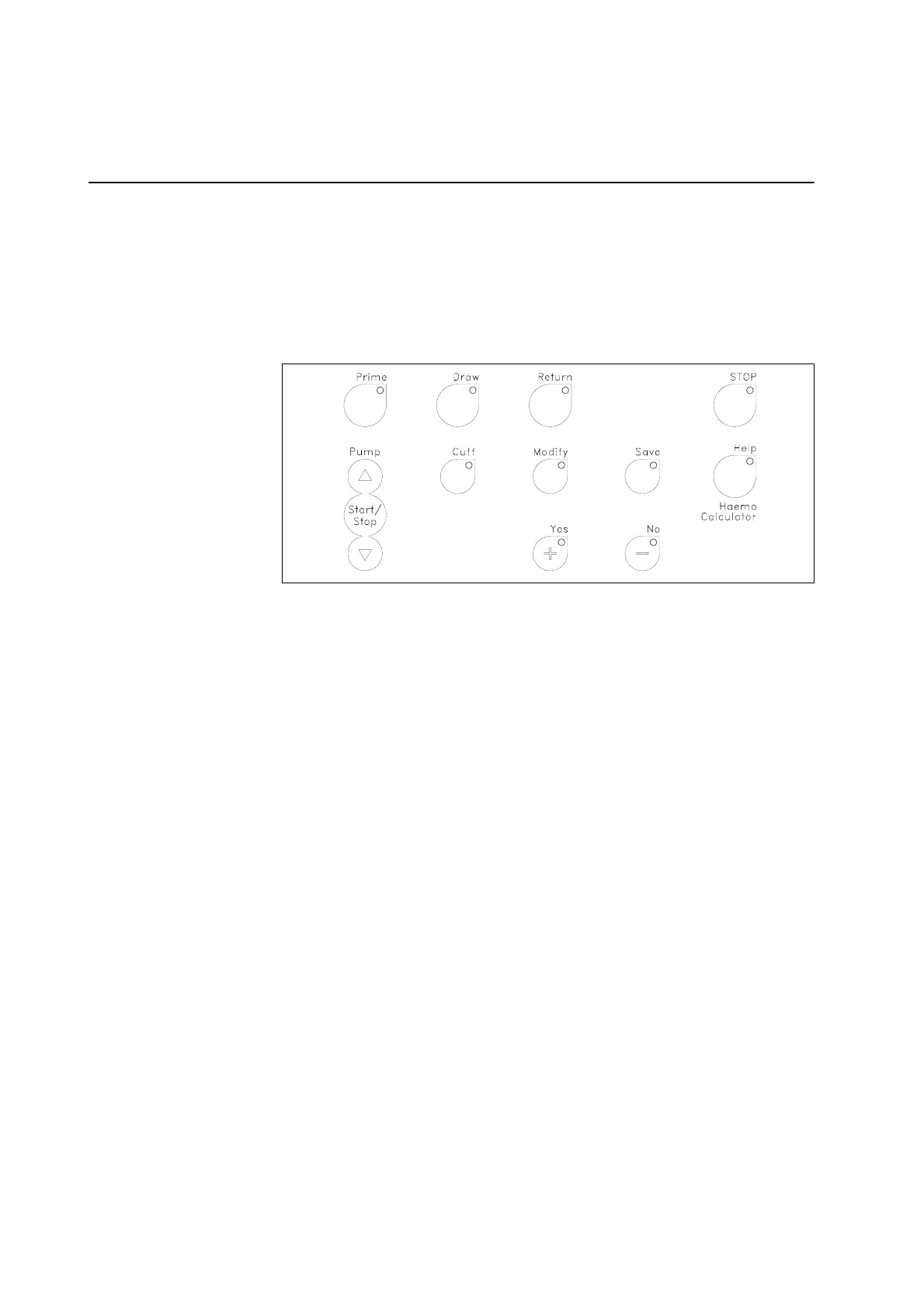

Figure 3-4, MCS+ keypad
Mode control
keys
Prime key
This key is used to initiate the PRIME mode of operation. The PRIME mode will
bring anticoagulant solution from the anticoagulant line tubing into the donor-
line tubing.
Draw key
This key is used to initiate the first DRAW cycle, or resume the DRAW mode of
operation. The DRAW mode will move anticoagulated whole blood from the
donor through the donor-line tubing into the centrifuge bowl, where apheresis
will be initiated.
Return key
This key is used to initiate, or resume, the RETURN mode of operation. During
RETURN, the MCS+ device will return the non-selected blood components in the
disposable set to the donor. During standard protocol function, a RETURN cycle
will automatically be initiated. However, the operator can press this key if it
becomes necessary to return of the contents of the bowl to the donor before the
end of a cycle.
