Describing the MCS+ Control Panel 3-5
P/N 85213-30, Manual revision: B
Understanding
an operating
mode
An MCS+ mode can be described as the operating state of the device during
specific phases of the apheresis process. Each MCS+ protocol will:
! Prepare the disposable set with AC solution during PRIME.
! Collect donor whole blood, mix the whole blood with AC solution and
spin the anticoagulated blood in the centrifuge bowl, then selectively re-
move the desired components during DRAW.
! Re-infuse the non-collected blood components to the donor during RE-
TURN.
Note: Certain MCS+ protocols, designed to collect components such as platelets,
will contain sub states which are part of the DRAW mode, referred to as SURGE
and DWELL.
Defining the
screen icons
These symbols, located on the left side of the center screen area, provide a picto-
rial representation of the MCS+ mode in progress.

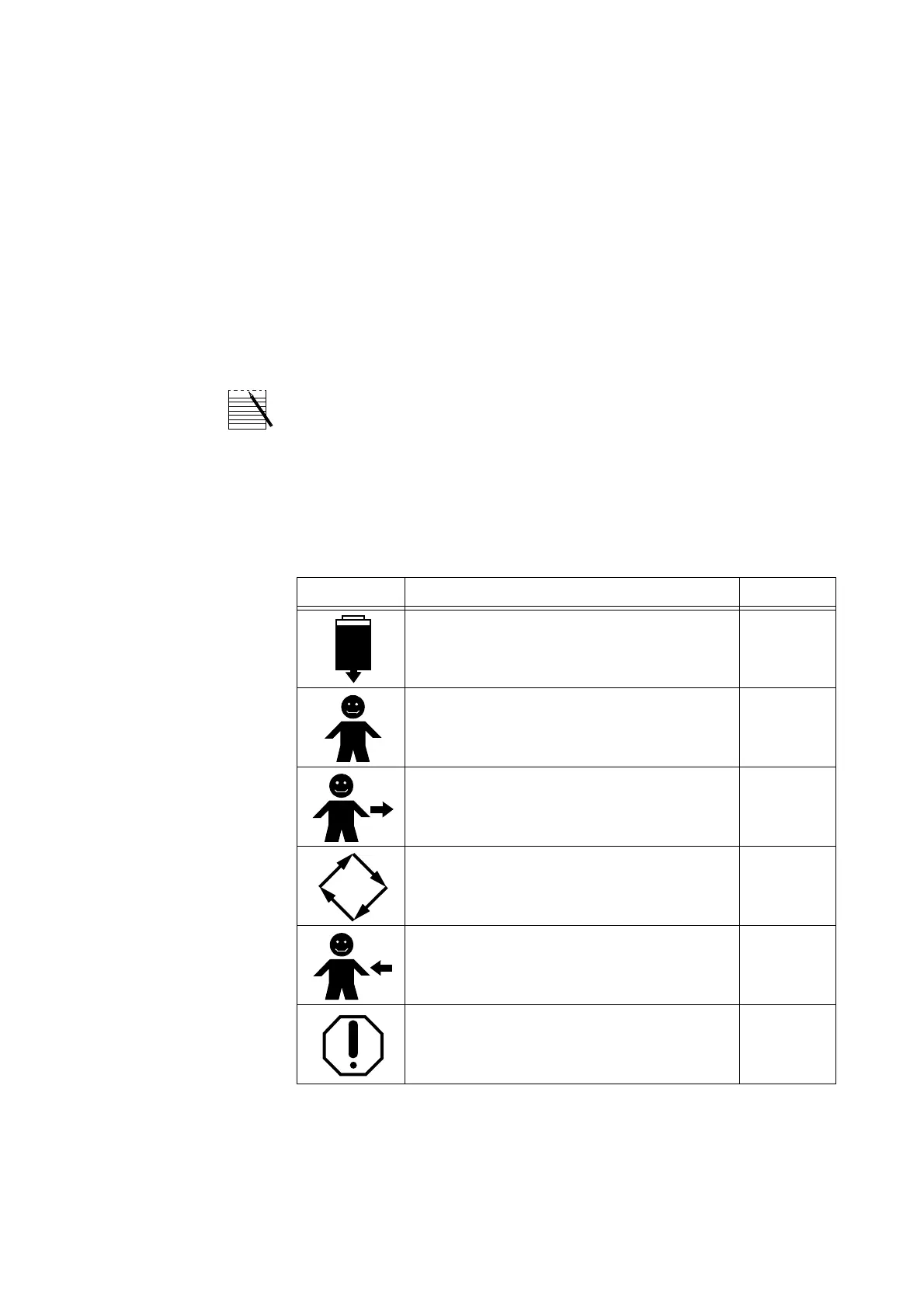

Table 3-1, Display screen icons
Screen icons Explanation State
Displayed during AC and saline solution
priming sequences.
PRIME
Displayed prior to initiating the first cycle.
Displayed when the device is in a non-active
state, ready for an operator command.
READY
Displayed as donor/patient blood is being
drawn into the centrifuge bowl.
DRAW
Displayed as collected plasma is being
recirculated through the disposable set.
DWELL/
SURGE
(sub states)
Displayed as blood components/fluids are
being returned to the donor/patient.
RETURN
Displayed on all operator warning screens.
Displayed when the centrifuge is stopping.
NOTICE
