Describing the MCS+ Control Panel 3-9
P/N 85213-30, Manual revision: B
This section of the MCS+ keypad consists of:
! Four keys which enable the operator to modify and save specific MCS+
protocol parameters.
! A Help/Haemo Calculator key which provides the operator with access to
the Haemo Calculator screen and the Haemo Update screen.

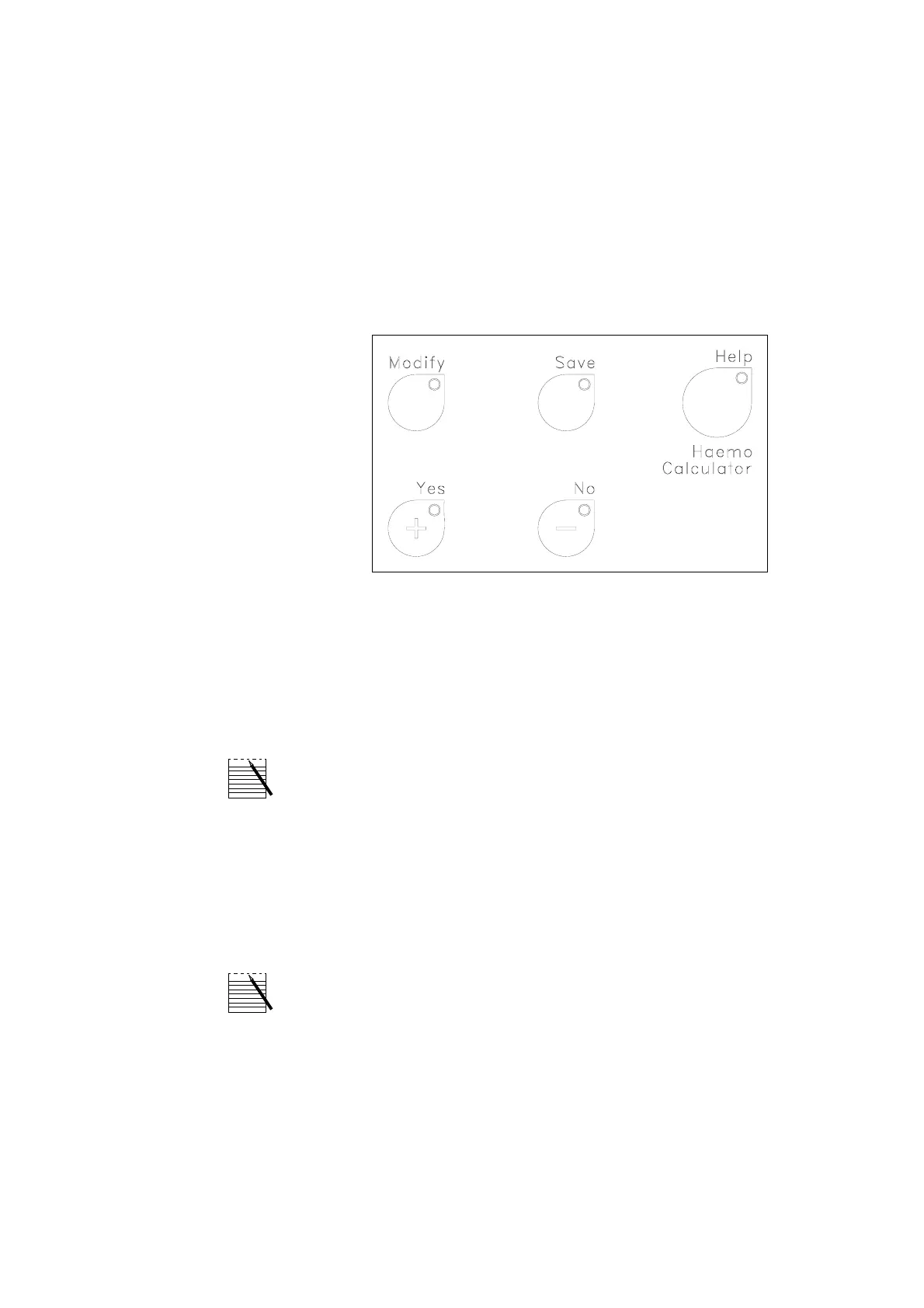

Figure 3-9, MCS+ programming keys
Modify program key
This key is used to view the existing parameters and can be pressed during any
of the operating modes. Each time that this key is pressed, a different program
parameter will be highlighted on the screen, along with the currently selected
value for that parameter.
Note: This key can be used to access the Modify Parameter screen and adjust the
program parameters, or to scroll through the parameters when listed on the
Haemo Calculator screen.
Save program key
The operator can use this key to retain all modified values in the MCS+ memory.
If this key is pressed after any modification, the selected value will become the
new system value until any further modification is made during a subsequent
MCS+ collection procedure.
Note: Once the program parameters have been consulted and/or modified, the
operator can return to the screen depicting the current mode of operation by
pressing the respective MODE key, without interruption to the collection proce-
dure.
