Describing the MCS+ Disposable Collection Material 4-5
P/N 85213-30, Manual revision: B
Injection port
This branch of the three-way connector should only be used for the emergency
administration of medication or fluids, as the “closed” system can be altered.
Donor-line sample pouch
This element branches from the three-way connector and permits the operator to
collect a donor/patient blood sample without the need for a separate venipunc-
ture.
Caution: The sample pouch tubing must clamped, then sealed before drawing the
sample, in order to isolate it from the rest of the disposable tubing and maintain
a “closed” system.
Blood filter/chamber
The 170 µm blood filter is contained in a chamber located between the needle
adapter and the disposable bowl. The filter will eliminate aggregates; the
chamber will serve as a reservoir for blood being drawn into the bowl.
Dual-pump manifold and tubing
This element has a dual function. It will secure the blood-line tubing as it is
loaded onto the Blood pump and the Transfer pump, as well as during MCS+
operation. It identifies the type of disposable set being installed when the infor-
mation printed on the manifold is scanned by identification window.
Note: This provides a safety feature for the operator. It is not possible to install a
disposable set containing a dual-pump manifold which does not correspond with
the inserted MCS+ protocol card, without receiving a NOTICE message.

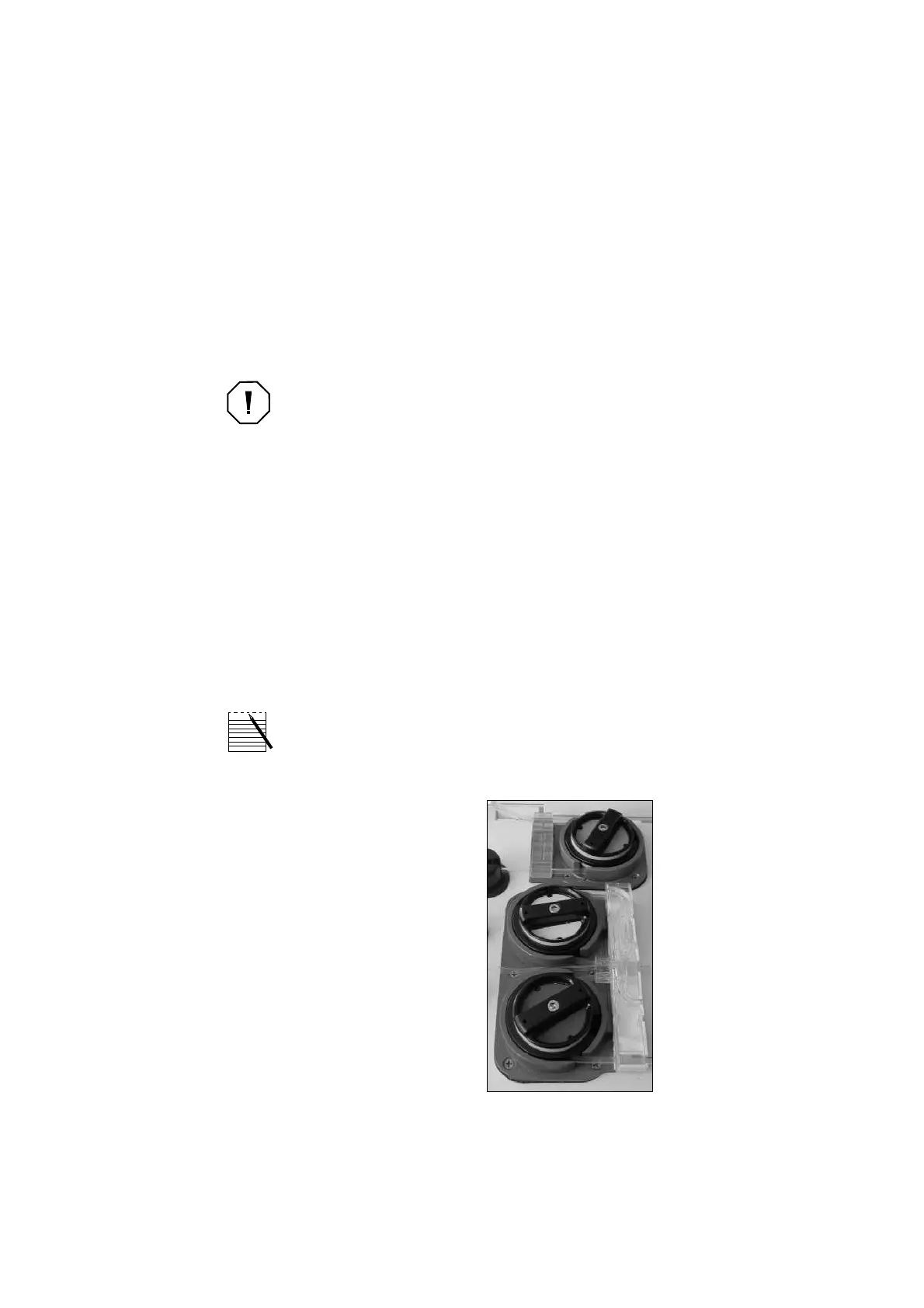

Figure 4-4, Examples of MCS+ pump manifolds
