4-12
Describing th
e MCS+ Disposable
Collection Mat
erial
P/N 85213-30, Manual
revision: B

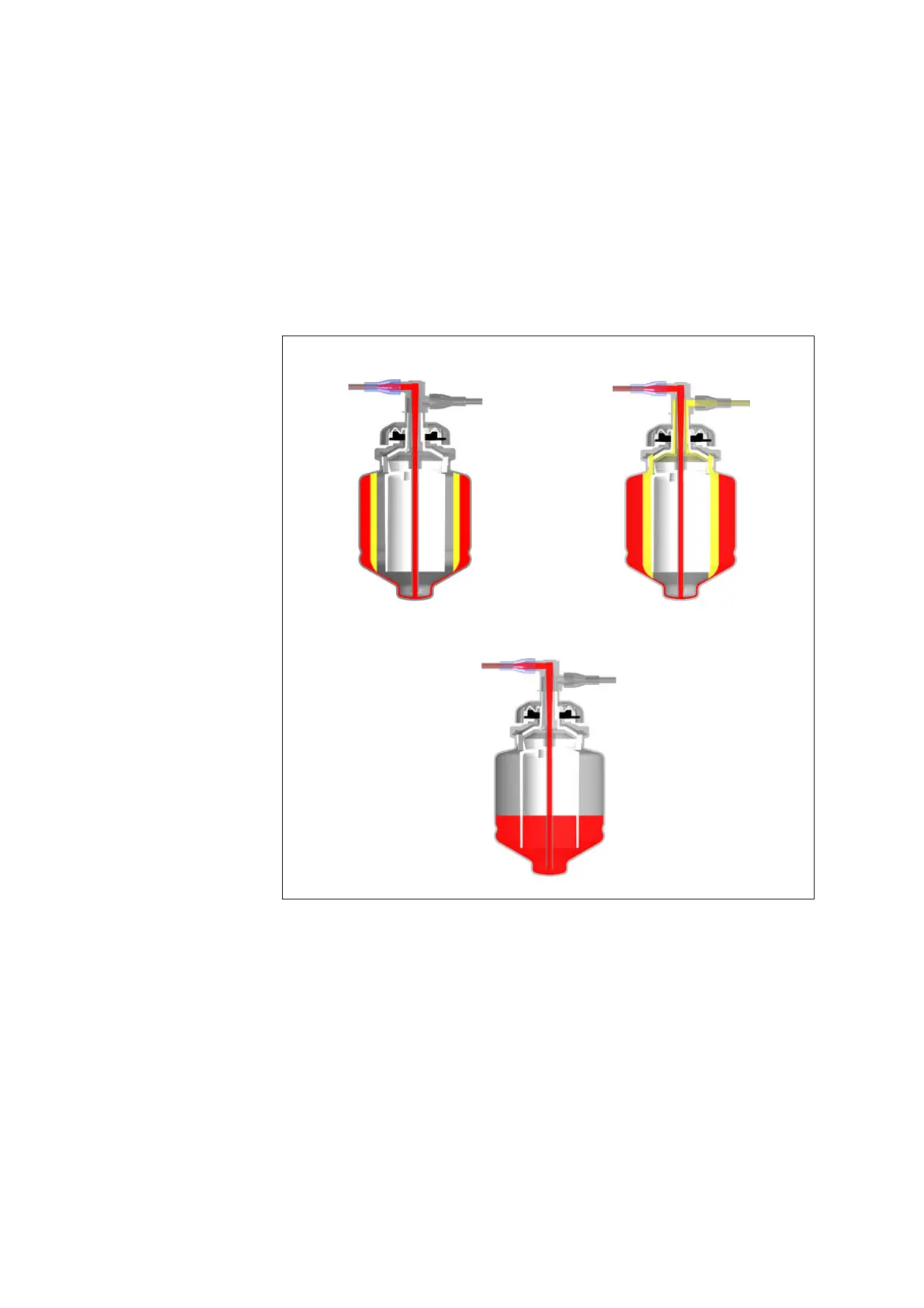

Figure 4-9, Blow molded bowl operation
A.
Filling the bo
wl
1.
Anticoagulated whole
blood
2.
Air
B.
Collecting plasma
1.
Anticoagulated whole
blood
2.
Plasma
C.
Returning
components
1.
Non-collected blood
components
2.
Air
1.
2.
A.
1.
2.
B.
1.
2.
C.
69
