Configuration
Communication
8.1 Communication
The Communication set-up menu is used to edit the settings for RS-485 communication.

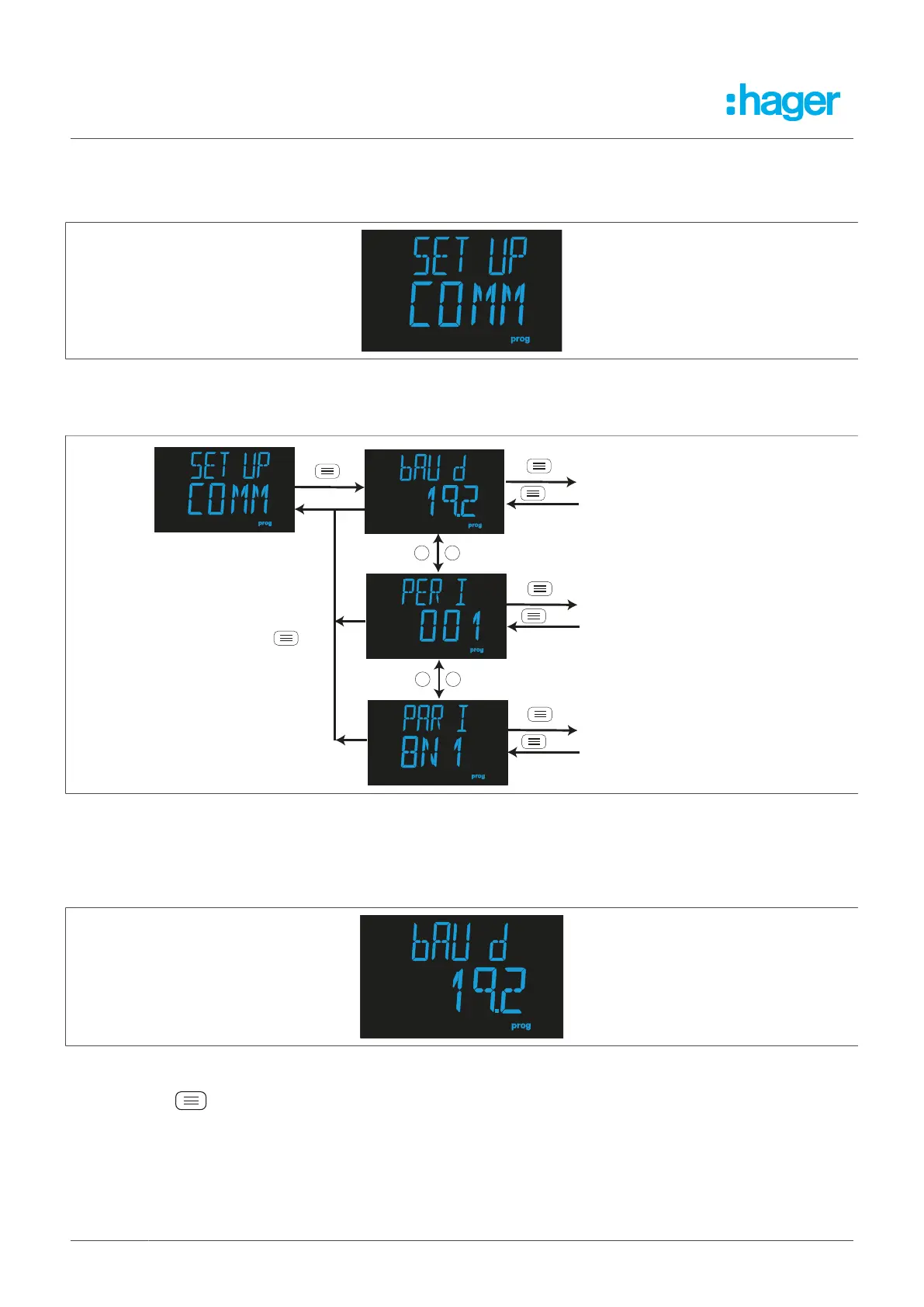

Fig. 28: Communication set-up menu
The Transmission speed, Peripheral device no. and Parity parameters can be configured here.
>
>
>
<
>
<
>
>
3s
3s
3s
3s
Fig. 29: Communication menu for RS-485 communication
8.1.1 Transmission speed
The transmission speed for the RS-485 interface can be set via the baud rate.
Fig. 30: Baud rate
l
Press the button to edit the baud rate.
The programming value flashes.
28 Fehlerstromschutz-Relais
Transmission speed
Peripheral device no.
Data bits / Parity / stop bits
