Appendix
Dimensions
Dimensions for HR72x
b
Ø
d
f
56
Ø6.5
a
e
c
41

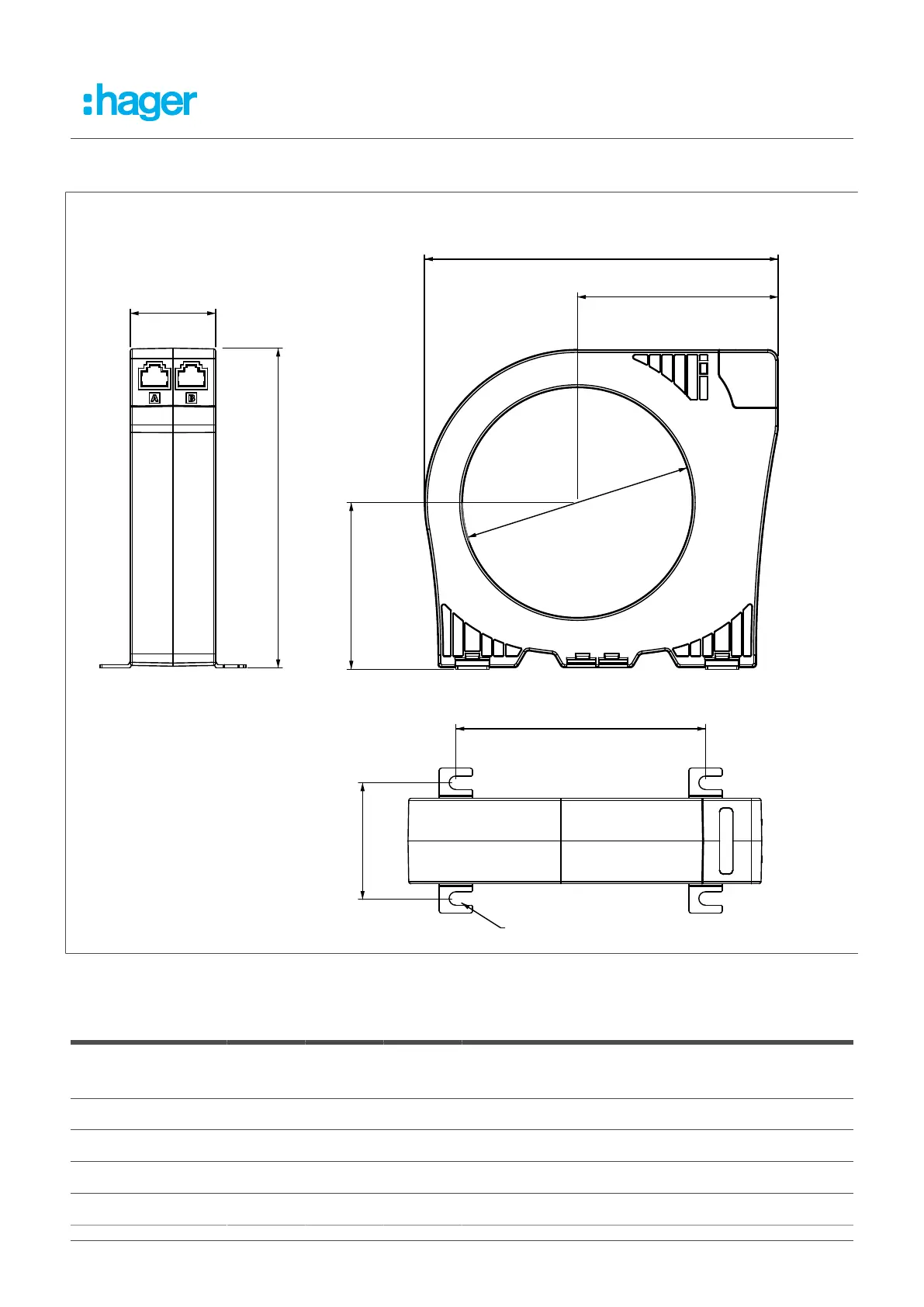

Fig. 48: Dimensions for HR72x
Device dimensions for HR72x
a b c d e f
Copper cable
(3P+N)
HR721 80 97 61.5 35.5 44.5 54 4x25mm
2
HR722 98.5 118 72 55.5 52.5 81.5 4x70mm
2
HR723 123.5 140 81.5 80.5 65 101.5 4x120mm
2
HR724 153.5 170 96.5 110.5 80 120 4x240mm
2
Fehlerstromschutz-Relais 47
