Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
10
Issue 2010-12
Rev.
Ref1012S008V0
Chapter 3 Disassembly and Installation

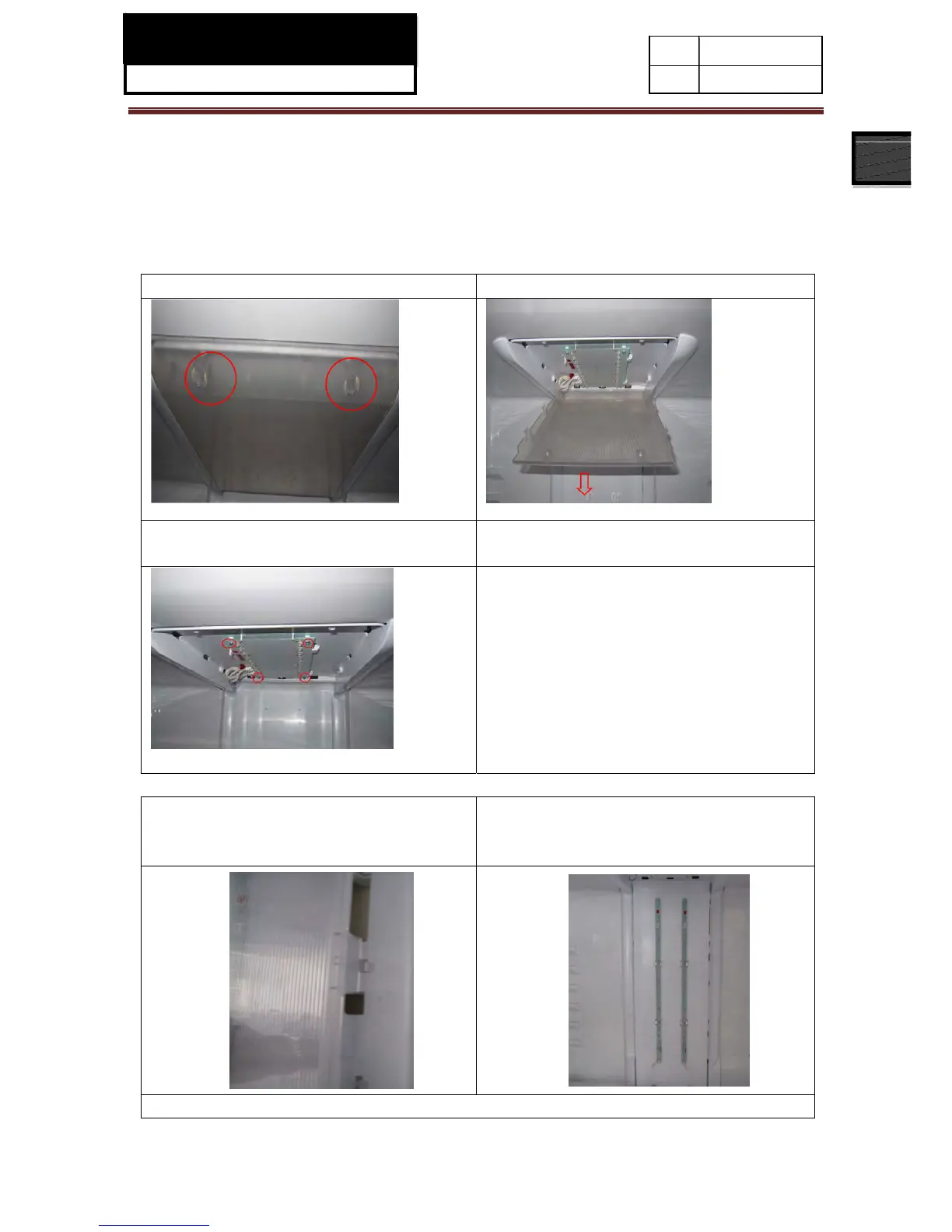

3-1. Disassemble the lamp of fridge chamber
The fridge lamp is LED type with low energy consumption and long operation life. The replacement steps are as
follows:
(A
) Replace the top lamp panel of fridge chamber:
(1) Remove two fixing screws of top lamp cover. (2) Remove the top lamp cover.
(3) Disconnect the connecting terminal, then
remove the four fixing crews of lamp panel.
(4) During installation, carry out the operation in
the reverse order
(B) Replace the back lamp of fridge chamber:
(1) Remove the top lamp cover firstly. then remove
the back lamp cover (back light cover is mounted
on the back by clip hook structure)
(2) Remove the lamp panels. There are two back
lamp panel. Each lamp panel is fixed by fixing
screw and clip hook structure.
(3) During installation, carry out the operation in the reverse order

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
