Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
24
Issue 2010-12
Rev.
Ref1012S008V0
(L) will be off and the locked status is exited.
Caution: In locked status, the functional controls of refrigerating temperature, freezing temperature,
Holiday, Fuzzy, Super Cooling and Super Freezing are not available.
4-7. Freezing temperature setting

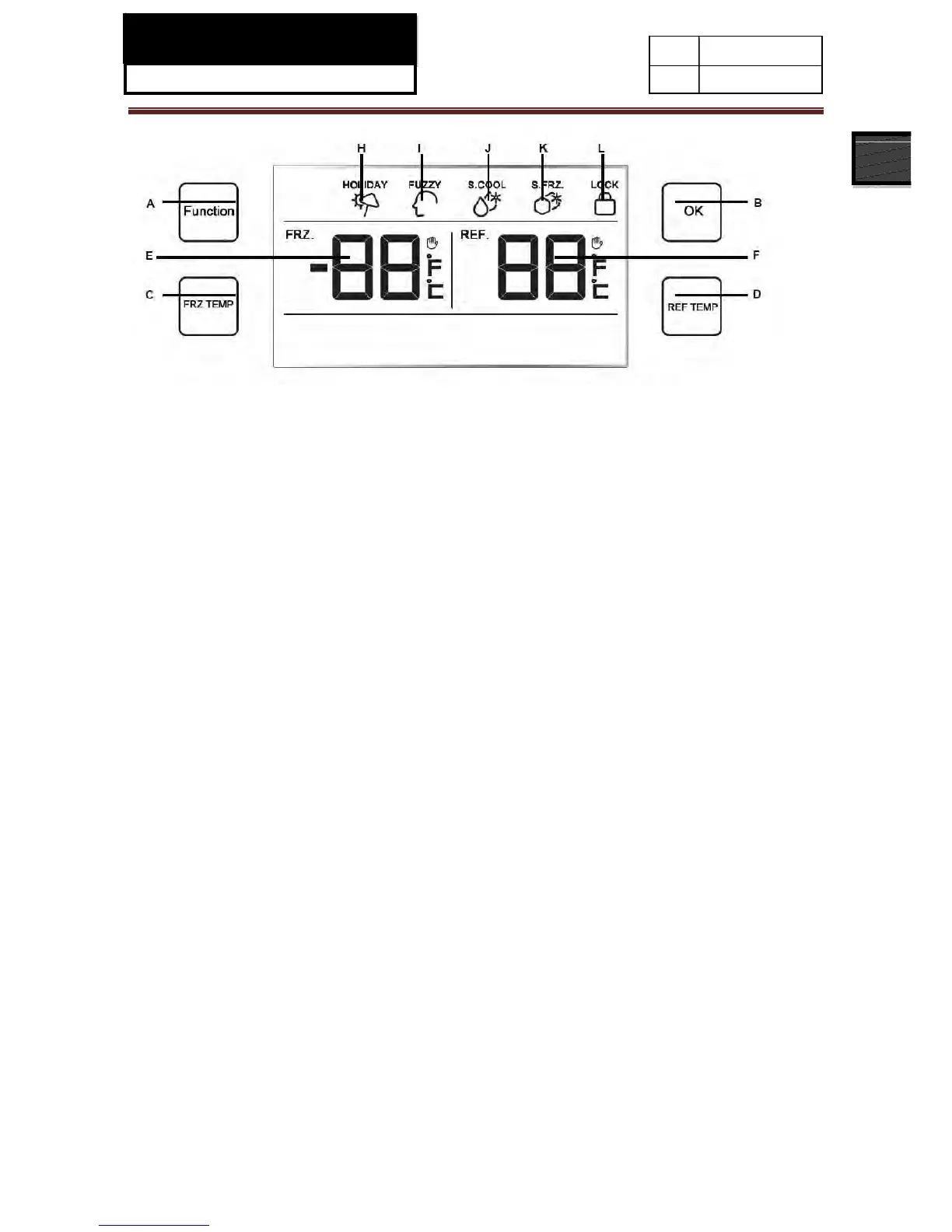

In the unlocked status, press Freezing Temperature Control Button (C), the original freezing
chamber setting temperature start to blink. Enter freezing chamber temperature setting status,
since then for each single press of this button, the freezing chamber setting temperature is
displayed in cyclic form by -14℃, -15℃, -16℃, -17℃, -18℃, -19℃, -20℃, -21℃, -22℃, if no
button-pressing operation is initialed over 5 seconds, the blinking will stop and confirm the current
temperature setting value.
4-8. Fridge temperature setting
In the unlocked status, press Fridge Temperature Control Button (D), the original freezing
chamber setting temperature start to blink. Enter fridge chamber temperature setting status, since
then for each single press of this button, the fridge chamber setting temperature is displayed in
cyclic form by 09℃, 08℃, 07℃, 06℃, 05℃, 04℃, 03℃, 02℃, 01℃, if no button-pressing
operation is initialed over 5 seconds, the blinking will stop and confirm the current temperature
setting value.
4-9. Open-door alarm function
When any door is left open for more than 60 seconds or not closed tightly, the refrigerator will sound
alarm buzzer at an interval 30 seconds to remind user to close the door.
4-10. Energy-saving display control function
30 seconds after button-pressing operation, display screen backlight and button light will be off
automatically, this is in order to save power consumption. When pressing any key or opening any
door, it will resume display screen backlight. The corresponding press-button light will activate from
button-pressing operation

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
