Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
17
Issue 2010-12
Rev.
Ref1012S008V0
(5) During door installation, carry out the operation in the reverse order. Do not forget to fix the screws
between the slideway support bracket and slideway.

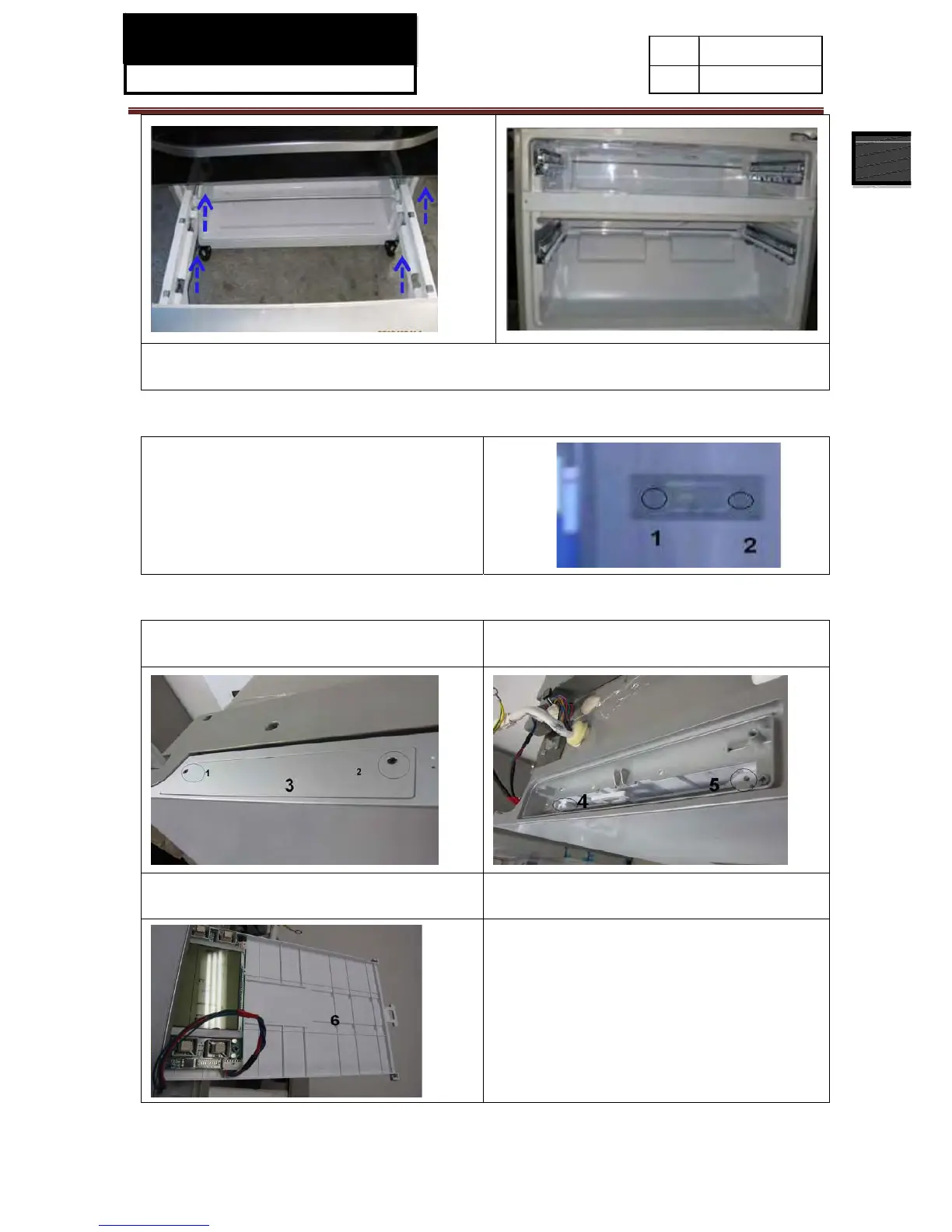

3-5. Disassemble the display panel of left fridge door
Operation for HB21FSAA:
Use sucker to suck the display board at location
1 and 2 to remove it from fridge door.
Operation for HB21FGRAA /HB21FGBAA / HB21FGWAA:
(1) Use screwdriver to detach the screws at
location 1 and 2. Then remove the cover 3.
(2) Use screwdriver to detach the screws at
location 4 and 5.
(3) Pull out the panel bracket 6 upward, then
can take down the display panel
(4) During installation, carry out operation in the
reverse order. (Note connector when operation.)
/

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
