Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
11
Issue 2010-12
Rev.
Ref1012S008V0

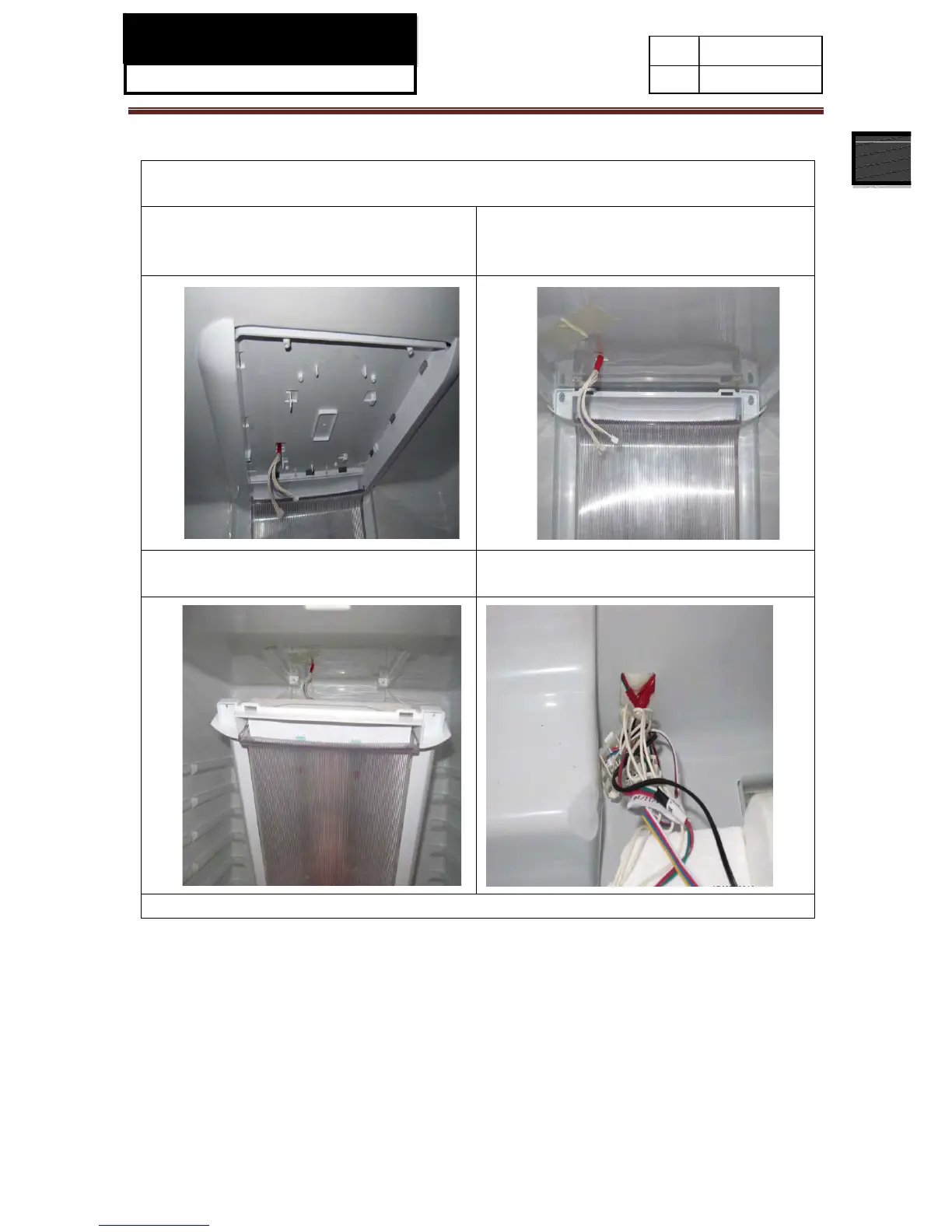

3-2. Disassemble the air duct of fridge chamber
(1) Remove the top lamp cover and top lamp panel firstly according to above steps.
(2) Remove the four fixing screws of lamp panel
support, then remove the lamp panel support.
(3) After the top lamp panel support is removed,
Detach two screws fixing back air duct of fridge
chamber.
(4) Pull out the air duct assembly of fridge
chamber.
(5) Disconnect the lower wire terminals of the
air duct , then detach the fridge air duct.
(6) During installation, carry out the operation in the reverse order

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
