8-3. How to display error code
When this refrigerator is in malfunction, the appliance can not display error code automatically.

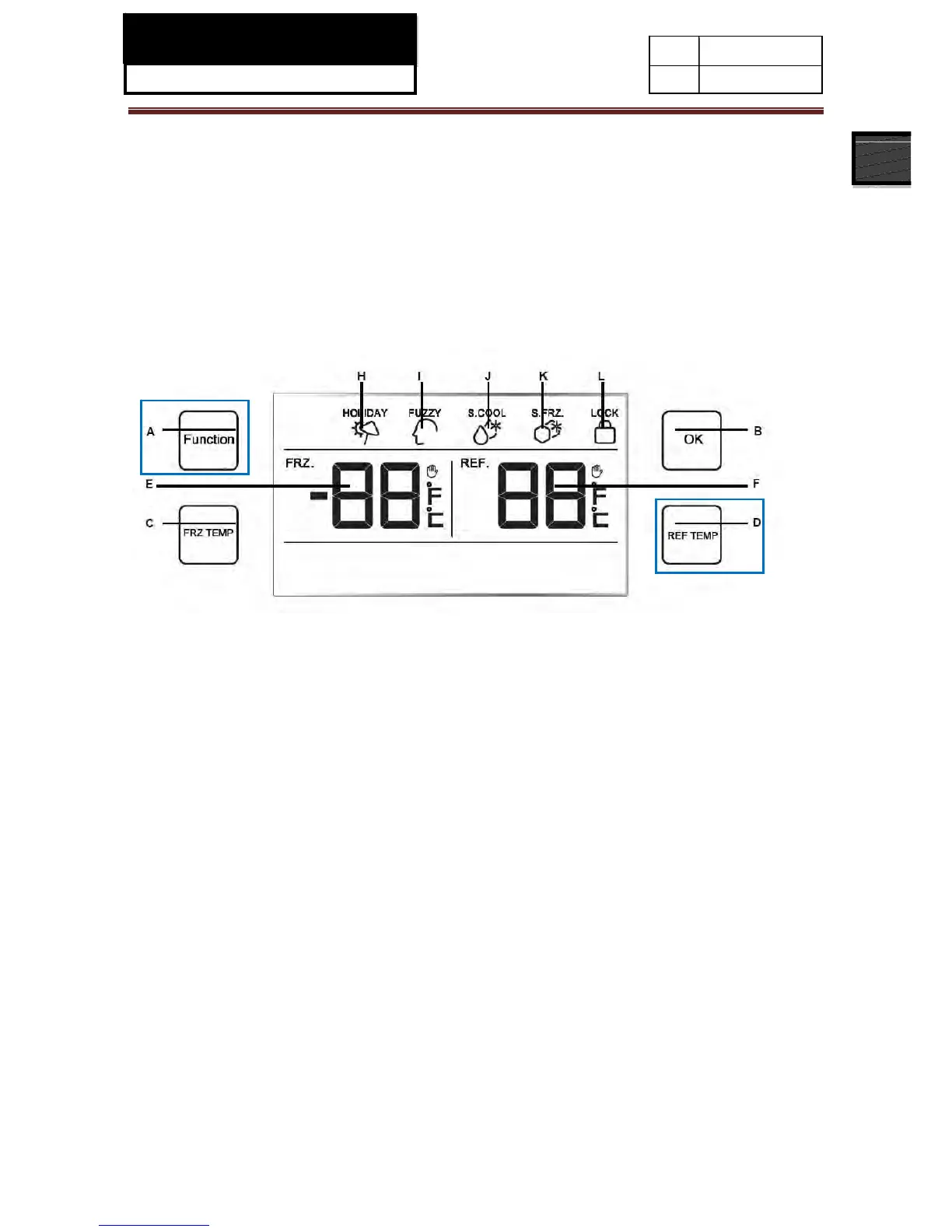

Under Lock status, press Function button (A) and REF TEMP button (D) at the same time for 3
seconds, after the buzzer sounds, the error code is displayed.
If there are several error codes displayed at a time, the error code of high priority will be displayed
priority. Press the key Function (A) to display next error code and repeat the operation for circulating
display.
Press Function button (A) and REF TEMP button (D) at the same time for 3 seconds again to exit the
error code display
8-4 Self-test function
(1) Under LOCK status, finish the following operation within 5 seconds: press four keys one by one,
Function (A) - REF TEMP (D) - OK (B)- FRZ TEMP (C) and then press key Function (A) to enter Test1
mode, the products will enter compulsive starting mode.
(2) Press key Function (A) under Test1 mode for 3 seconds to enter Test2 mode, then the product will
enter forced defrosting mode.
(3) Press key Function (A) under Test2 mode for 3 seconds to enter Test3 mode, then the product will
enter assistant heater inspection mode.
(4) Press key Function (A) under Test3 mode for 3 seconds to enter Test4 mode (For future use, no
function define.)
(5) Under TEST4 mode, press key Function (A) for 3 seconds, the refrigerator will quit Test mode and
back to normal.
The following table is the detail about refrigerator self-test function:

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
