SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
30
Issue 2010-12
Rev.
Ref1012S008V0

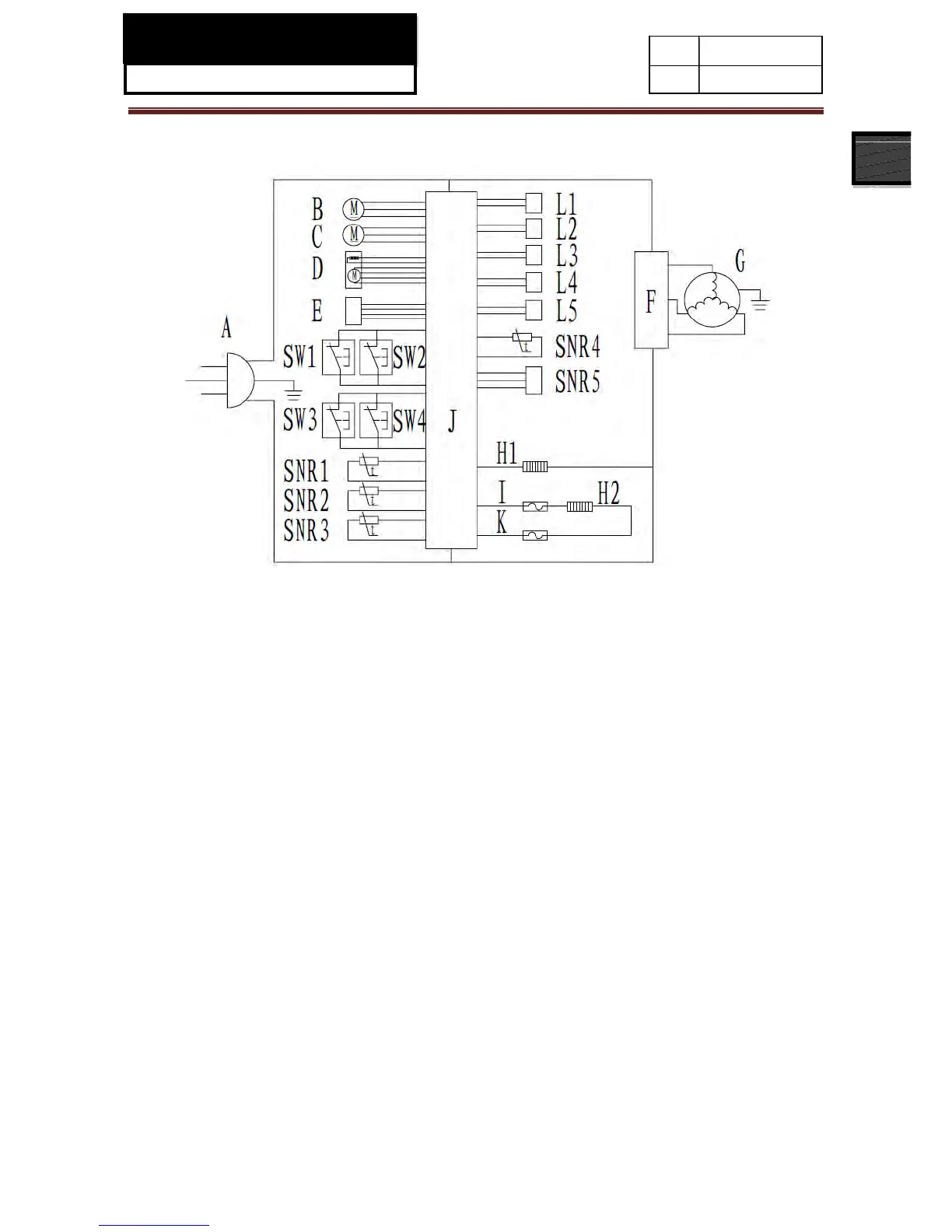

7-2. Brief principle diagram
A. Power Plug B. Freezer fan C. Cooling fan D. Damper E. Display board
SW1. Fridge lamp switch 1 SW2. Fridge lamp switch 2 SW3. Freezer lamp switch 1
SW4. Freezer lamp switch 2 SNR1.Fridge sensor SNR2.Freezer sensor
SNR3.Defrost sensor SNR4.Ambient sensor SNR5.Humidity sensor
L1.Fridge lamp 1 L2.Fridge lamp 2 L3.Fridge lamp 3
L4.Freezer lamp 1 L5.Freezer lamp 2 F. Inverter board
G. Compressor I. Fuse 1 J. Control board
K. Fuse 2 H1.Vertical girder heater H2.Defrost heater

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
