Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
6
Issue 2010-12
Rev.
Ref1012S008V0

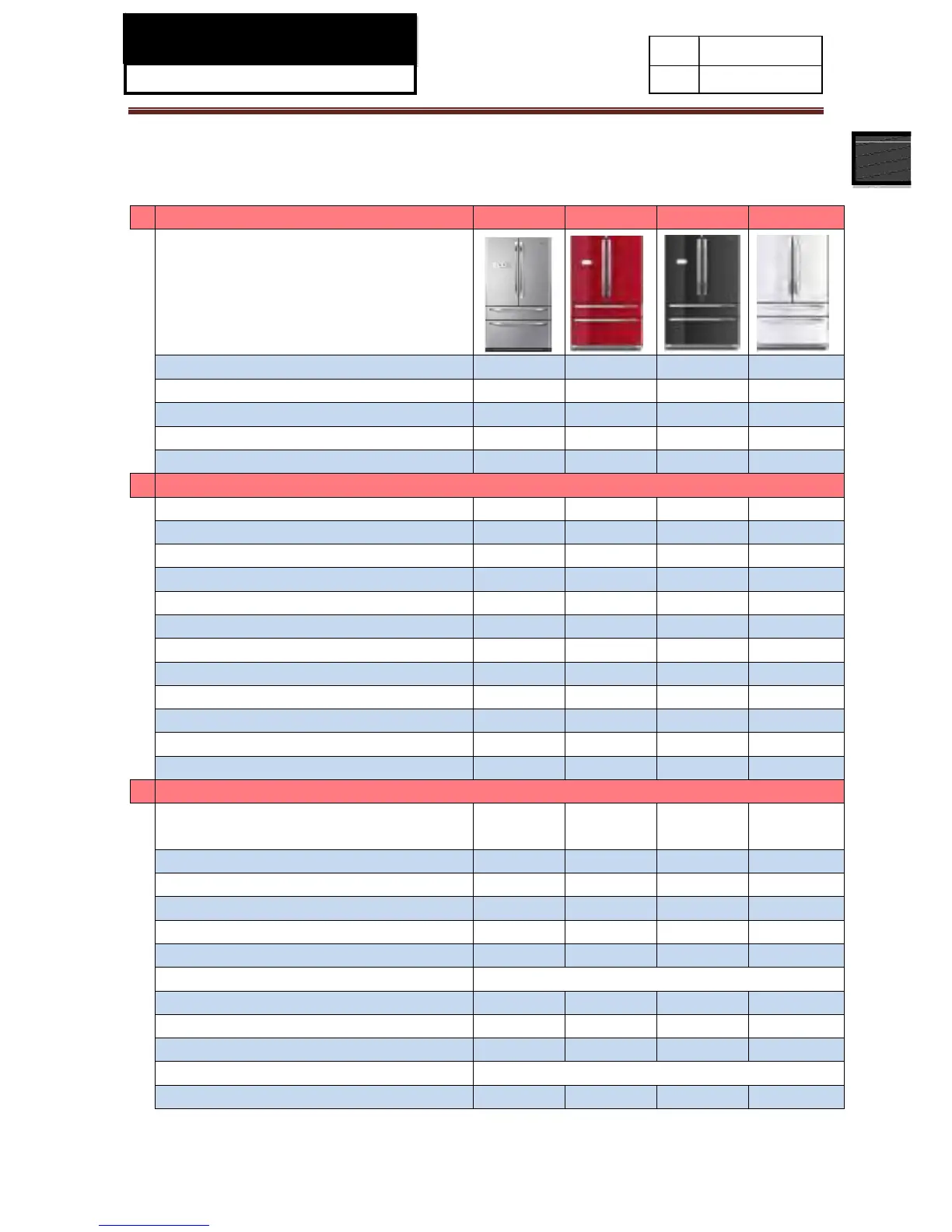

Chapter 2 Product Feature
2-1. Specifications
1
Model
HB21FSSAA HB21FGRAA HB21FGBAA HB21FGWAA
Sketch
Product description (Refrigerator/Freezer) Refrigerator Refrigerator Refrigerator Refrigerator
Type of appliance (FS= freestanding/BI= built-in) FS FS FS FS
Type of cooling system(NF=no frost/ S=static) NF NF NF NF
Climate class* SN N ST T SN N ST T SN N ST T SN N ST T
Freezer compartment / Star rating 4* 4* 4* 4*
2
Key features
Gross capacity 635L 635L 635L 635L
Total net capacity 543L 543L 543L 543L
Net capacity refrigerator compartment 394L 394L 394L 394L
Net capacity freezer compartment /ice compartment 149L 149L 149L 149L
Freezing capacity 10kg 10kg 10kg 10kg
Energy consumption / year 432kWh 432kWh 432kWh 432kWh
Max storage time at breakdown Freezer 720Min 720Min 720Min 720Min
Defrosting (M=manual A=automatic) A A A A
Frost free system yes yes yes yes
Defrost water outlet yes yes yes yes
Air circulating ventilator yes yes yes yes
Kind of coolant (R134a/R600a) R600a/ 75g R600a/ 75g R600a/ 75g R600a/ 75g
3
Technical data
Voltage / frequency
220-240~V/
50Hz
220-240~V/
50Hz
220-240~V/
50Hz
220-240~V/
50Hz
Protection calss I I I I
Input power 150 W 150 W 150 W 150 W
Rated current 1.5 A 1.5 A 1.5 A 1.5 A
Defrost watt 180 W 180 W 180 W 180 W
Max power of lamp 8 W 8 W 8 W 8 W
Temperature range (from>to)
Refrigerator 2-10°C 2-10°C 2-10°C 2-10°C
Freezer -16 ~-26°C
-16 ~-26°C
-16 ~-26°C -16 ~-26°C
Refrigerating capacity 10kg/24h 10kg/24h 10kg/24h 10kg/24h
Features:
Cooling system: K=Compressor / A=Absorption K K K K

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
