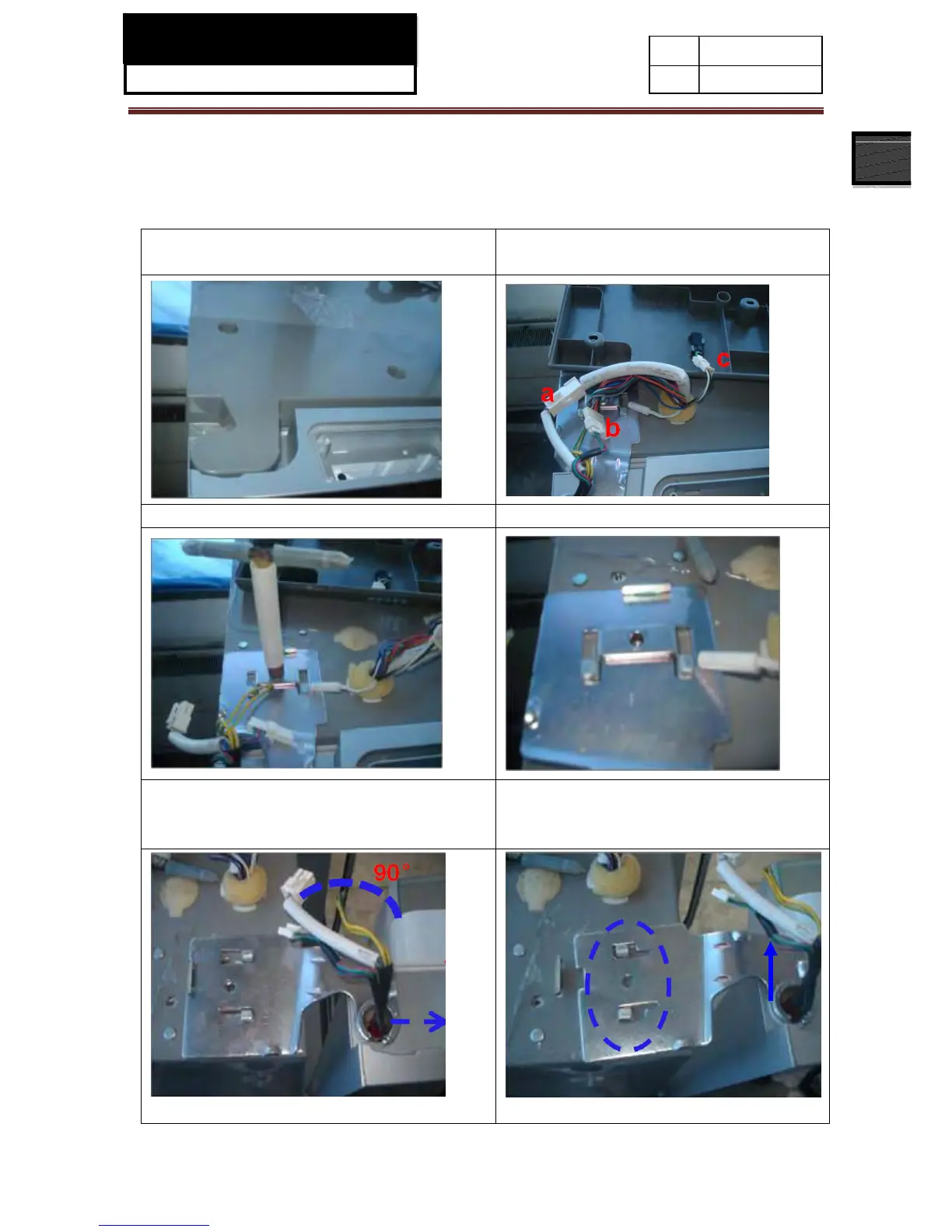

3-3. Disassemble the fridge door
3-3-1. Disassemble the fridge door
Take the left fridge door for example in the following steps introduction. (Disassemble the right fridge door
can refer to the following similar operation. Fridge door installation can be operated in the reverse order.)
(1) Remove the fixing screws of upper hinge cover,
then remove the upper hinge cover.
(2) Disconnect cable connectors (a, b) and
humidity sensor terminal (c).
(3) Detach the fixing screws for upper hinge. (4) Detach the U type fixing part for upper hinge.
(5) Open the fridge door to 90°angle, now the
door is vertical to the cabinet, then pull the door
out in the arrow direction.
（6）When the locating block off the upper hinge,
stop pulling the door outward, then lift the door
upward to remove it from refrigerator.
