Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
18
Issue 2010-12
Rev.
Ref1012S008V0

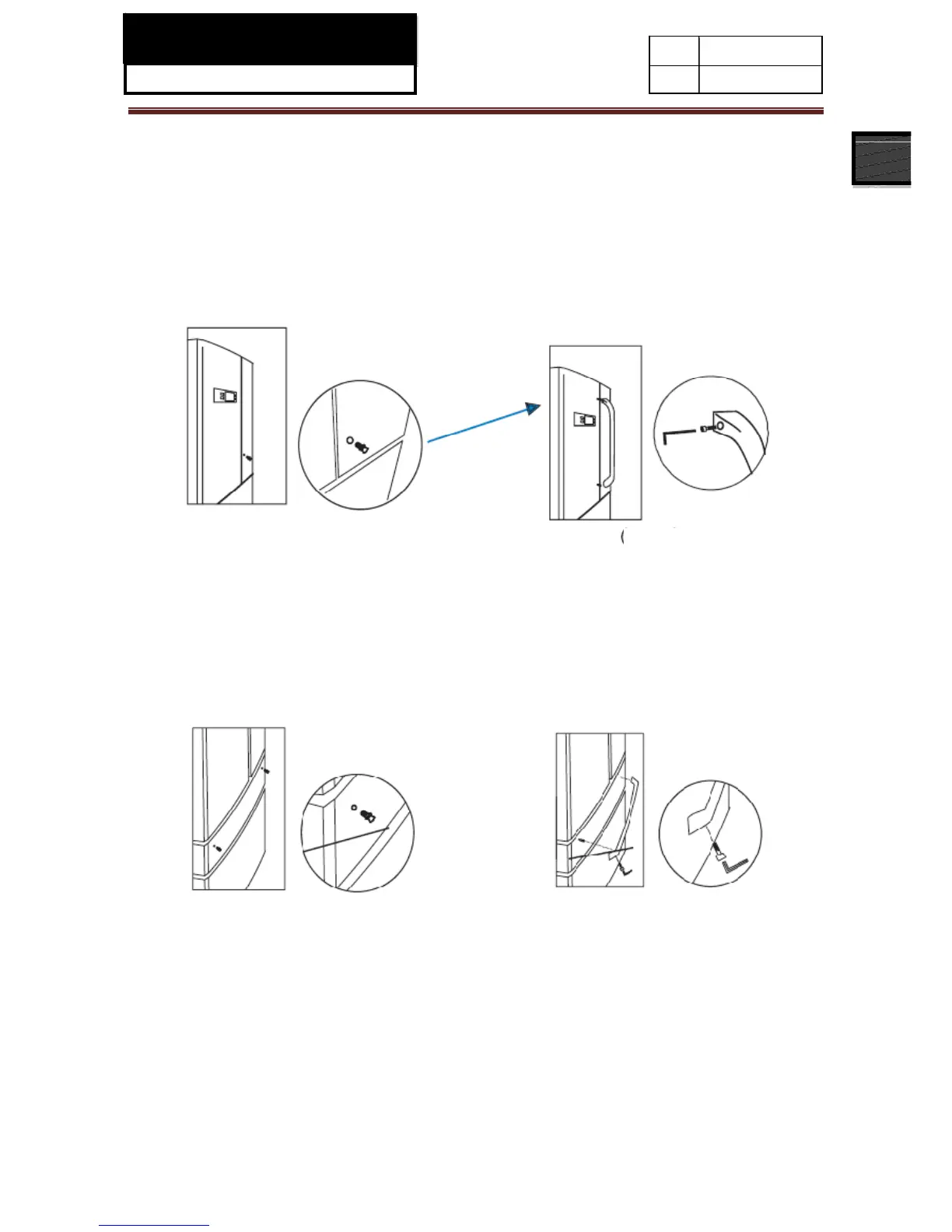

3-6. Assemble the handle
(1) Assemble the fridge door handle
Firstly, insert the handle connectors into the hole of fridge door (Fig. 1).
Then take out the fridge handle, align the hole of handle head to the connector, install the handle to
the connector. Use inner-hexagon to fix the side fixing screws on the handle head tightly (Fig. 2).
The handle can be dismantled by reverse steps.
(2)Assemble the freezing door handle
Firstly, insert the handle connectors into the hole of freezing door (Fig. 3).
Then take out the freezing handle, align the hole of handle head to the connector, install the handle
to the connector. Use inner-hexagon to fix the side fixing screws on the handle head tightly (Fig. 4).
The handle can be dismantled by reverse steps.
(Fig. 3) (Fig. 4)
3-7. Defrosting system disassembly and inspection
STEP-1: After take out all drawers, lift the air passage of freezer; take down the cover of freezer air
passage. Please pay attention to not break the wire of fan motor, and then disconnect the fan
connector.
(Fig. 1)
(Fig. 2)

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
