Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
13
Issue 2010-12
Rev.
Ref1012S008V0

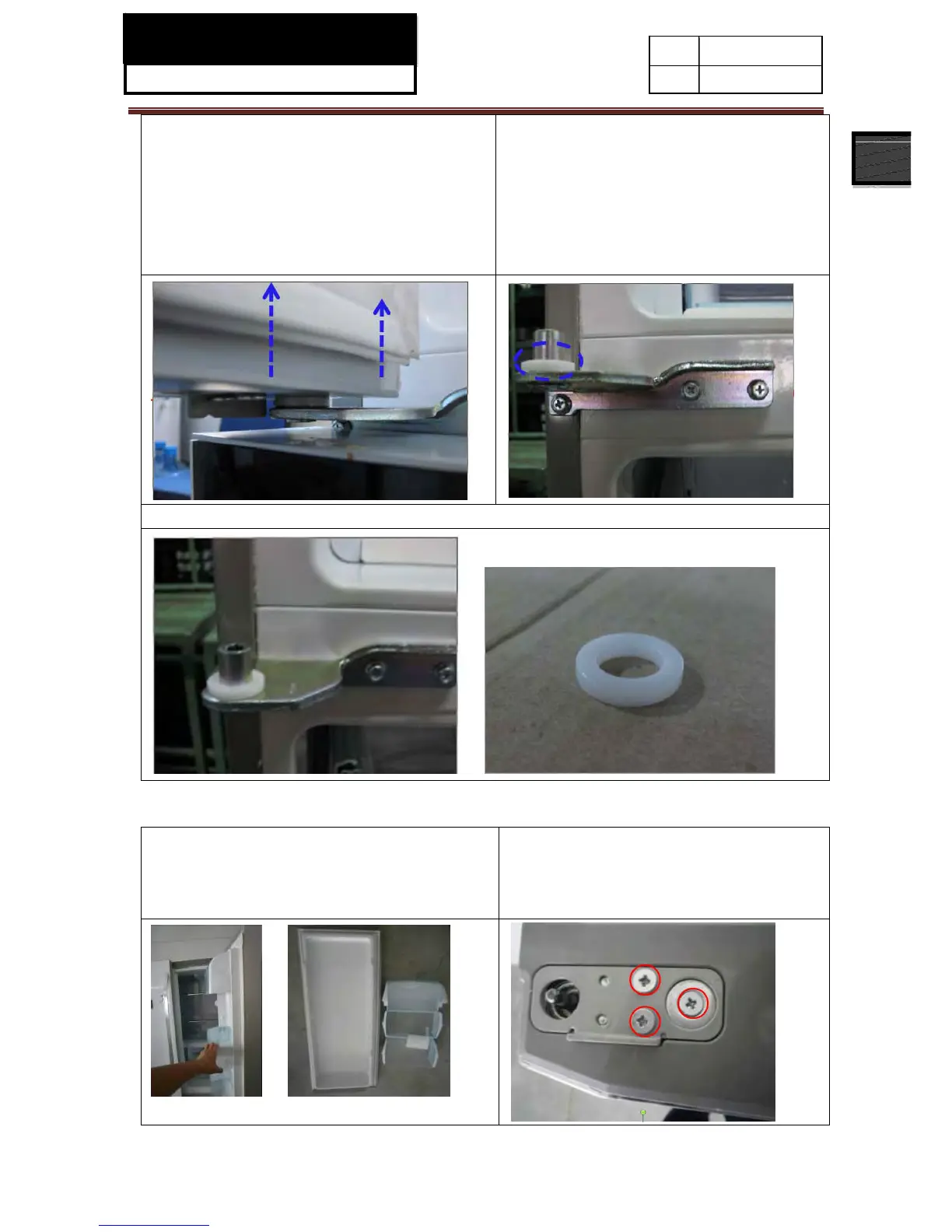

(7) Hold the side of fridge door using one hand, hold
the bottom of fridge door using another hand, then
keep the door and the cabinet in 90° degree angle
(that is in vertical direction — must assure this
point). Then raise the fridge door off the middle
hinge, and put the door horizontally on the protective
pad.
(8)
Take off the anti-friction ring (the white ring in
following picture).
(9) Please note to put all parts in order and ensure not lost any part, especially the white anti-friction ring.
3-3-2. Disassemble the automatic door closers of fridge door
(1) Take off fridge door according to above operation
steps, take down bottle holders and upper hinge from
then fridge door, then remove fridge door from the
refrigerator.
(2) Reverse the fridge door to keep the bottom to
upward, then detach the three fixing screws as
shown.

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
