Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
14
Issue 2010-12
Rev.
Ref1012S008V0

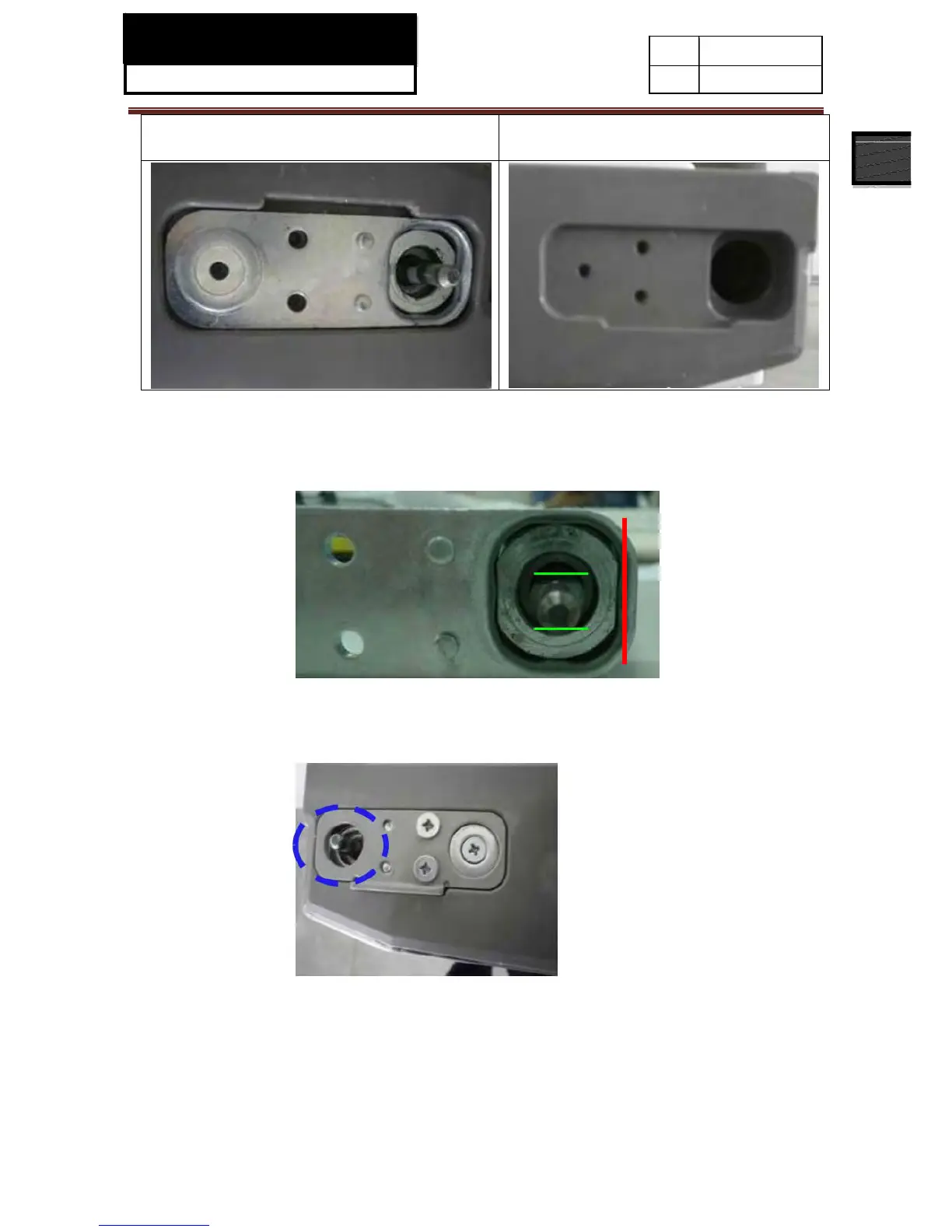

(3) Take down the door stopper. (4) Draw out the automatic door closer from the
fridge door.
Caution in operation：
1. Must ensure the fridge door and cabinet in 90°degree when disassemble or install the door !
2. When reinstall the automatic door closer, operator must according to the following requirement: Keep the flat
surface of shaft (green line) in vertical direction with the red line shown in the following picture.
The fridge door will can’t be reinstall in right position if not comply with any one of above operation requirement.
3.
Put the fridge door horizontally slightly in order to prevent damaging the automatic door closer which under
the bottom of door.
4. When install the fridge door to middle hinge, please ensure the following items:
a. Firstly, note that put the white anti-friction ring into middle hinge shaft before putting the fridge door above
the middle hinge.

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
