Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
15
Issue 2010-12
Rev.
Ref1012S008V0
b. Secondly, let the shaft of automatic door closer aim at the shaft of middle hinge when putting the fridge
door above the middle hinge.
c. Thirdly, must keep the fridge door and cabinet in vertical 90° degree when putting the fridge door above the
middle hinge, in order to ensure the door be installed in right position with the middle hinge.

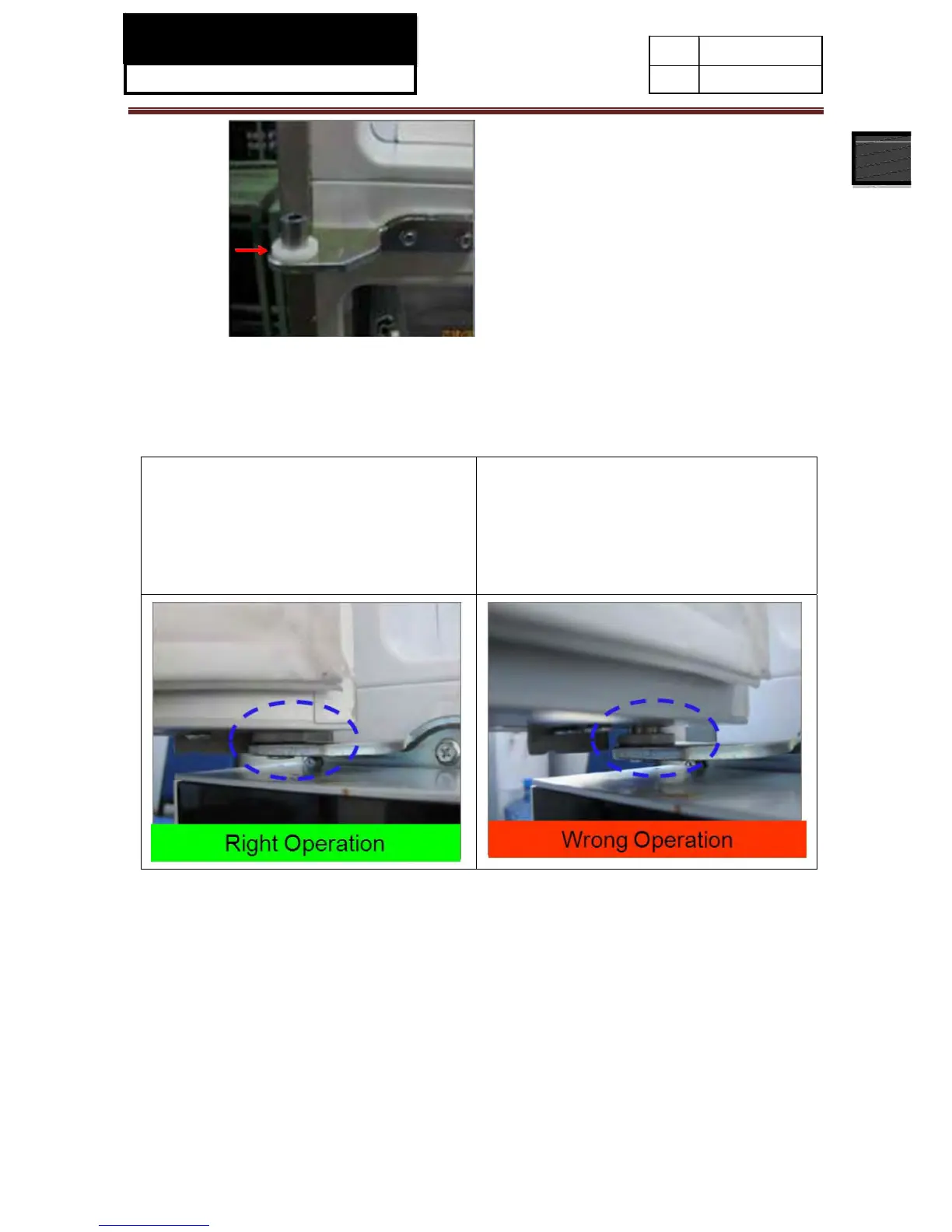

Check the installation after finished operation:
Right Operation:
When install the fridge door, keep the door in 90°
angle with the cabinet. The door, the anti-friction
ring and middle hinge are fitted rightly.
Wrong Operation:
When install the fridge door, no keep the door in
90° angle with the cabinet. The door, the anti-frictio
n
ring and middle hinge are not fitted rightly, there is
gap between them, that cause the door is not
installed in position wholly.
5. After finishing door installation, check the following items:
a. Power on the refrigerator, it can be start.
b. Can open and close fridge door smoothly.
c. Check if the left fridge door and the right fridge door are not level.
If exist the phenomenon that the left fridge door and the right fridge door are not level, first check the install
status between the door and middle hinge according to above instruction 4(C). If the installation operation is OK,
the door, the anti-friction ring and middle hinge are not fitted rightly, but the two fridge door are still not level, can
level the doors by adding adjusting pad (there are three 1mm adjusting pad with the refrigerator.) .Operation
method:

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
