Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
16
Issue 2010-12
Rev.
Ref1012S008V0

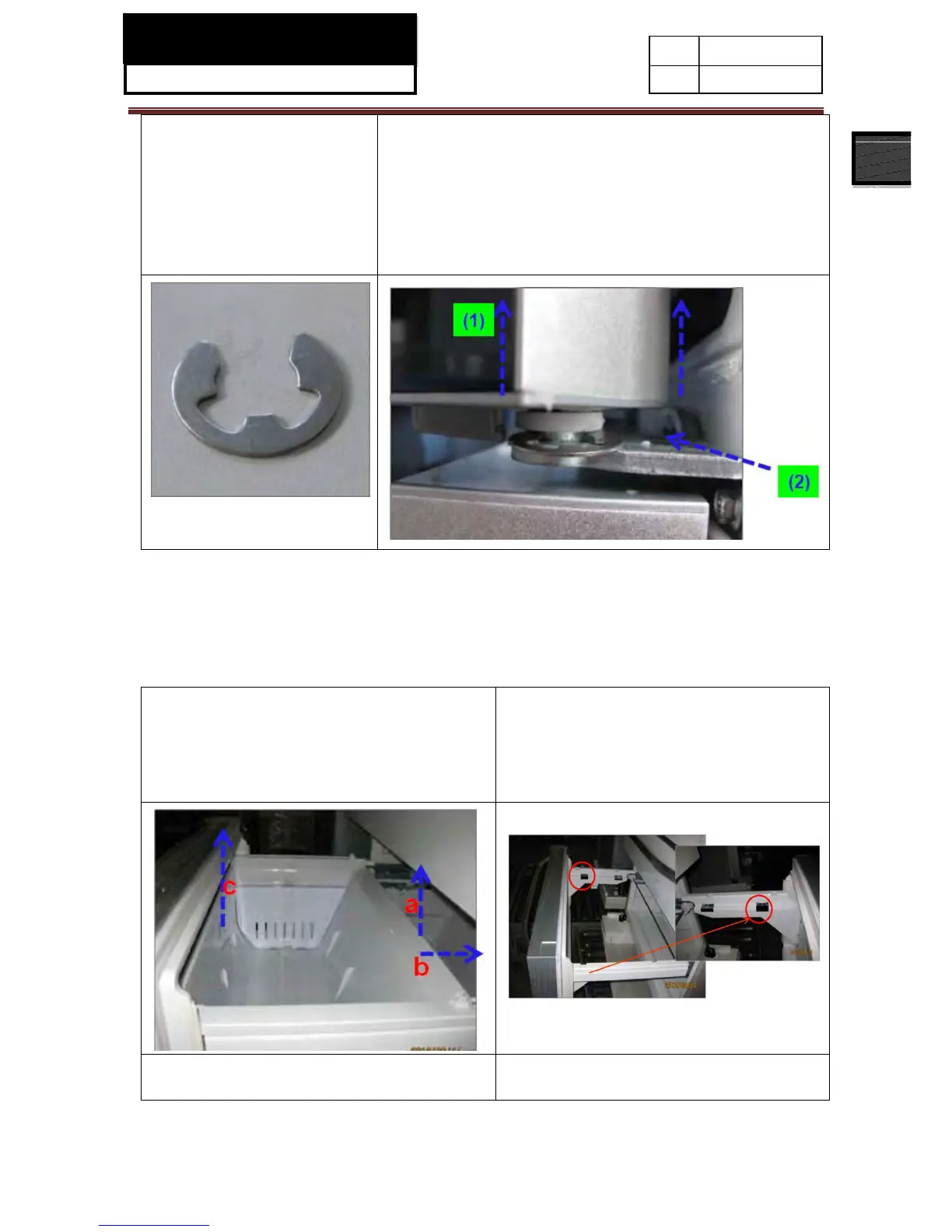

Part used for adjustment use:
adjusting pad for middle hinge
(can be used to adjust the fridge
door level )
Operation:
1. Open and lift the fridge door.
2. Clip the adjusting pad using a pincers to insert it into the shaft of
middle hinge. The pad should between the white anti-friction ring
and the middle hinge.
（In the following demo picture, the pad are not insert into middle
hinge wholly.）
After above adjustment, check again to ensure door can be opened and closed normally.
3-4. Disassemble the freezing door
Take the operation of big freezing drawer door for example. Disassemble the small freezing door can
refer to the following similar operation.
(1) Pull out the big freezing drawer door, lift the
plastic drawer front part gently (a), meanwhile
passes forward the plastic drawer (b) , makes an
effort upwardly behind the plastic drawer (c), take
down the plastic drawer.
(2) Detach two screws fixing slideway support
bracket.
(3) Hold the drawer door and lift it upward, take down
the door from the slideway.
(4) After removing drawer door, push slideways
into the cabinet.

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
