Haier HB21FSSAA Service Manual

SERVICE MANUAL
Model: HB21FSSAA
,
HB21FG*
21
Issue 2010-12
Rev.
Ref1012S008V0
Reconnect the 2 heater connectors

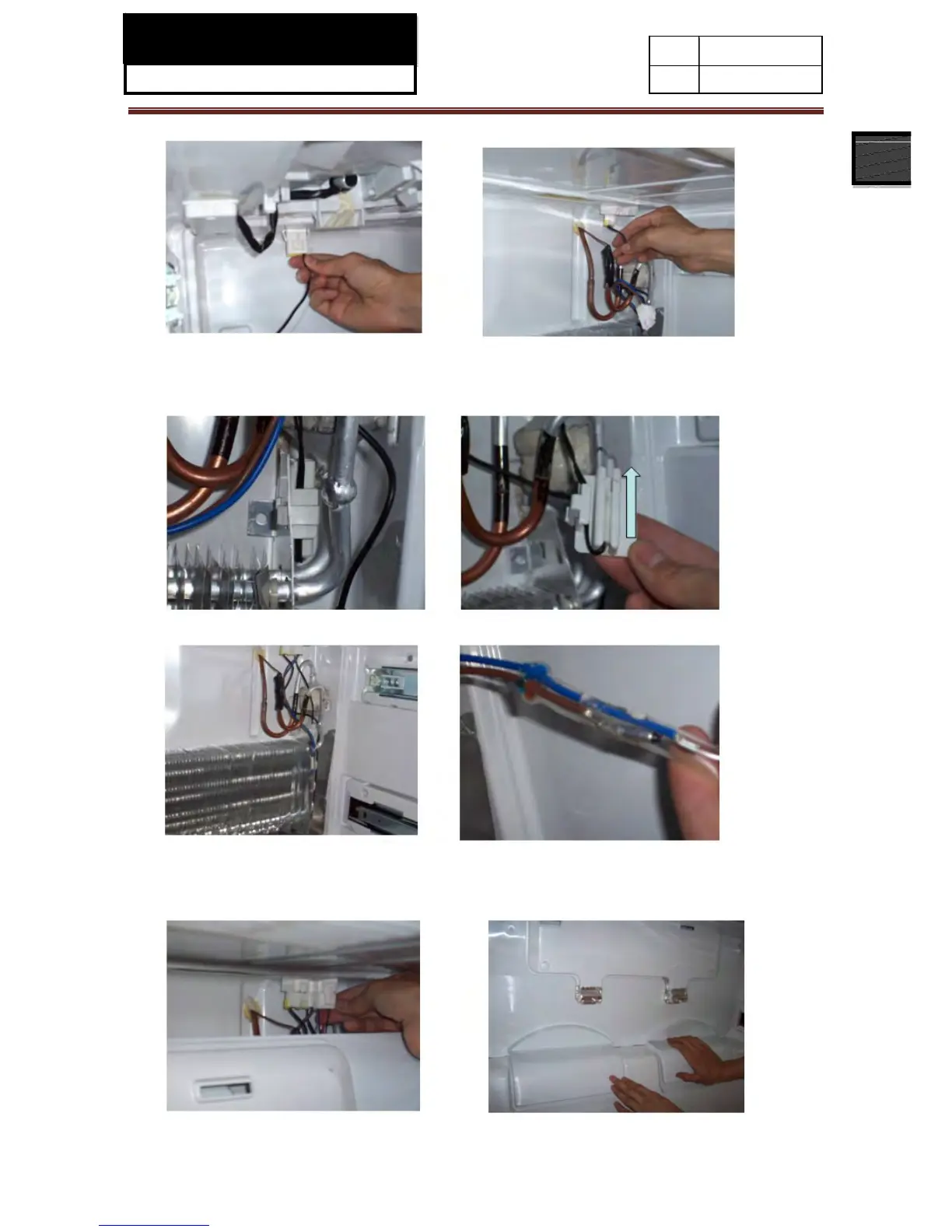

STEP-6: Disassembly the fixing clip of defrost sensor, then push the sensor according to the marked
direction to take down the sensor.
Cut the fixing clip of fuse and check whether the fuse is well, if it is failed, please change a new one.
STEP-7: After examination, first connect the fan connector, then push the cover of air passage to fix it
well.

Haier HB21FSSAA Specifications

General

Icemaker	No
Noise level	42 dB
Climate class	SN-T
Total net capacity	543 L
Total gross capacity	635 L
Child lock	-
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Number of compressors	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	149 L
Freezer gross capacity	- L
Freezer number of shelves/baskets	2
Storage time during power failure	12 h
Fridge net capacity	394 L
Fridge number of shelves/baskets	3
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	432 kWh
Package depth	760 mm
Package width	980 mm
Package height	1860 mm
Package weight	161000 g

Weight and Dimensions

Depth	770 mm
Width	910 mm
Height	1780 mm
Weight	141000 g
