Hakko Electronics FR-803 - WIRING DIAGRAM

26
CN4
CN8CN9
CN5
CN7
CN2
CN6
+
-
GND
1
1
1
1 4
1
3
1 3
1
3
1 2
1 2
1
3
1
3
CN3
1
SW1
START
SW2
VACUUM
1
2
1
3

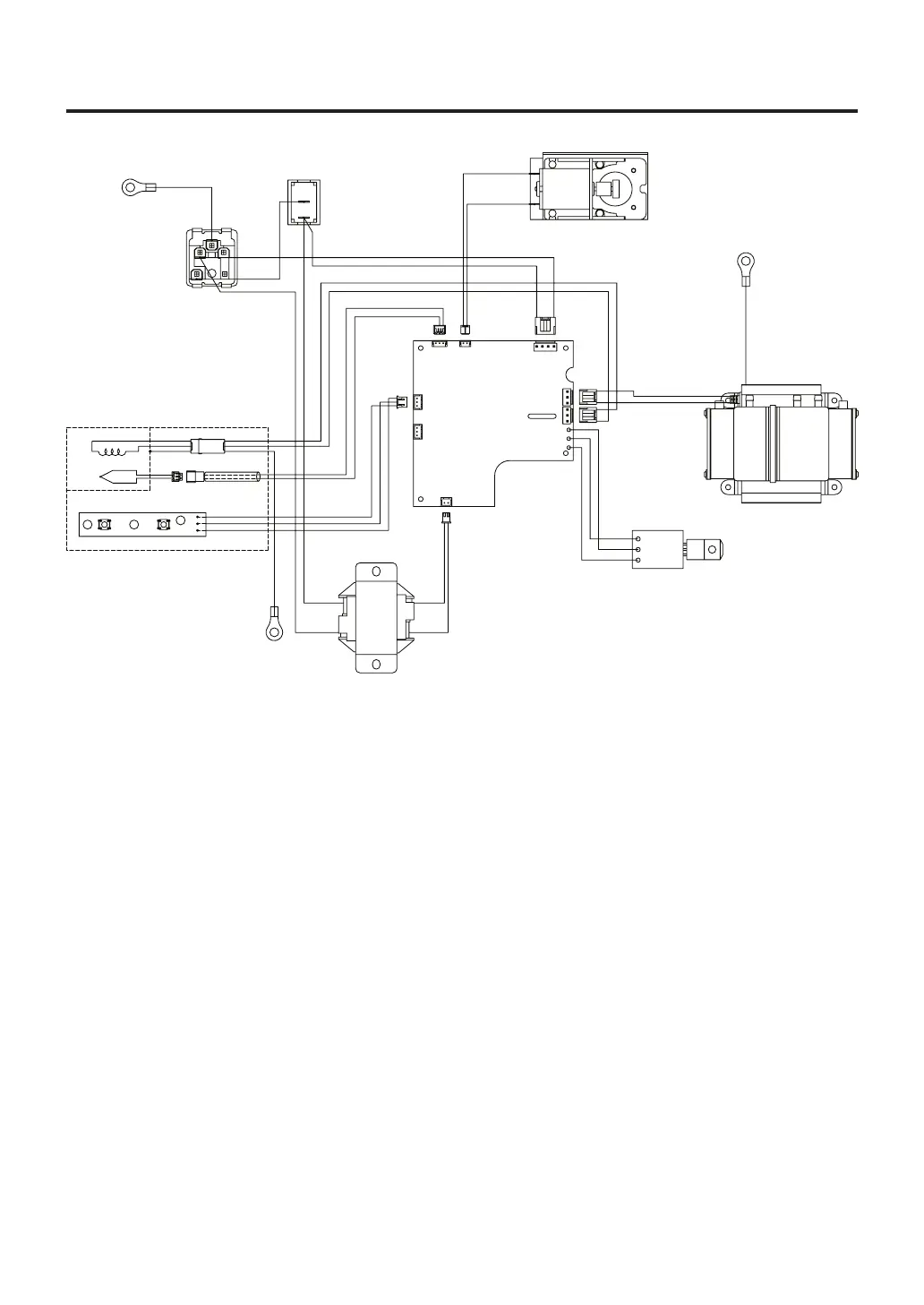

14. WIRING DIAGRAM
Transformer
Pump
Vacuum pump
P.W.B.
Handpiece
Power switch
Power receptacle
Pump/Ground
Heater
Heating element
AC sensor
Terminal board
P.W.B./Triac
