Date and Time Setting
1. Move the cursor using the [←] / [→] switch, and change the value by pressing the [+] / [−] switch.
2. When the desired date and time are set, press the [Set] switch to determine the setting.
3. The calendar data is updated as set.
Initializing SRAM
When the SRAM memory or cassette is initialized, the data contained is cleared. Double-check before
initializing the SRAM memory or cassette.
1. “Extension” is shown when V7EM-S (SRAM cassette) is mounted; “Built-in” is shown when it is not
mounted.
2. Press the [Format] switch and the [Execute] switch.
The SRAM area is initialized in the current screen data format. When initialization has been
completed, the message “∗∗Format Completed∗∗” is displayed.
5. Extension Program Information

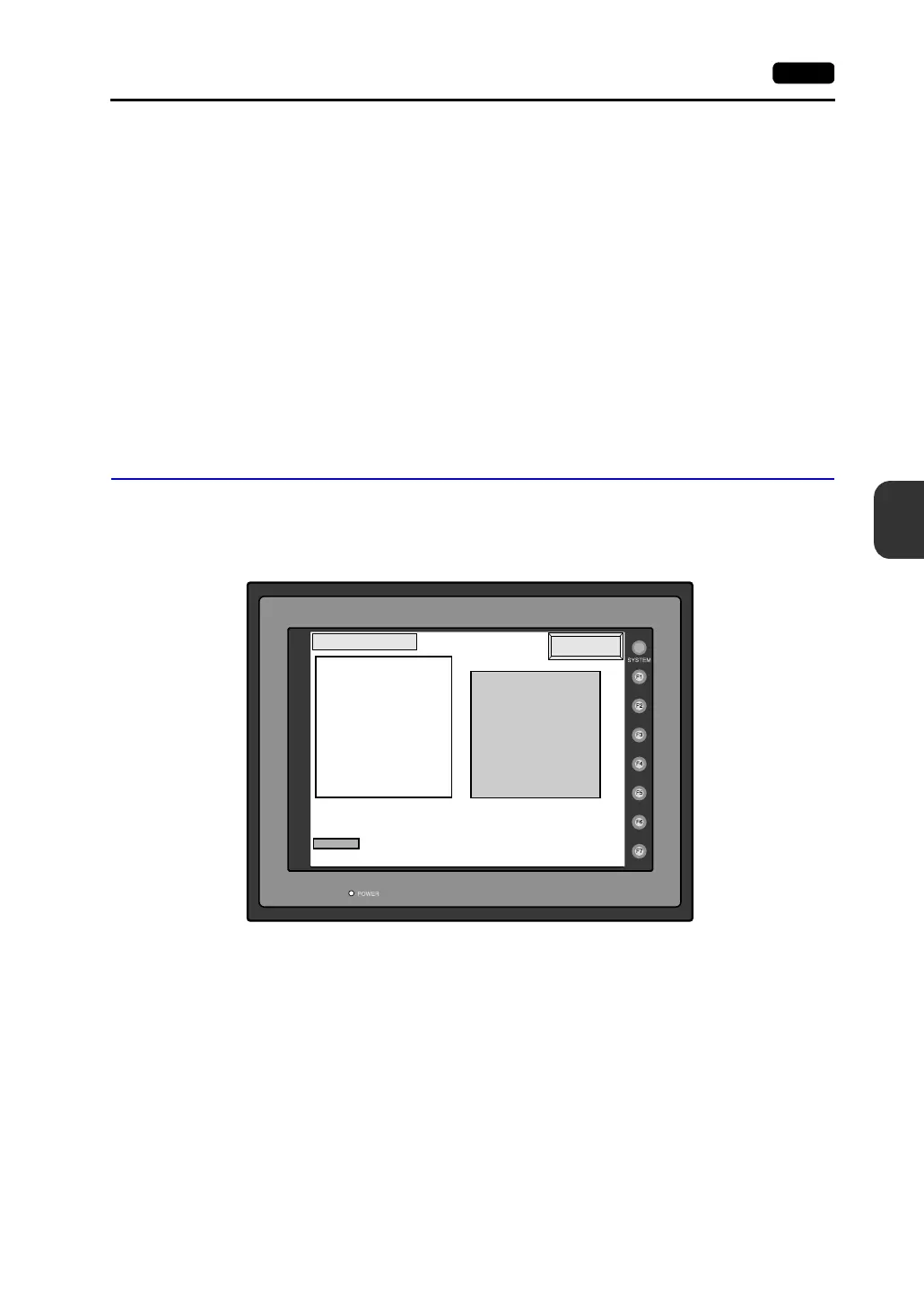

When the [Extension] switch on the Main Menu screen is pressed, the following “Extension Program
Info.” screen appears.
The driver setting and parameter setting for temperature controller/PLC2Way communication, ladder
transfer function, Modbus slave communication, etc. are displayed.
Main Menu
Extension Program Info.
Temp. Control / PLC2Way
Temp. Control / PLC2Way
Comm. Parameter
Comm. Parameter
Temp./PLC2Way Control Drv
VER. 1.100 RKC SR-Mini/CB
Editor:MJ1
Signal Level : RS485
Baud Rate : 9600
Data Length : 8
Stop Bit : 1
Parity : None
Retry Time : 3
Time-out : 100 msec
Send Delay : 0 msec
Return Time : 10 sec
