6-12 2. Main Menu Screen

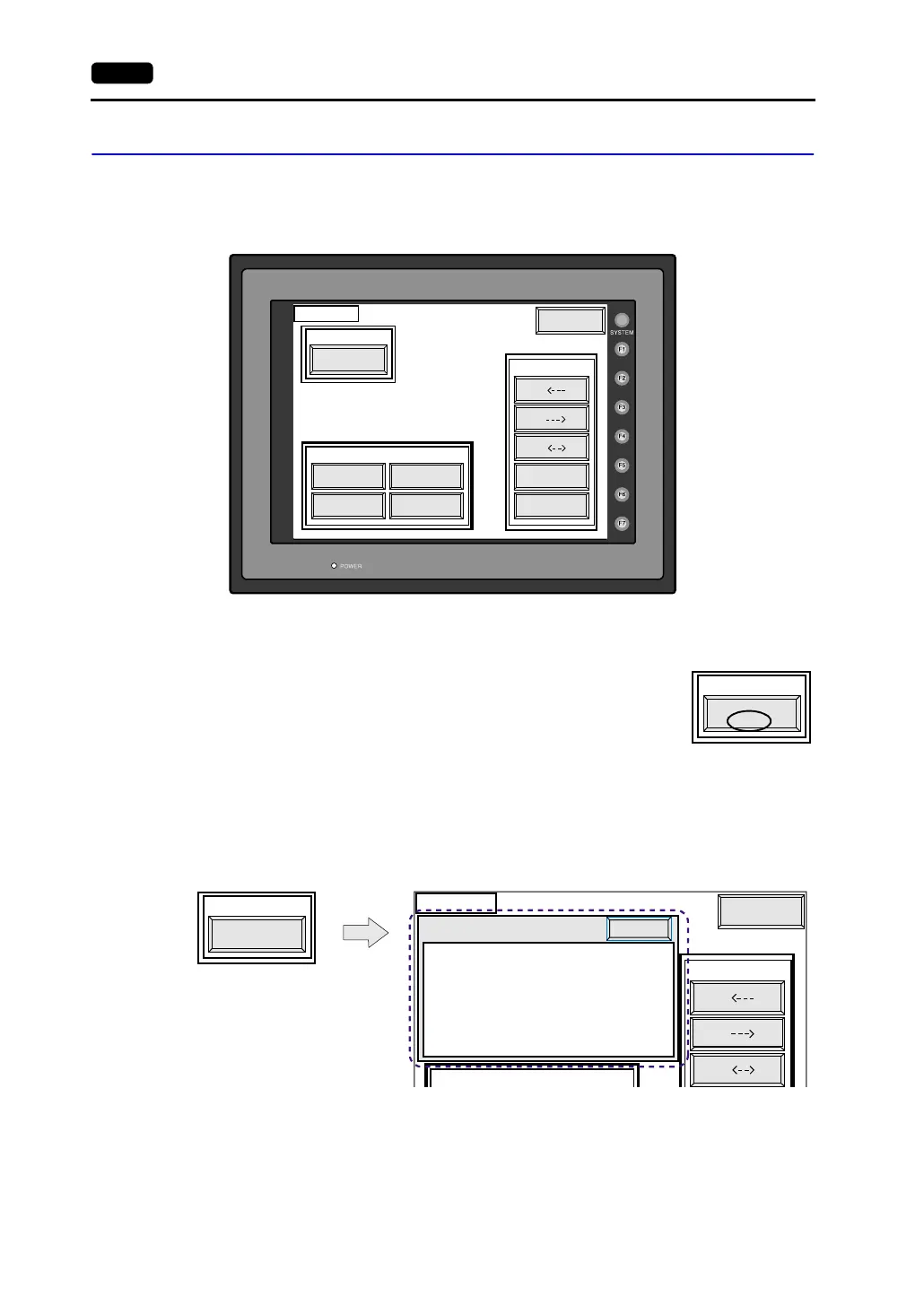

2-1. CREC Menu Screen
When the [CREC Menu] switch on the “Card Menu” screen is pressed, the following “CREC Menu”
screen appears.
This screen is used to transfer screen data between the V7 series and a memory card.
The procedure for transferring data is described below.
1. Connecting the CREC
Connect the CREC cable (CREC-CP) to the MJ port that is displayed in the “Port Selection” field.
• MJ1:....................... Connect the CREC to the MJ1 port. Normally
MJ1 is selected.
• MJ2:....................... Connect the CREC to the MJ2 port. Only when
[Memory Card] is selected for [Modular Jack 2],
“MJ2” is indicated in the “Port Selection” field.
2. Mounting the Memory Card
Insert a memory card in to the card recorder (CREC).
3. Memory Card Information
Press the [Modular Jack MJ1 (MJ2)] switch.
The memory card information contained in the inserted memory card is indicated.
Switches in the “Data Selection” field and “Transfer” field become active.
Modular Jack
MJ1
CREC Menu
Transfer
Start
Cancel
Return
Screen Data Font Data
I/F Driver Sys. Program
Data Selection
Port Selection
Display
Display
Display
Card
Card
Card
Modular Jack
MJ1
Port Selection
Modular Jack
MJ1
Port Selection
CREC Menu
Return
Transfer
Data Selection
Display
Display
Display
Card
Card
Card
Memory-Card Information
Sys. Program
Version
Font Date
Version
I/F Driver
Version
Screen PLC Type
Screen Comment
:
: -.---
:
: -.--- / -.--- / -.---
: YOKOGAWA FA
: 1.250
: YOKOGAWAFA-M3
:
Close
