1-4 2. Models and Peripheral Equipment

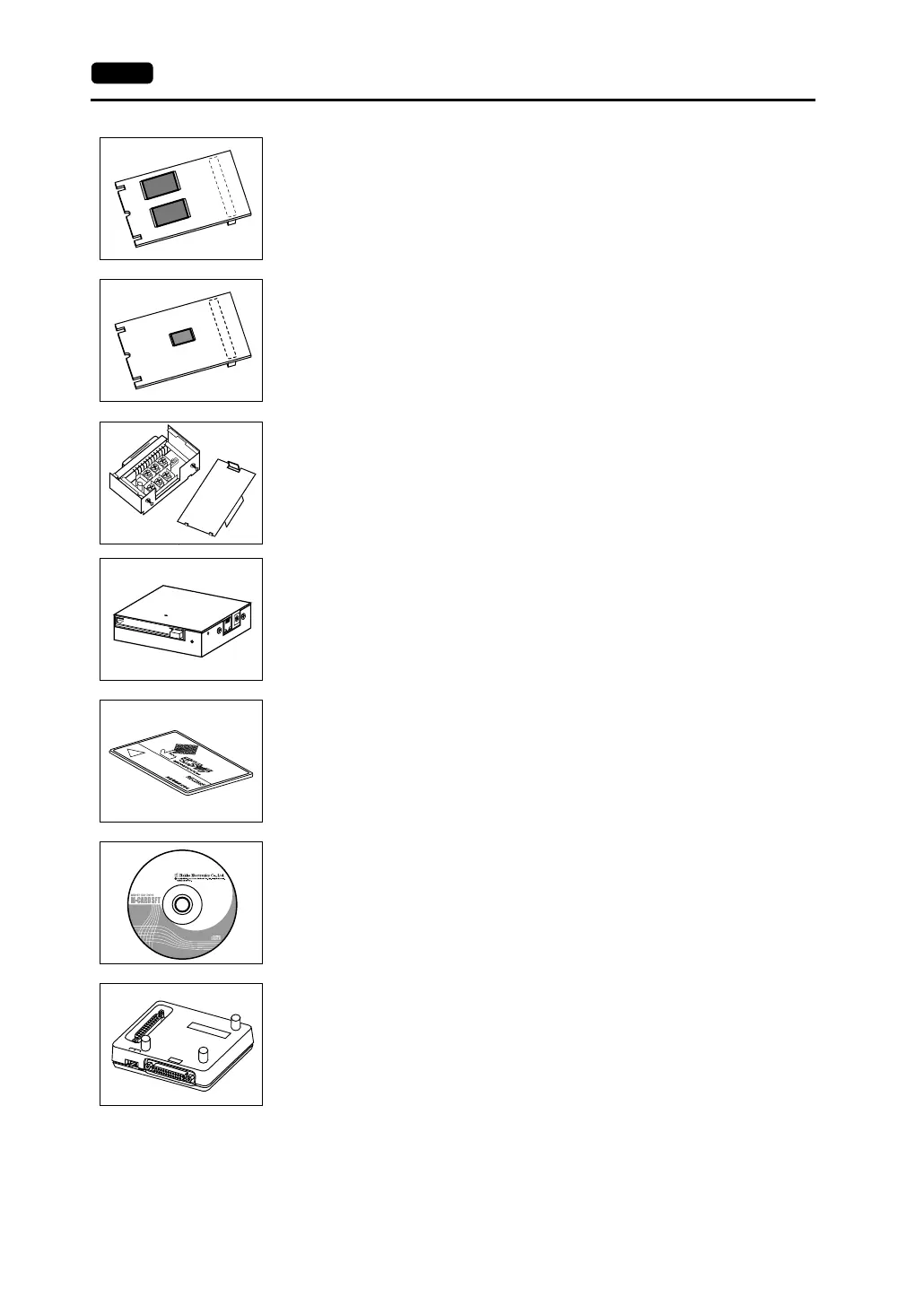

V7EM-L (FLASH memory cassette for ladder monitor)
Extension print circuit board for the ladder monitor function.
The memory for screen data is extended at the same time.
The capacity of FLASH memory is 8 Mbytes. (4 Mbytes for ladder monitor, 4 Mbytes for
screen data)
V7EM-S (SRAM cassette)
Extension print circuit board to back-up the memory for sampling data, V7 internal memory
and memo pad. The capacity of an SRAM cassette is 512 kbyte.
TC485 (terminal converter)
Used for connection between the V7 series and a PLC at the RS-422/485 terminal block.
CREC (card recorder)
The card recorder creates a backup copy of screen data or works as an external memory
storage system for memory manager and data logging functions.
REC-MCARD (memory card) compliant with JEIDA ver. 4.0
Used with the card recorder when having a backup copy of screen data or saving data on an
external medium for memory manager and data logging functions.
SRAM 256 k, 512 k, 1 M, 2 M, 4 Mbyte
FLASH ROM 256 k, 512 k, 1 Mbyte
M-CARD SFT (memory card editor)
Application software for editing data stored on a memory card, SRAM or CF card.
(Windows98/NT4.0/Me/2000/XP compatible)
V-MDD (ACPU/QnACPU/FXCPU dual port interface)
Add-on connector with two ports, specifically designed for the connector on the
MITSUBISHI’s ACPU/QnACPU/FXCPU programmer. Operability can be improved when
directly connecting the V7 series to the ACPU/QnACPU/FXCPU programmer.
