6. 10BASE-T (LAN) 2-17
Specifications
Wiring

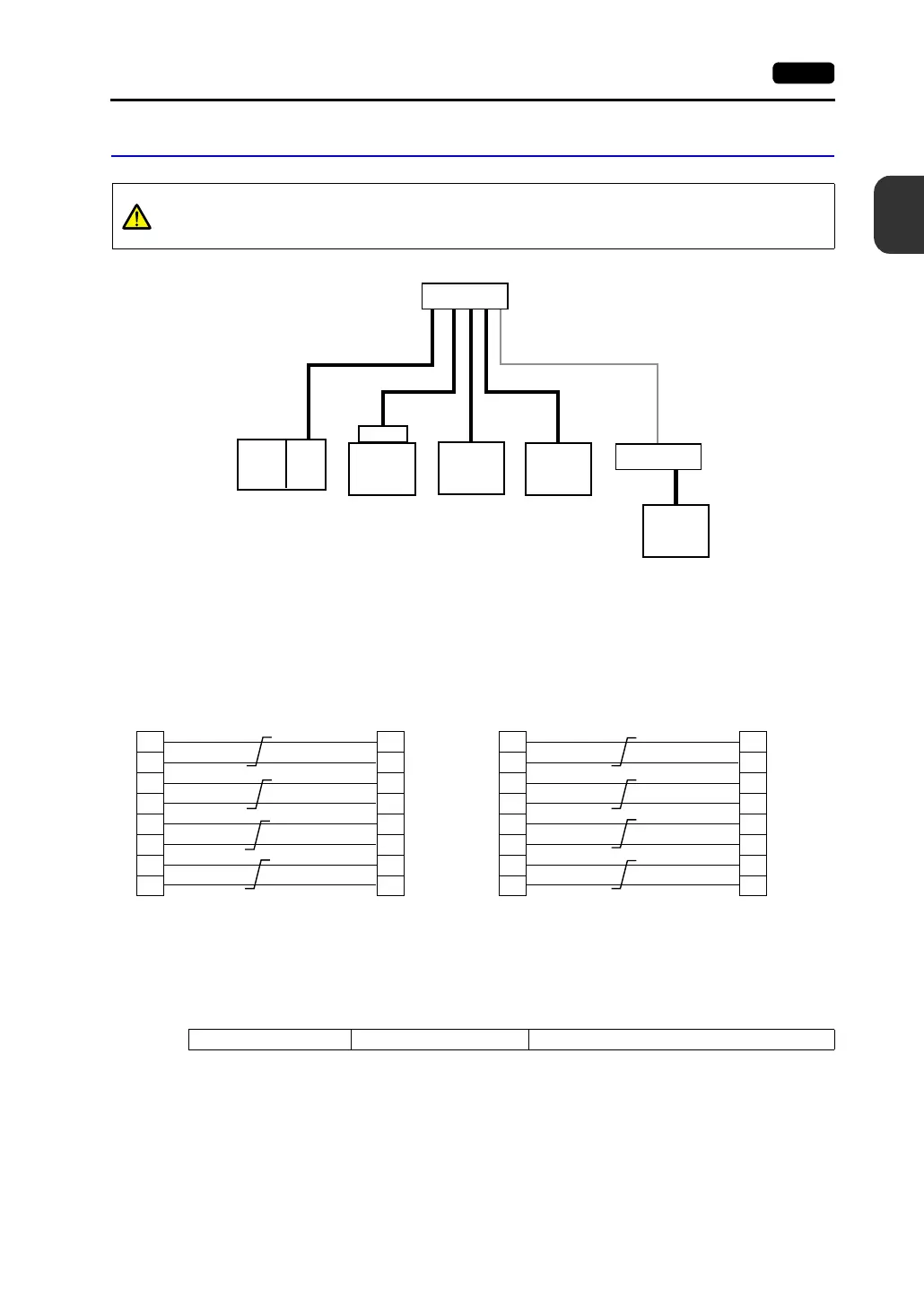

Cable Connection Diagram
Recommended Cable
Use the following recommended cable.
CAUTION
When using the LAN port, keep the LAN cable away from the power supply cable as
much as possible.
CU-03
V7iV7
PLC
HUB
HUB
UTP cable
Straight or cross cable
(For more information, refer the HUB specifications.)
Node
Node
Distance between the node and the HUB: 100 m maximum
Maximum network nodes: 100
UTP cable
Straight
Ethernet
unit
Straight cable
(with HUB)
Cross cable
(without HUB)
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
3
6
1
2
5
4
8
7
10BASE-T
RJ-45 8Pin
10BASE-T
RJ-45 8Pin
* Unshielded twist-pair cable * Unshielded twist-pair cable
Recommended cable 10BASE-T Type: Twist-pair cable, category 5
