Operation

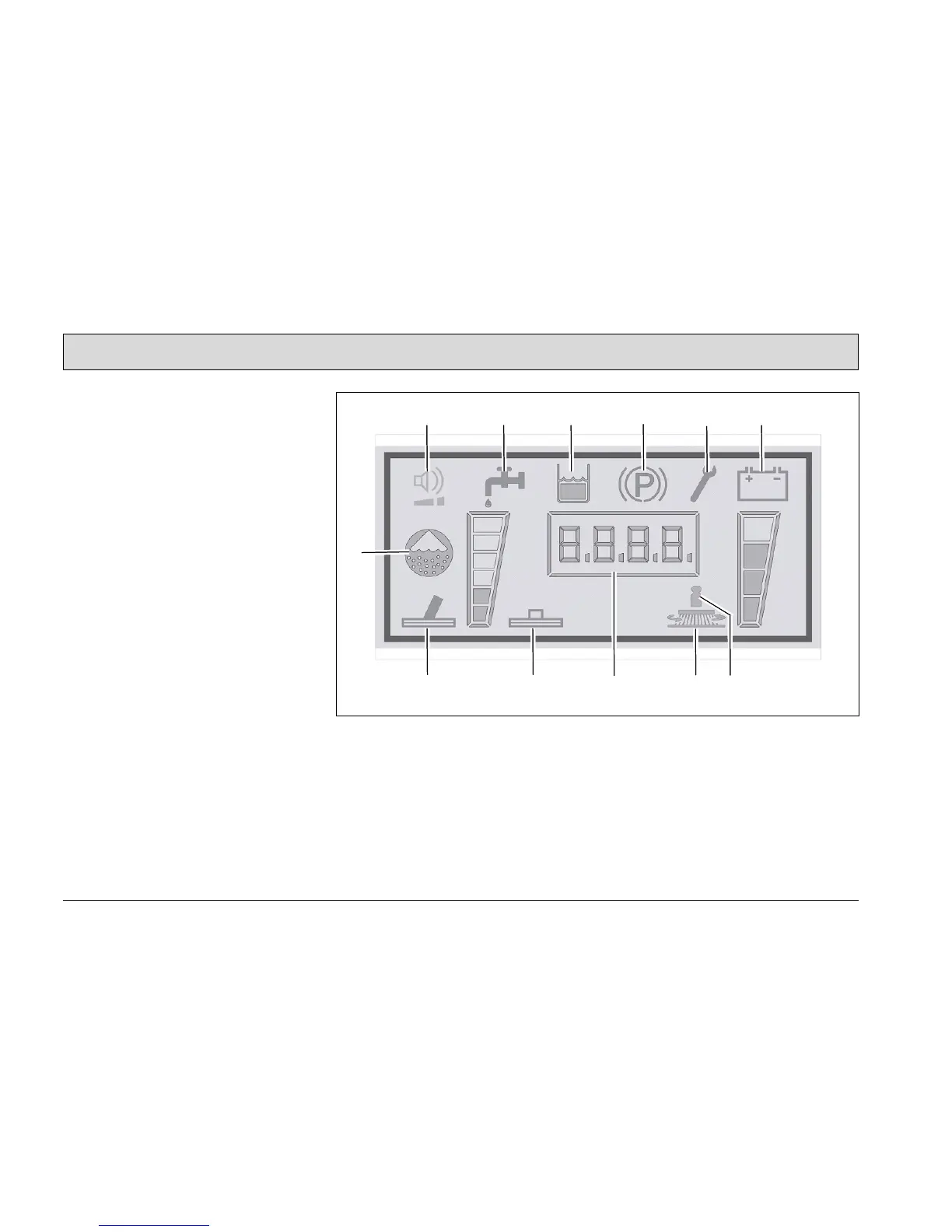

Indicator field
1 Icon, silent kit (option)
2 Icon, clean water dosage
3 Icon, waste water tank full
4 Icon, parking brake
5 Icon, service indicator
6 Icon, charge status indicator (TSG)
7 Icon, chemical dosage (option)
8 Icon, scrubbing-vacuum tool
(option)
9 Icon, suction turbine drive
10 Icon, operating hour counter
11 Icon, scrubbing
12 Icon, brush pressure adjustment
Fig.20
1 2 3
4
5
6
8
7
9
10
11 12
