3.1 Operation Elements

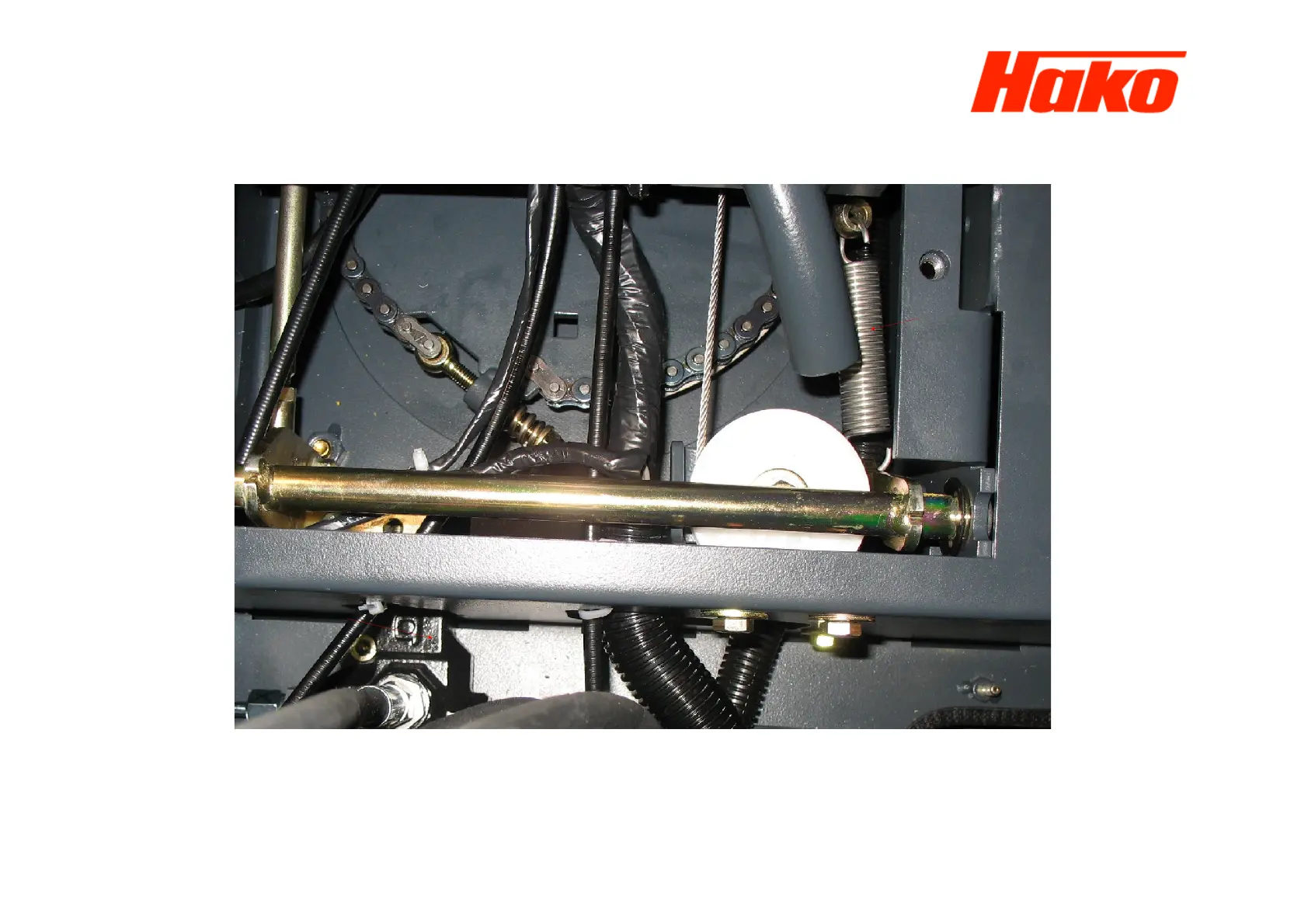

Mitnehmer
Feder
Carrier spring
Hydraulikventil
Hydraulic valve
Mitnehmer
Welle
Carrier shaft
The spring connected to the side broom lever should be slightly under tension. The tension must not exceed the tension of the valve-
neutral-spring (hydraulic broom valve).
