Service Manual
Hako GmbH Technical Service (KUD) 23843 Bad Oldesloe Edition: 05/2014
Confidential - For internal use only!
3.2 Cylindrical Broom and Side Brush
3.2.1 Cylindrical Broom

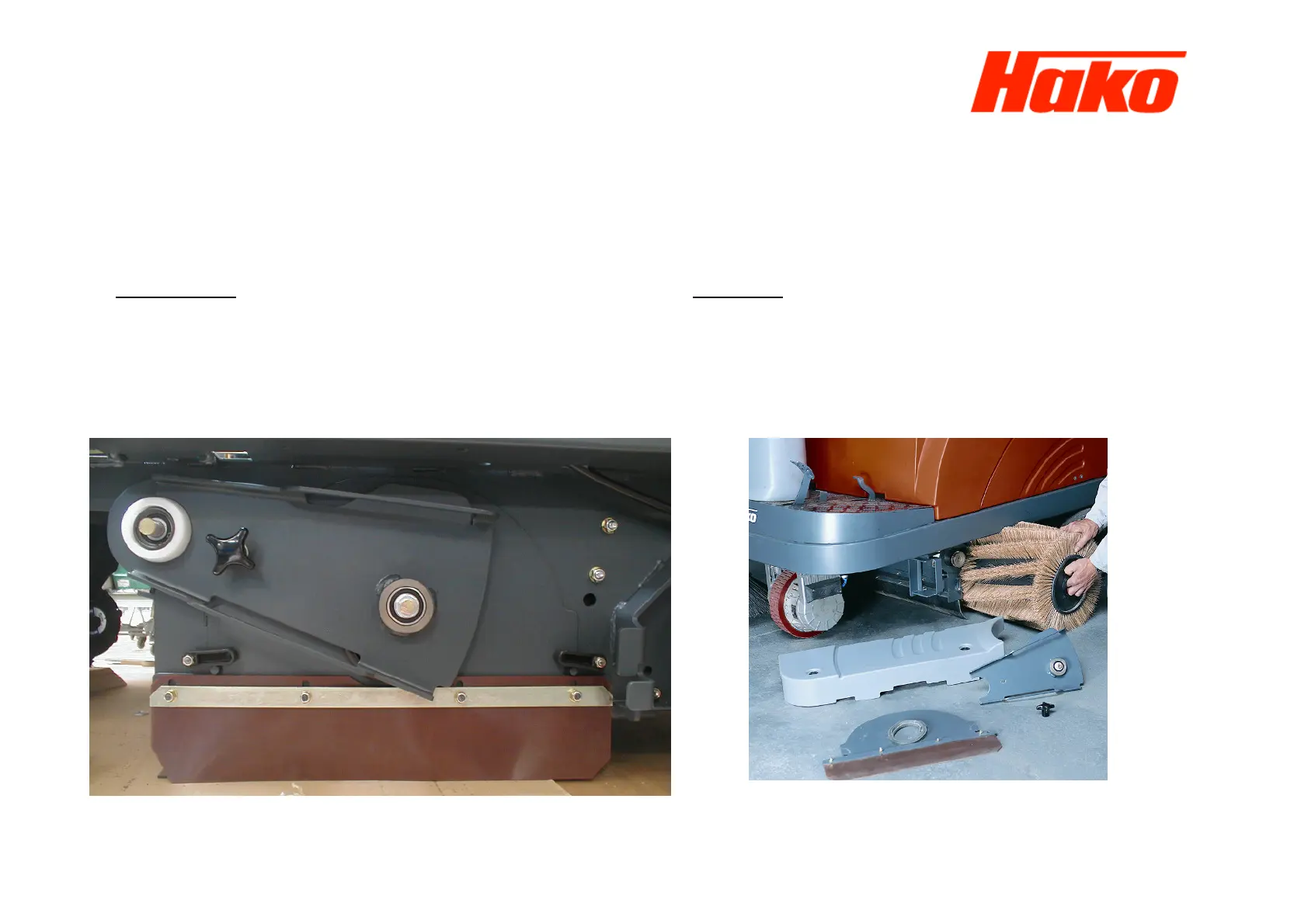

3.2.1.1 Replace Cylindrical Broom
Dismounting: Mounting:
• Lower broom Proceed in inverse order
• Remove l-h lateral cover
• Loosen star-shape knob (2) to remove l-h broom arm (1) Note:
• Open both knobs (3+5) and remove lateral plate (4); Twist broom while inserting until it audibly catches
pull out the cylindrical broom in the driving tooth
1
4
5
