3.2.2 Side broom
Provide for side brush inclination such that the contact surface covers about
2
/
3
of the brush circumference.
Seen in direction of travel, the floor contact surface of the r-h side brush should be between the 11 and 3 o’clock position.
l-h side brush between the 9 and 1 o’clock position
Adjusting paral
lelism

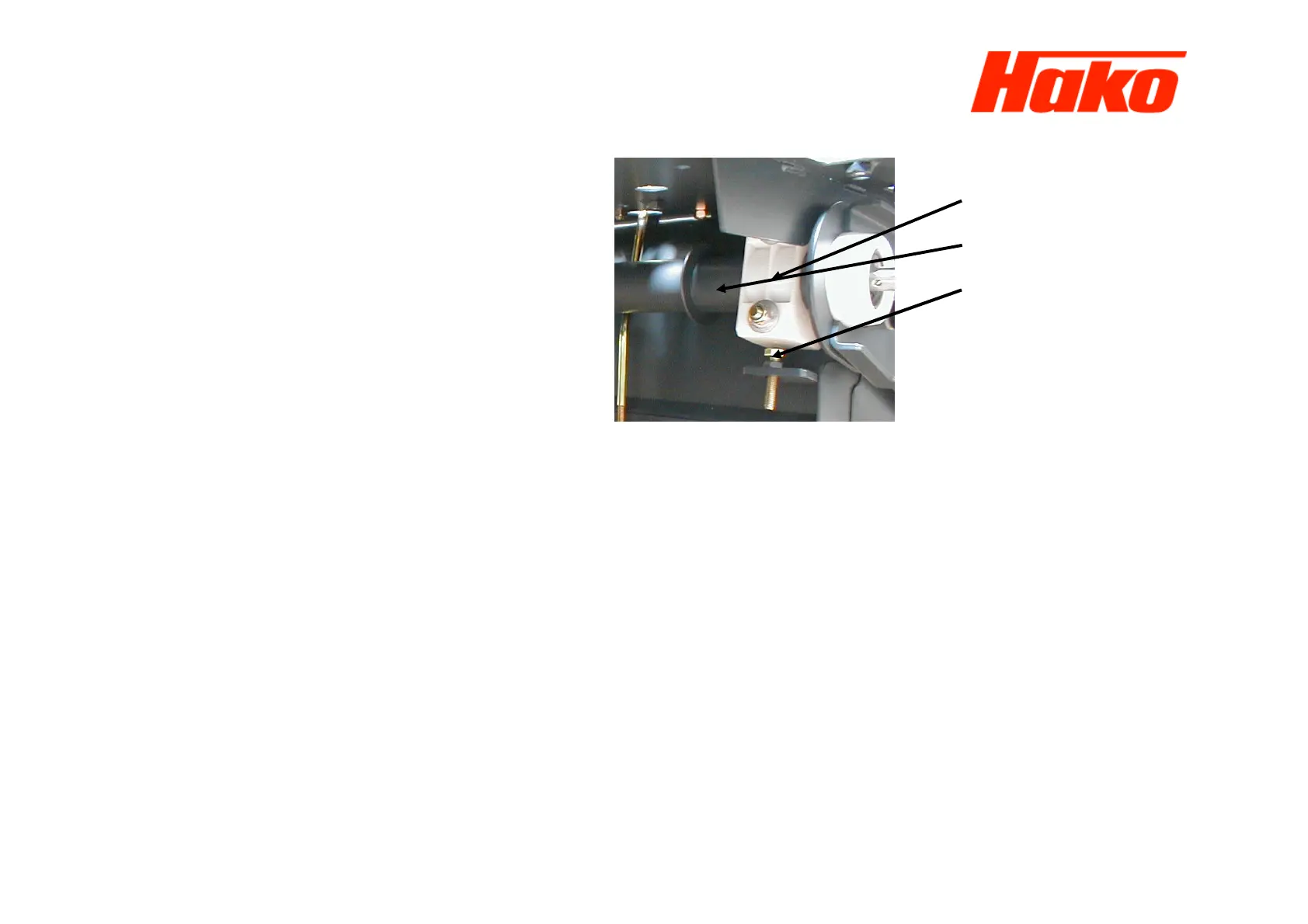

• Loosen l-h half-bearing of torsion shaft
• Adjust parallelism with stop screw
Half-bearing
Torsion shaft
Stop screw
