1.1 Scheme of Operation

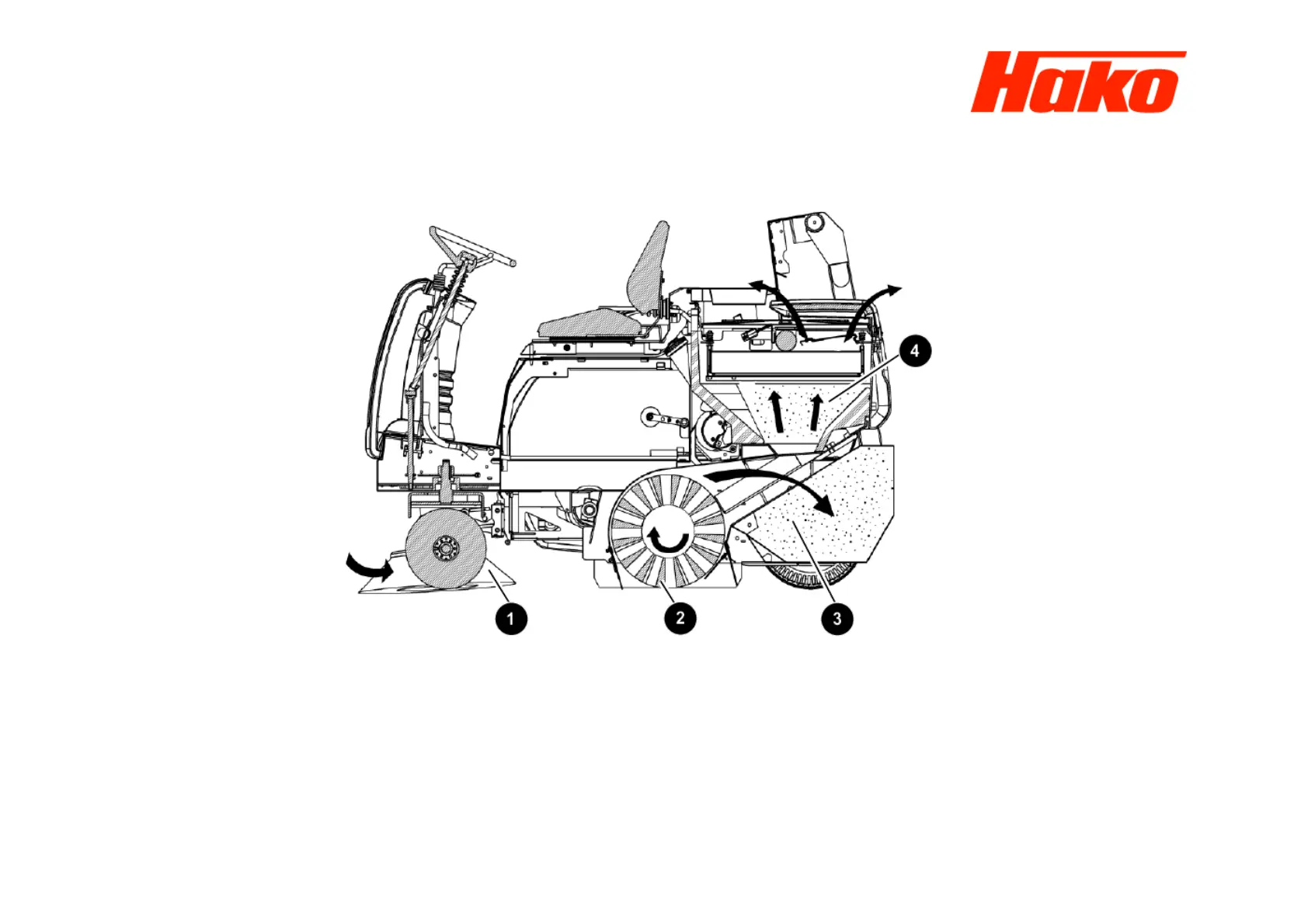

Functional details: The side brush (1) removes dirt from corners and edges and allows enlarging work width and area performance
on free surfaces. The cylindrical broom (2) collects the dirt to throw it overhead into the dirt hopper (3). The collected fine dust is drawn
in by suction fan and separated by the filter system (4). Clean air only is taken out into the environment. Disposal of dirt is realized via
high-dump system directly into a standard dustbin.
