HAKO Jonas 1200 E - 5.2.2 Drive Pump

Service Manual
Hako GmbH Technical Service (KUD) 23843 Bad Oldesloe Edition: 05/2014
Confidential - For internal use only!

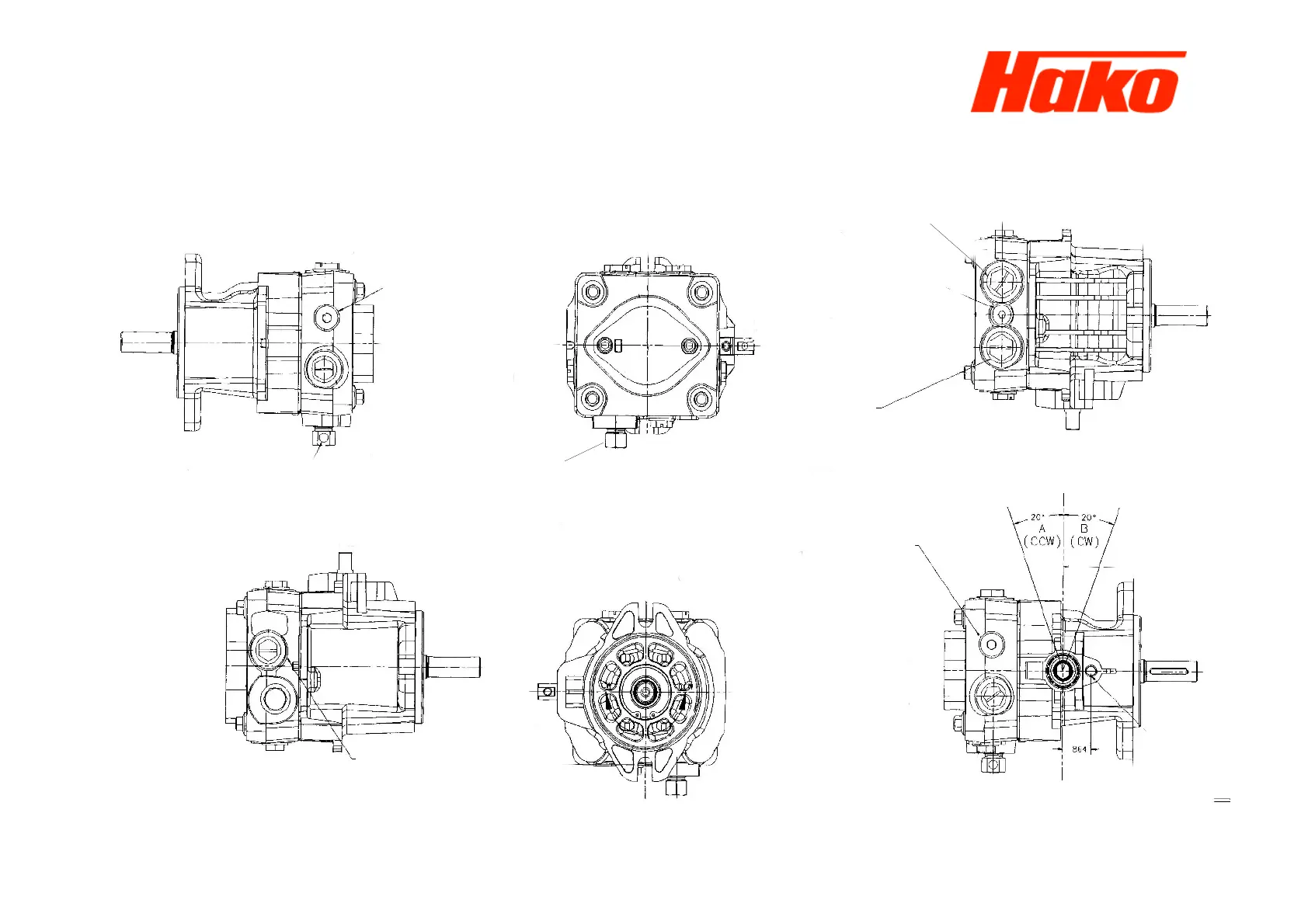

5.2.2 Drive Pump
DBV vorwärts
160 bar
Bypass-Ventil
2 Umdrehungen
zum Öffnen
Anschluß vorwärts
Stopfen für Meß-
punkt Speisedruck
Anschluß
rückwärts
DBV rückwärts
130 bar
Speisepumpe
Einlass
Port, forward
By
-
pass valve
2 turns for opening
Pres
sure
-
limiting
valve, forward
160bar
Plug for feed
pressure,
measuring point
Feed pump,
inlet
Port,
reverse
Pressure
-
limiting
valve, reverse
130bar
