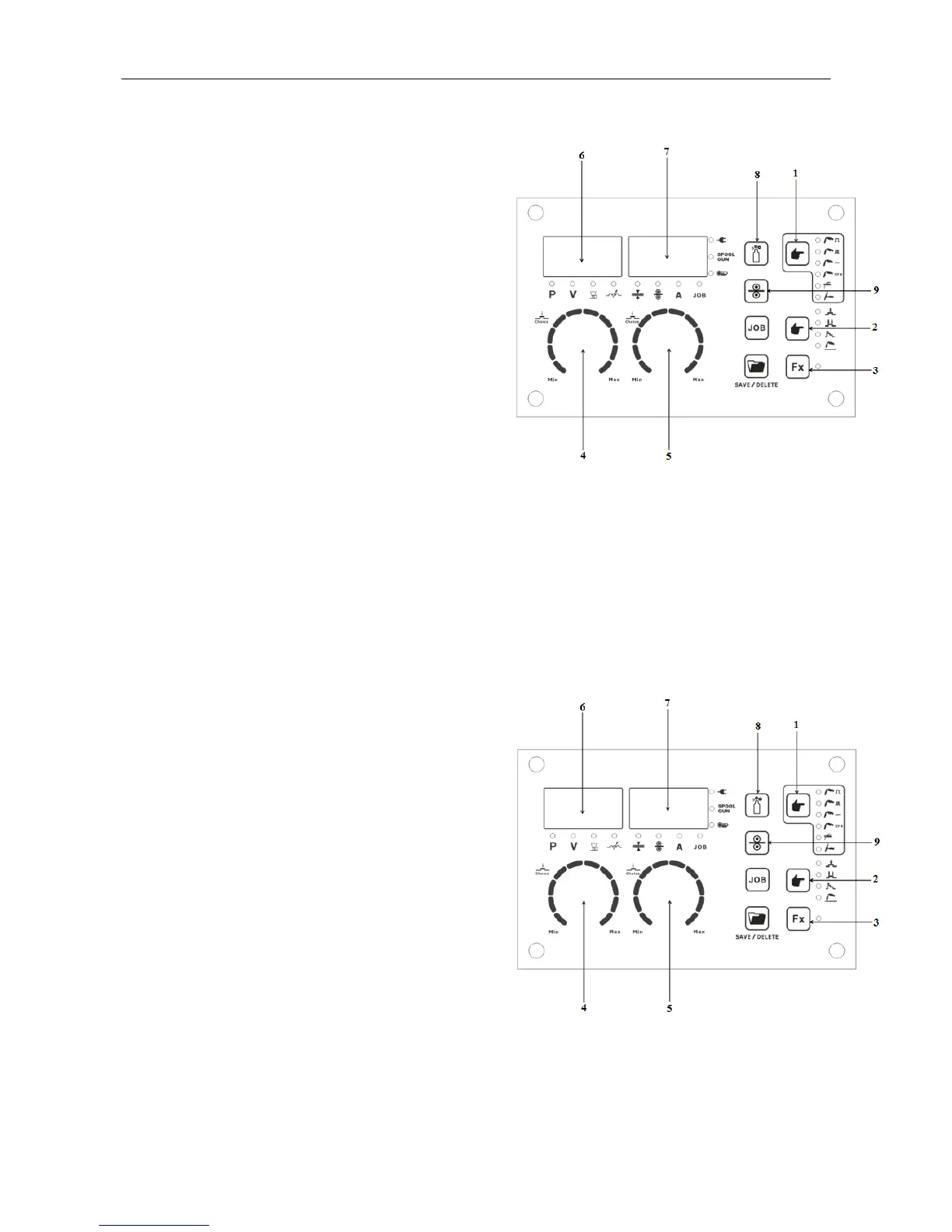

MIG Double-Pulse Synergic Function- Front Panel Description
1. Function Select: MIG Double-Pulse Synergic
2. Trigger Select: 2T/4T/S4T/Spot
3. Function Select: refer to§ 4.4
4. Synergic Program Select: refer to§ 4.4
4. Set: Voltage / Arc Length / Inductance
5. Set: Material Thickness / Current / Wire
Speed
6. Display: Program / Voltage / Arc Length /
Inductance
7. Display: Current / Wire Speed / Material
Thickness
8. Shield Gas Purge
9. Manual Wire Feed
MIG Manual Function- Front Panel Description
1. Function Select: MIG Manual
2. Trigger Select: 2T/4T/S4T/Spot
3. Function Select: refer to§ 4.4
4. Set: Voltage / Inductance
5. Set: Thickness /Current / Wire Speed
6. Display: Voltage / Inductance
7. Display: Thickness / Current / Wire Speed
8. Shield Gas Purge
9. Manual Wire Feed
