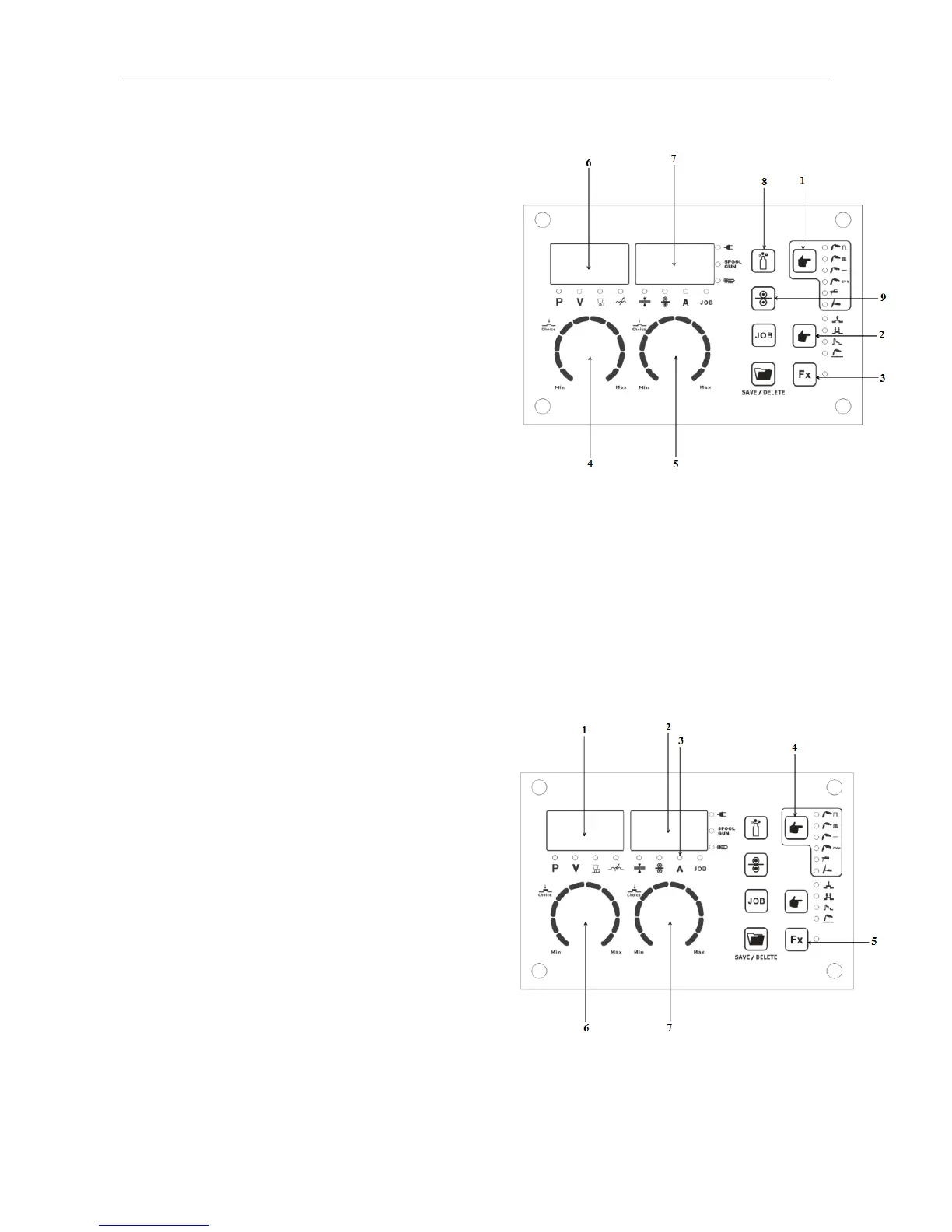

MIG Synergic Function-Front Panel
Description
1. Function Select: MIG Synergic
2. Trigger Select: 2T/4T/S4T/Spot
3. Function Select: refer to§ 4.4
4. Synergic Program Select: refer to§ 4.4
4. Set: Voltage / Arc Length / Inductance
5. Set: Material Thickness / Current / Wire
Speed
6. Display: Program / Voltage / Arc Length /
Inductance
7. Display: Current / Wire Speed / Material Thickness
8. Shield Gas Purge
9. Manual Wire Feed
MMA Mode - Front Panel Description
1. Display Code Parameter: Hot Start / Arc
Force
2. Display Welding Current: Hot Start / Arc
Force
3. Welding Current Indicator (Amps)
4. Function Select: MMA / Stick Electrode
5. Parameter Select: Hot Start / Arc Force
6. Code Parameter Select: Hot Start / Arc Force
7. Welding Current Set: Hot Start / Arc Force
