OPERATION
-31-

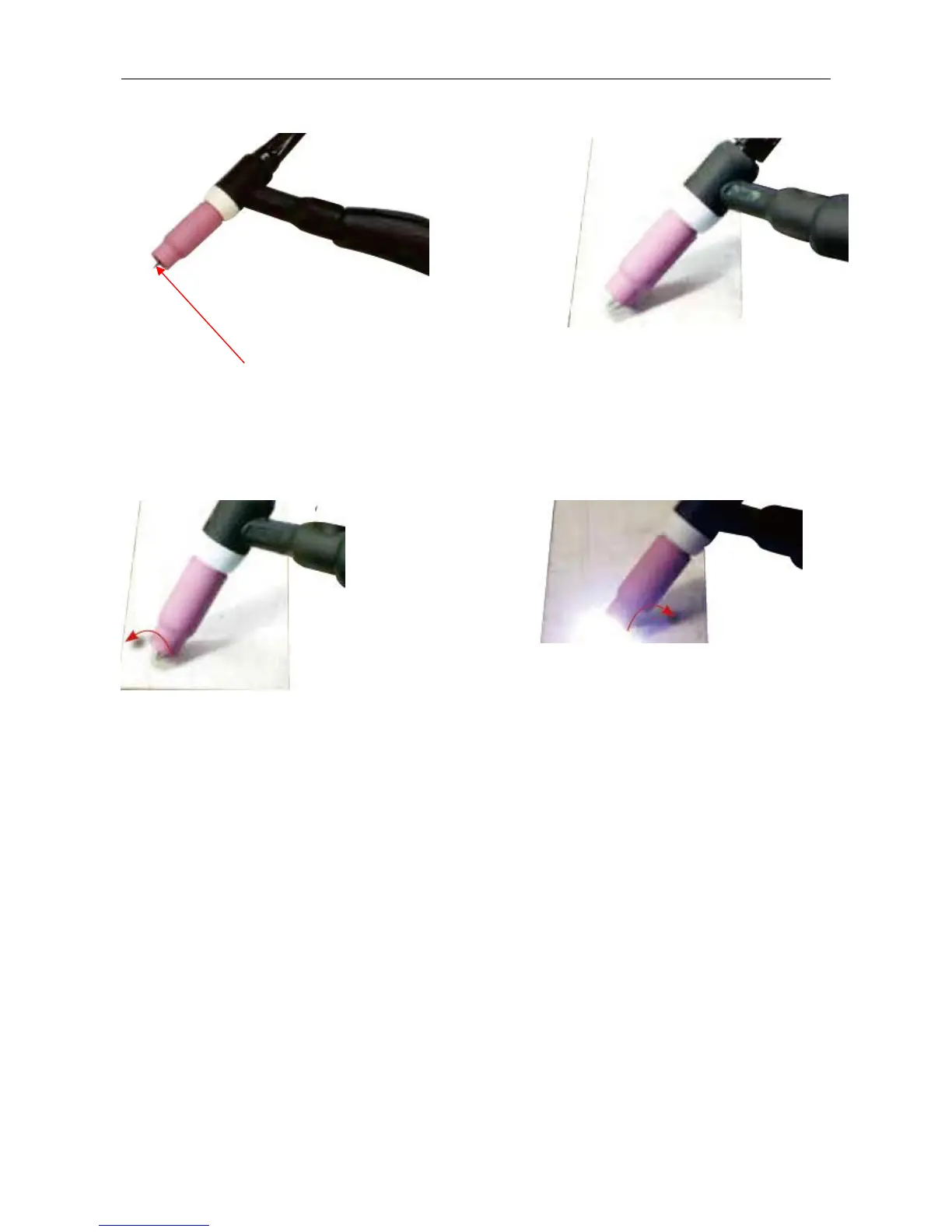

(13) Assemble front end parts of the TIG (14) Lay the outside edge of the cup
torch, fitting a sharpened tungsten suitable on work piece with the tungsten 1- 2mm
for the material to be welded. from the work piece.
(15) With a small movement rotate the gas (16) Now rotate the gas cup in the reverse
cup forward so that the tungsten electrode direction to lift the tungsten electrode from
touches the work piece. the work piece to create the arc. (Lift Arc)
(17) Weld the material by placing the filler rod into the arc.
(18) Release the trigger to stop the welding.
IMPORTANT! – It is recommended that you check for gas leaks prior to operation and
that the operator close the cylinder valve when the machine is not in use.
