To replace the Tungsten Halogen Lamp follow the steps below:
(a) Connect the lamp cable to the new lamp
(b) Align the lamp with the screw holes in the base of the instrument
(c) Insert the lamp holder into the optical system, making sure the cable is not pinned between the optical system and holder.
(d) Tighten the two screws in the base of the lamp holder and push the power cable back into the instrument.
(e) Replace the cover and secure the screw.
(f) Power on the instrument.
(b) (c)
SPARE PARTS
11.2. LAMP REPLACEMENT
Only hold the lamp by the metal holder.
DO NOT TOUCH THE PINS OR THE QUARTZ GLASS!
Ensure the instrument is off before continuing.

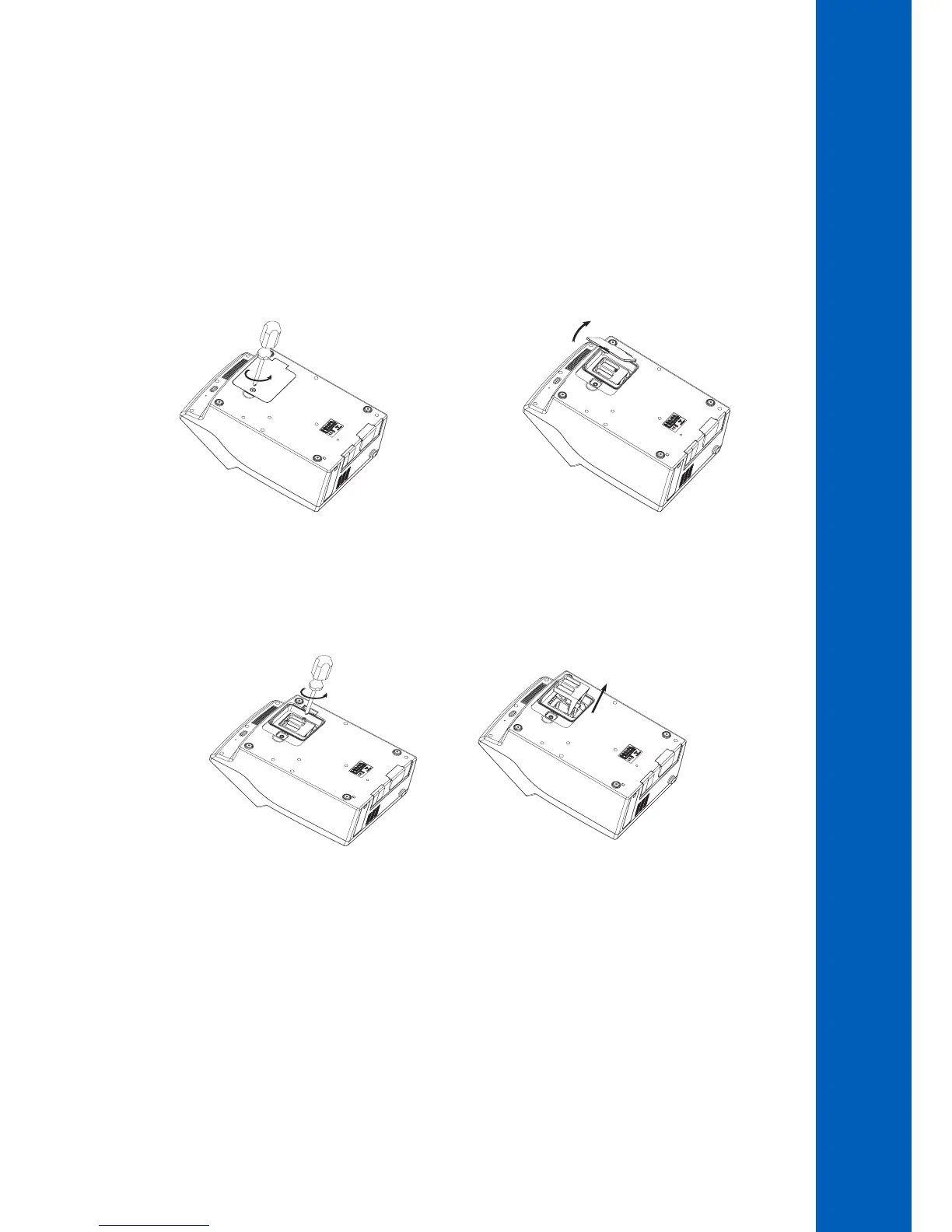

To remove the Tungsten Halogen Lamp follow the steps below.
(a) Use a Phillips head screwdriver to remove the screw on the lamp cover and remove the cover.
(b) Remove the two screws in the bottom on the lamp holder using a Phillips head screwdriver.
(c) Hold the bottom of the lamp holder and slowly pull the lamp out.
(d) Disconnect the lamp cable before removing the lamp completely.
(a)
To Next Page
