Assembly
Attach the wheels
It is recommended but not required to place a cardboard block (or suitable alternative) underneath the chipper
body - this makes it easier to attach the wheels.

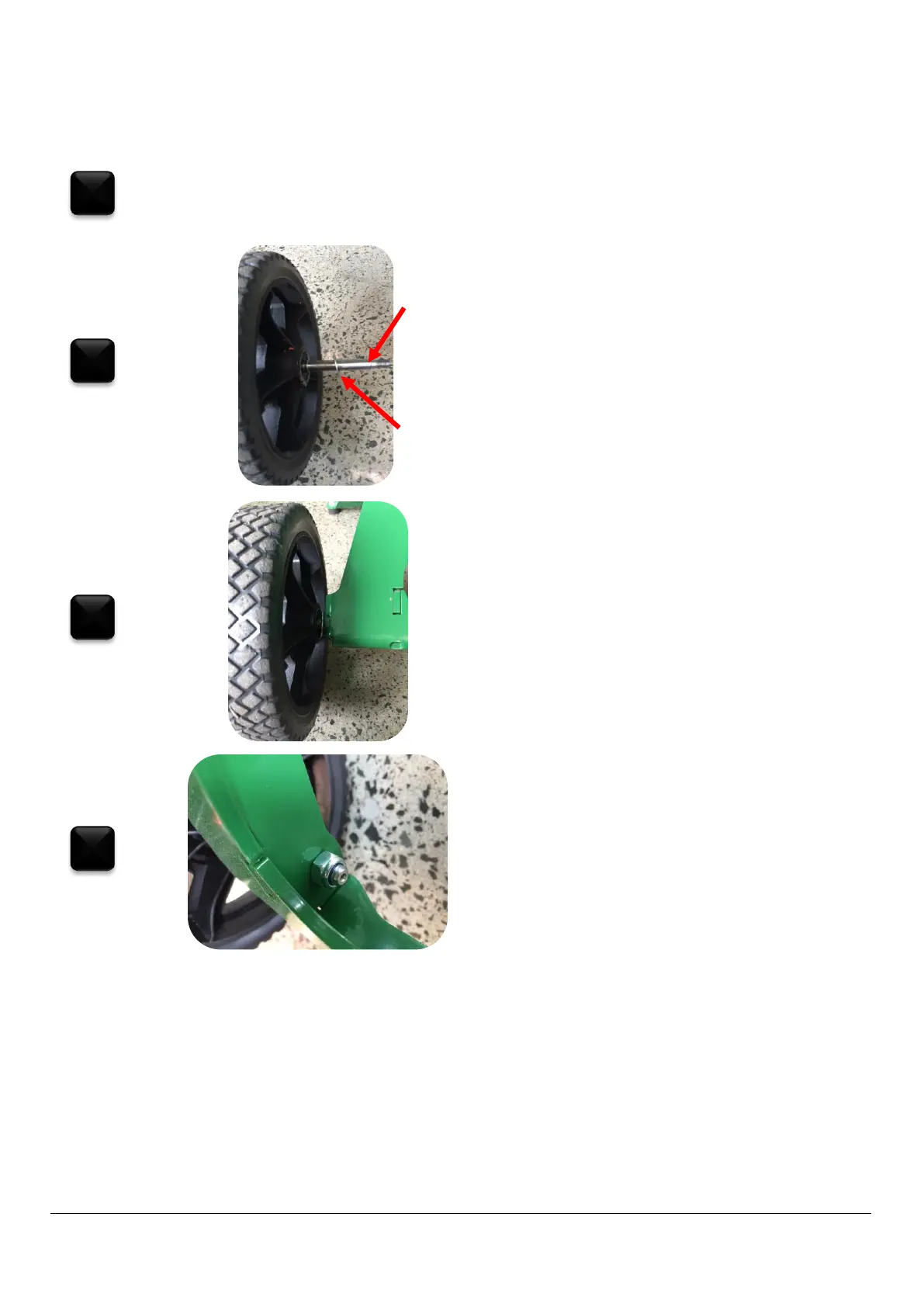

Insert the axle shaft through the wheel, then slide the
washer on.
Slide the axle shaft through the holes in the base of
the chipper body.
Screw the nyloc nut onto the end of the axle shaft.
Tighten the axle shaft using an 18 mm and 13 mm
spanner.
111
2
3
4
Axle shaft
Washer
