2.6 Input Connectors

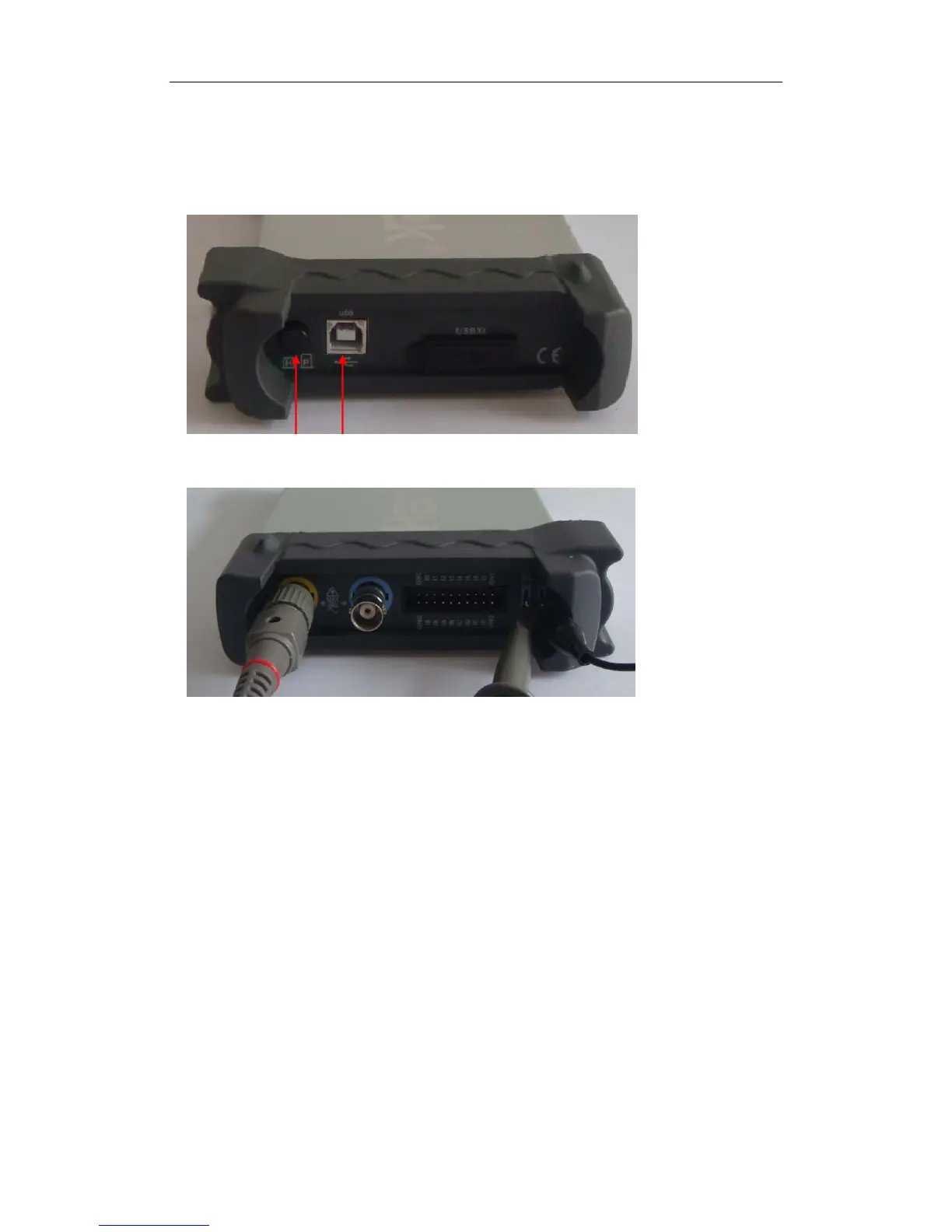

Input Connectors:
2 1
1. Button: press the button down to run hantek6022BE software.
2. USB PORT: Connect the B-Type Plug of USB cable to this port.
CH 1/CH 2: Input connectors for waveform display.
GND.: a ground terminal
CAL.: Probe compensation output.
