1.1 General Inspection
Please check the instrument as following steps after receiving an oscilloscope:
Check the shipping container for damage:
Keep the damaged shipping container or cushioning material until the contents of the
shipment have been checked for completeness and the instrument has been checked
mechanically and electrically.
Check the accessories:
Accessories supplied with the instrument are listed in "Accessories" in this manual. If the
contents are incomplete or damaged, please notify the franchiser.
Check the instrument:
In case there is any mechanical damage or defect, or the instrument does not operate properly or
fails performance tests, please notify the franchiser.
1.2 Front Panel

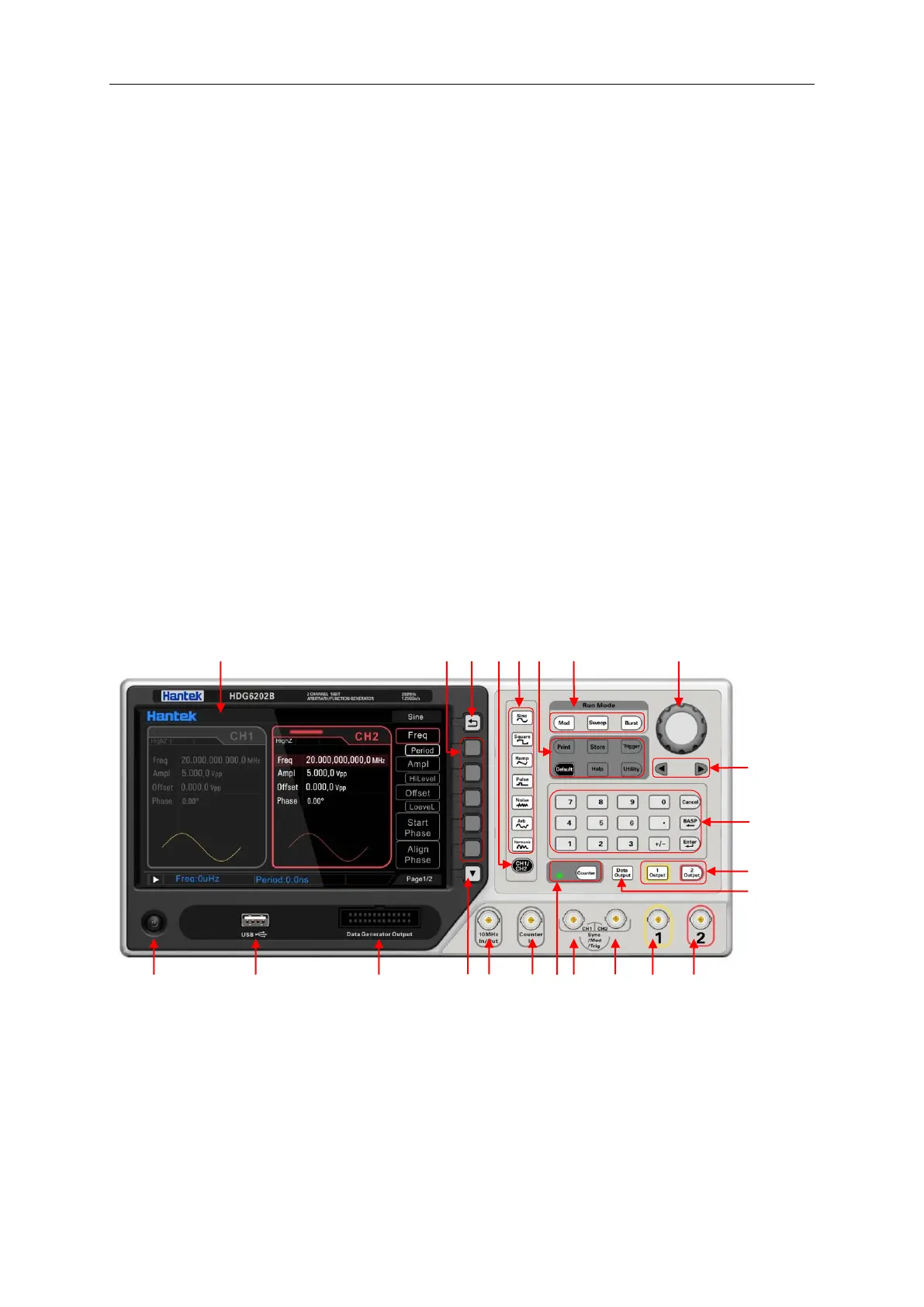

The content below simply describes and introduces the front panel of HDG6000B(C) so that you
can get familiar with it well within the shortest time.
1. On/Off Switch
2. USB device port
3. Digital channel
4. Page Up/Down. Open the previous or next page of the current function menu.
5. 10 MHz Reference In/ Out
BNC connector with 50Ω nominal output impedance and 5KΩ nominal input impedance. The
function of this connector is determined by the type of clock used by the generator.
To Next Page
