User Manual 92

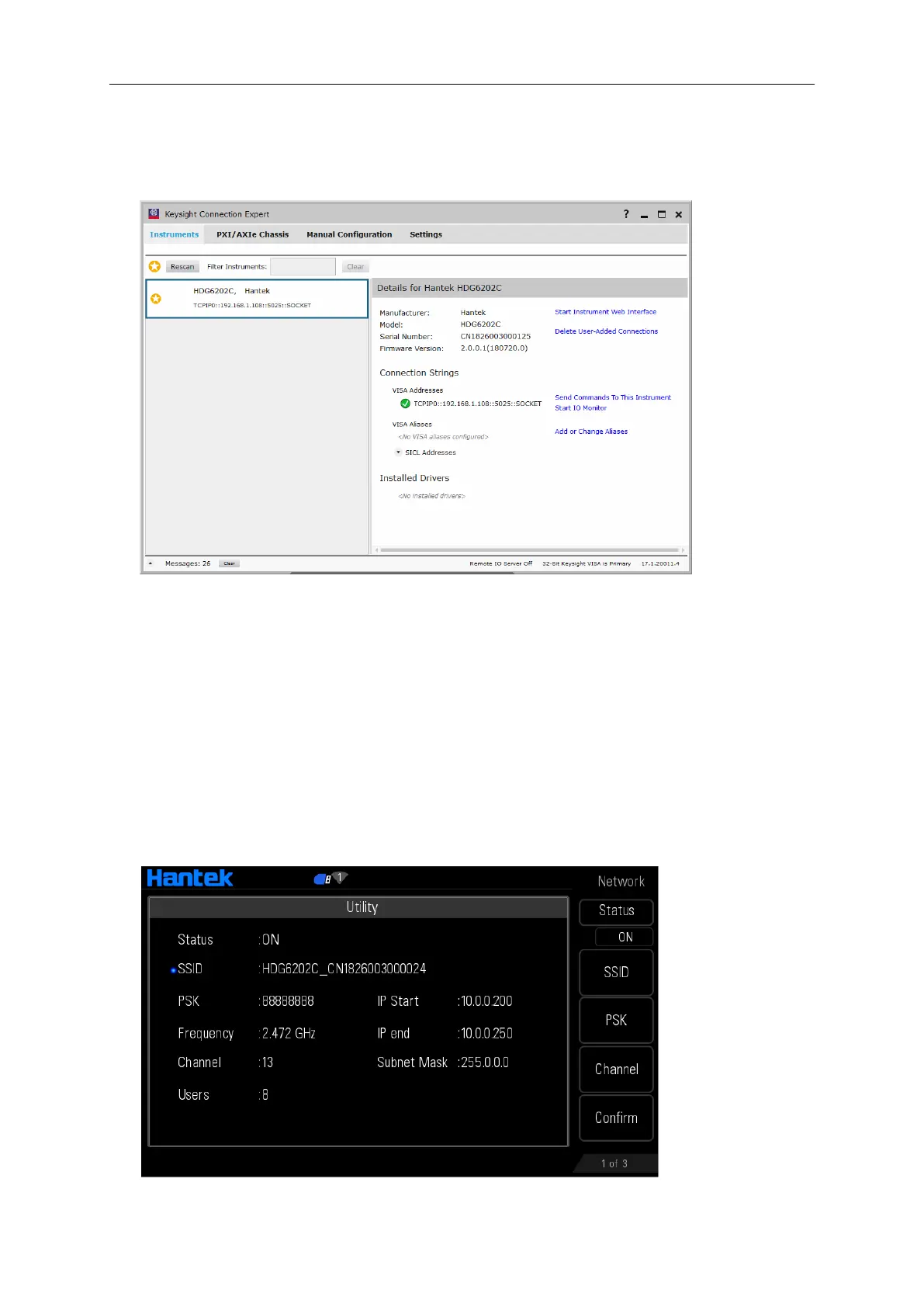

3. View the device resource
The resource found will appear under the directory, and the model number and IP address
information of the instrument will also be displayed.
For example, HDG6202C (TCPIP0::192.168.1.108::5025::SOCKET)
4. Control the instrument remotely
Click “Send Commands To This Instrument” to open Keysight interactive IO interface. You
can send commands and read data.
11.5 Remote Control via Hotspot (HDG6000C)
1. Connect the device
Open the Hotspot, and use your computer to search the hotspot as “HDG6020C_CN……,
default password: 88888888, IP Start: 10.0.0.200, IP End: 10.0.0.250”, now connect the
hotspot.
2. Search for device resource
