User Manual 64
In Infinite Cycle mode, the cycle number of the waveform is set as an infinite value. The generator
outputs a continuous waveform after receiving trigger signal. The carrier waveform includes Sine,
Square, Ramp, Pulse, Harmonic and arbitrary waveform (except DC).
The trigger source includes "Internal", "External" or "Manual". Besides, users can set the "Start
Phase" and "Trigger Slope" (external trigger) and "TrigOut" (manual trigger).

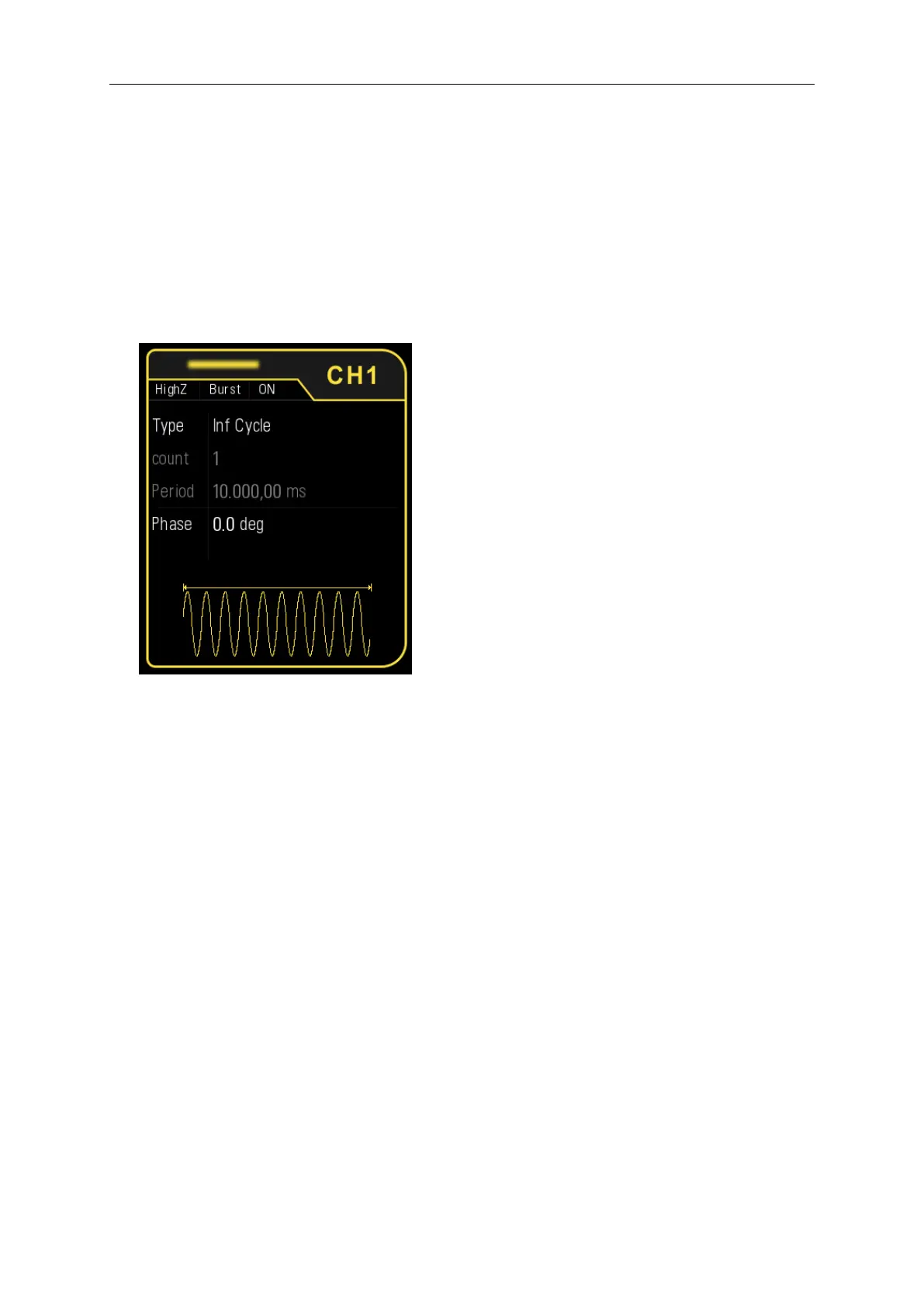

When Burst is enabled, press Type to select "Inf Cycle". A schematic diagram of infinite cycle
pulse will be displayed on the screen.
Gated Burst
In Gated Mode, the generator controls the waveform output according to the external signal level
from the [Sync/Mod/Trig] connector at the front panel. The carrier waveform includes Sine,
Square, Ramp, Pulse, Noise, Harmonic and arbitrary waveforms (except DC).
When the gated signal is "True", the generator outputs a continuous waveform; when the gated
signal is "False", the generator completes the current period, and then stops and holds on the
voltage level corresponding to the initial burst phase of the selected waveform. For Noise
waveform, the output will stop immediately once the gated signal becomes "False".
Gated Burst could only be triggered by "Ext" trigger source. Users can also set the "Start Phase".
When Burst is enabled, press Type to select "Gated" and then press Polarity to set the gated
polarity as "Positive" (or "Negative"). The generator outputs burst waveform only when the gated
signal is "Positive" (or "Negative").
