Signal source
EN
Tablet1000 User manual Copyright © Qingdao Hantek Electronics Co., LTD
68
17 Signal source
Click [AFG] to enter the signal source interface.
Users can edit any waveform or select sine wave, square wave, triangle wave, noise, DC
and arbitrary waveforms.

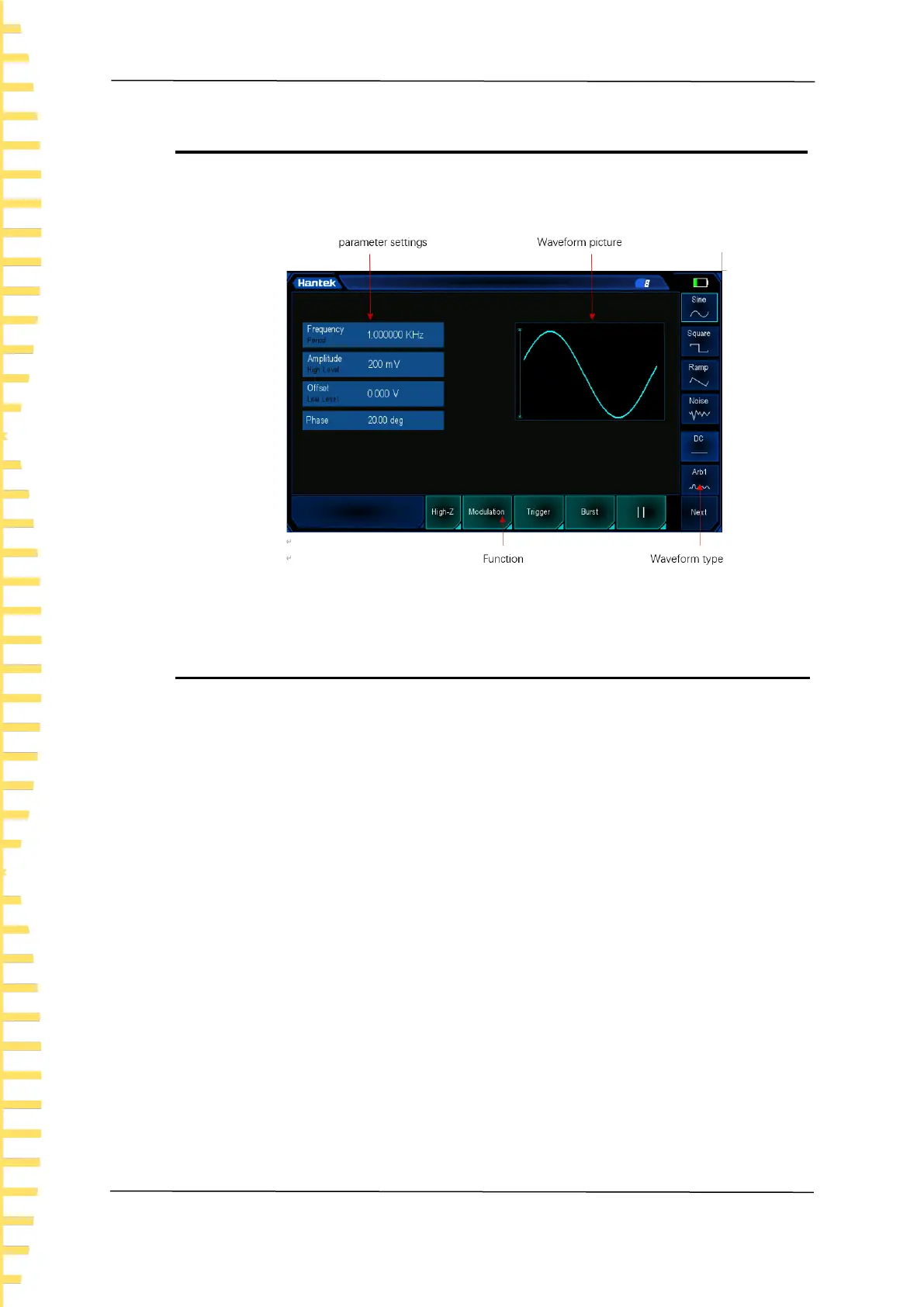

Figure 17.1 Signal source
17.1 Set the output waveform type and parameters
1. Enter the Signal source interface.
2. Select the desired Waveform on the right and click Confirm. Click Next to set extra
arbitrary waves.
3. Click Frequency to set the frequency. Click it again to set the Period. Click the
number to call out the numeric keypad to set the value.
4. Click Amplitude to set the amplitude. Click it again to set the high level (the offset
is automatically switched to the low level). Click the number to call out the numeric
keypad to set the value.
5. Click Offset to set the offset. Click it again to set the low level (the amplitude is
automatically switched to the high level). Click the number to call out the numeric
keypad to set the value.
6. Click Phase to set the phase. Click the number to call out the numeric keypad to
set the value.
7. Click Duty cycle to set the duty cycle of the square wave.
8. Click Symmetry to set the symmetry of the triangle wave.
9. Click High-Z repeatedly to set the output load impedance of the waveform
generator. The default value is 50Ω.
