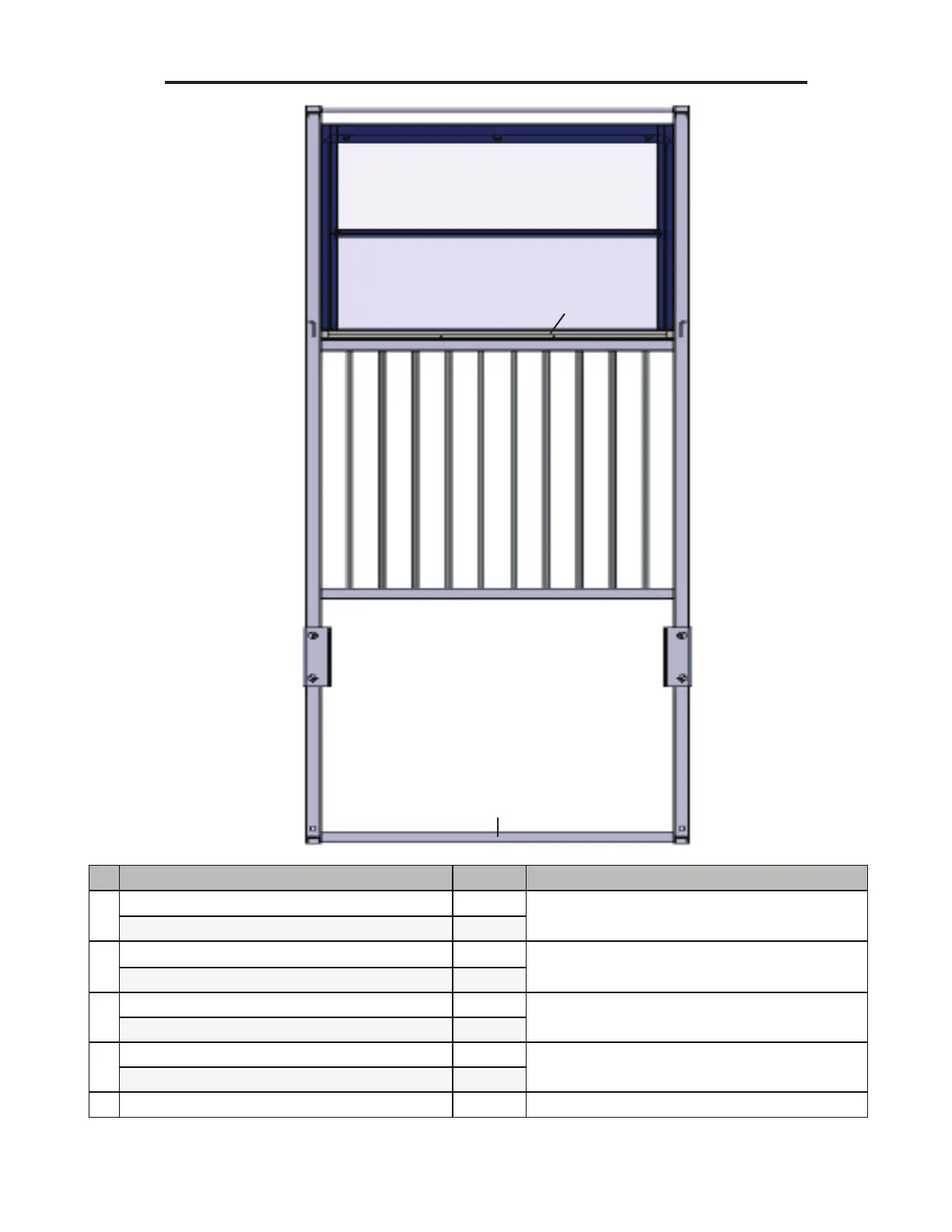

FOOT END ASSEMBLY DIAGRAM & PARTS LIST
3
*Note- If your crib was made prior to 2015 or of your foot end curtain does not have a chart
pocket, the Foot End Assembly parts listed above do not apply. Please contact us for the
correct part numbers.
2
Foot Trim Assembly
1
4
# Part Description Part # Notes
1
Foot Trim Assembly- 1915, 1935, 1943 90352
Complete Foot Assembly
Foot Trim Assembly- 1955 & 1975 90353
2
Foot Weld Assembly- 1915, 1935, 1943 82914
Outside head end frame only,
no curtain assembly
Foot Weld Assembly- 1955, 1975 82917
3
Foot Curtain Only- 1915, 1935 & 1943 63340
*Curtain has a chart pocket
as a standard feature.
Foot Curtain Only- 1955 & 1975 63770
4
End Curtain Retainer- 1915, 1935 & 1943 11173
Metal bar that holds the bottom of the curtain
to the crib frame. Screws not included.End Curtain Retainer- 1955 & 1975 11132
5 Screw for Retainer (Not shown) 63386 Not shown
