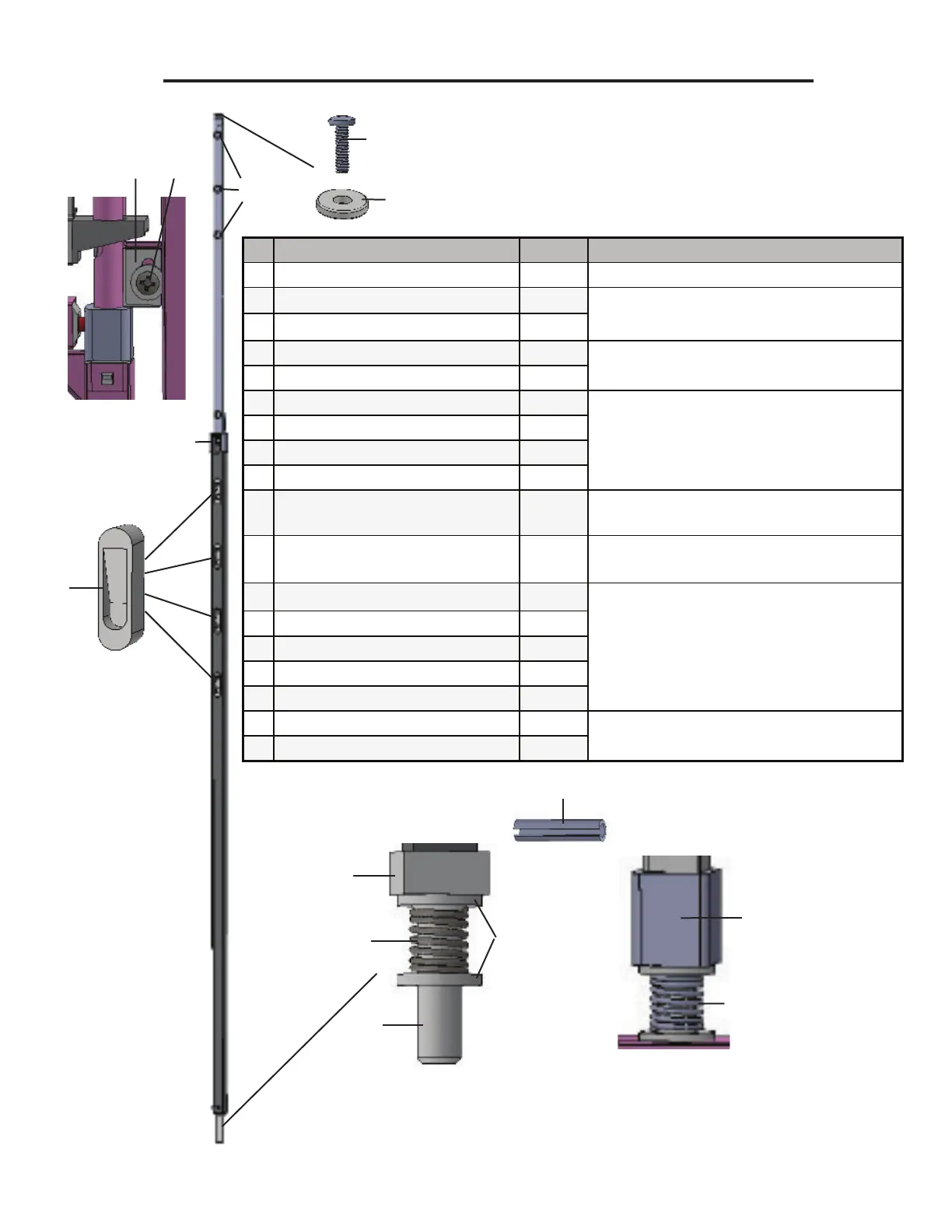

SLIDE ROD ASSEMBLY DIAGRAM & PARTS LIST
4
5
2
1
Lug in middle of
Slide Rod #6-9
10
11
14
15
12
16
17
18
13
# Part Description Part # Notes
1 Slide Rod 89998 Complete slide rod assembly as shown
2 Slide Rod Cup N/A
Not sold separately. If this part breaks,
order a new slide rod. Part is riveted on.
3 Rivet- not shown N/A
4 Screw 63392
For the top of the slide rod
5 Nylon Washer 11557
6 Screw 63392
For the middle of the slide rod at the lug
7 Nylon Washer 11556
8 Lockwasher 63454
9 Acorn Nut 62068
10 Slide Rod Insert 11567
For lower portion of slide rod-
trigger rests in this insert
11 Slide Rod Bushing 11520
For upper portion of slide rod-
lift bar trigger rests in these inserts
12 Slide Rod Adaptor 11576
Parts also available in hardware bag
72078. Parts for one slide rod.
13 1/8” x 3/4” Spring Pin 63834
14 Plastic Washer 1”x.545”x1/8” 11545
15 Bumper Spring- long crib sides 63403
16 Plastic Spacer- long crib sides 11750
17 Bumper Spring- crib ends 63845
Also available in hardware bag 72080
with #12-1418 Plastic Spacer- crib ends 11593
