12 MODEL M6
OPERATIONAL PROCEDURE
The M.6 Power Box Rake® is designed for removing rock and small debris,
and for thatching. Skid-steers must be equipped with an auxiliary hydraulic
system capable of supplying continuous ow for hydraulic motor operation.
This manual contains information for the M.6 straight and angling models.
Refer to the information in this manual for specications, parts, assemblies,
and adjustments.
ATTACHING POWER RAKE TO SKID-STEER
Read the skid-steer Operator’s Manual connecting and removing instruction.
Position hydraulic hoses so they will not be pinched when connecting the power rake.
The skid-steer coupler handles should be in the unlocked position and the lockpins retracted.

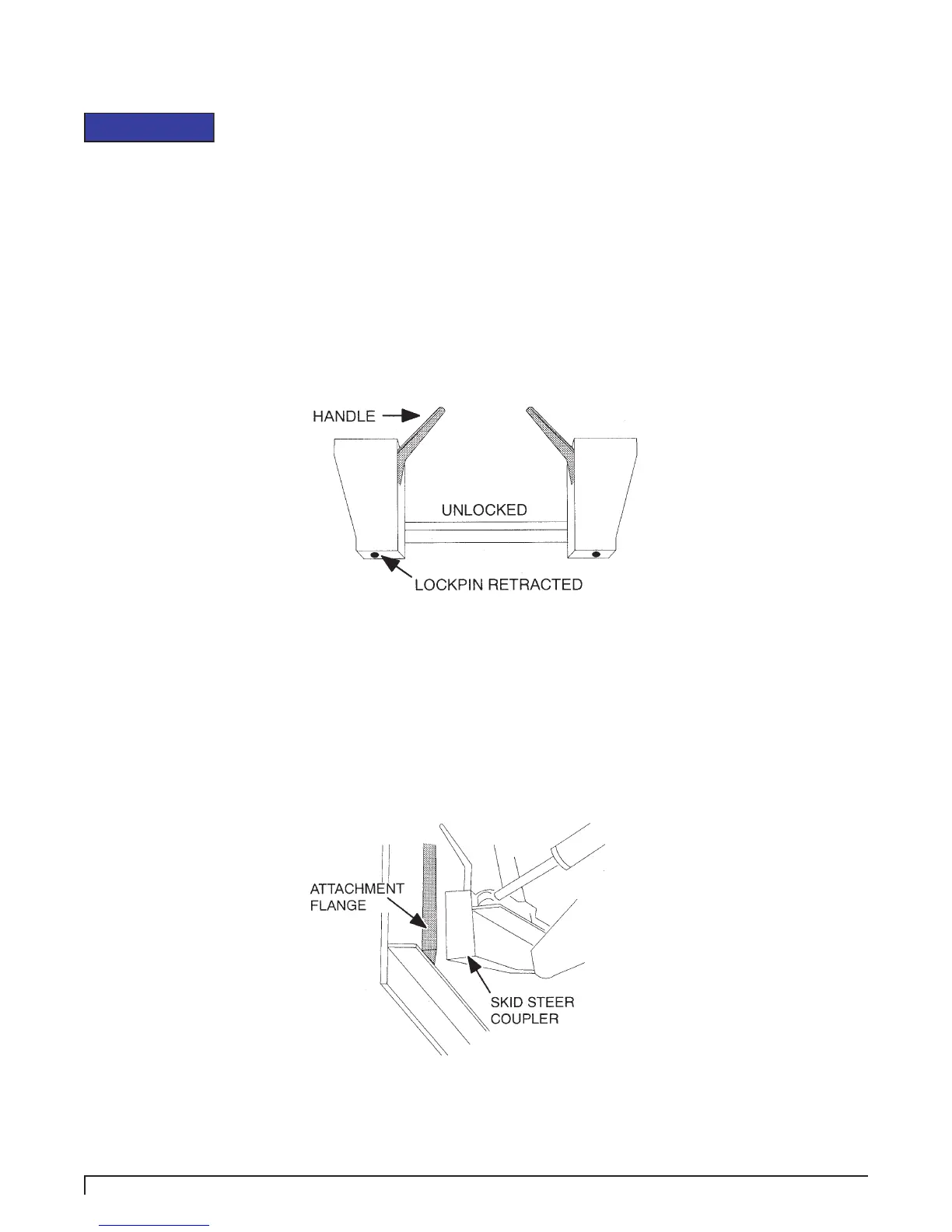

Figure 2. Skid-Steer Coupler Handles - Unlocked
Move to the skid-steer operator seat and start engine.
Lower skid-steer lift arms to their lowest position.
Carefully move and align the skid-steer to the power rake. The top of the skid-steer coupler must
index into the power rake ange, see Figure 3 below.
Roll the skid-steer coupler into the power rake so the coupler handles can be engaged.
Figure 3. Attaching Power Rake to Skid-Steer
Shut off the engine, set brake, and remove key. Dismount the skid-steer.
