Vi1000 USER MANUAL
15.0 15.0: TALKBACK & OSCILLATOR
15.0: TALKBACK & OSCILLATOR

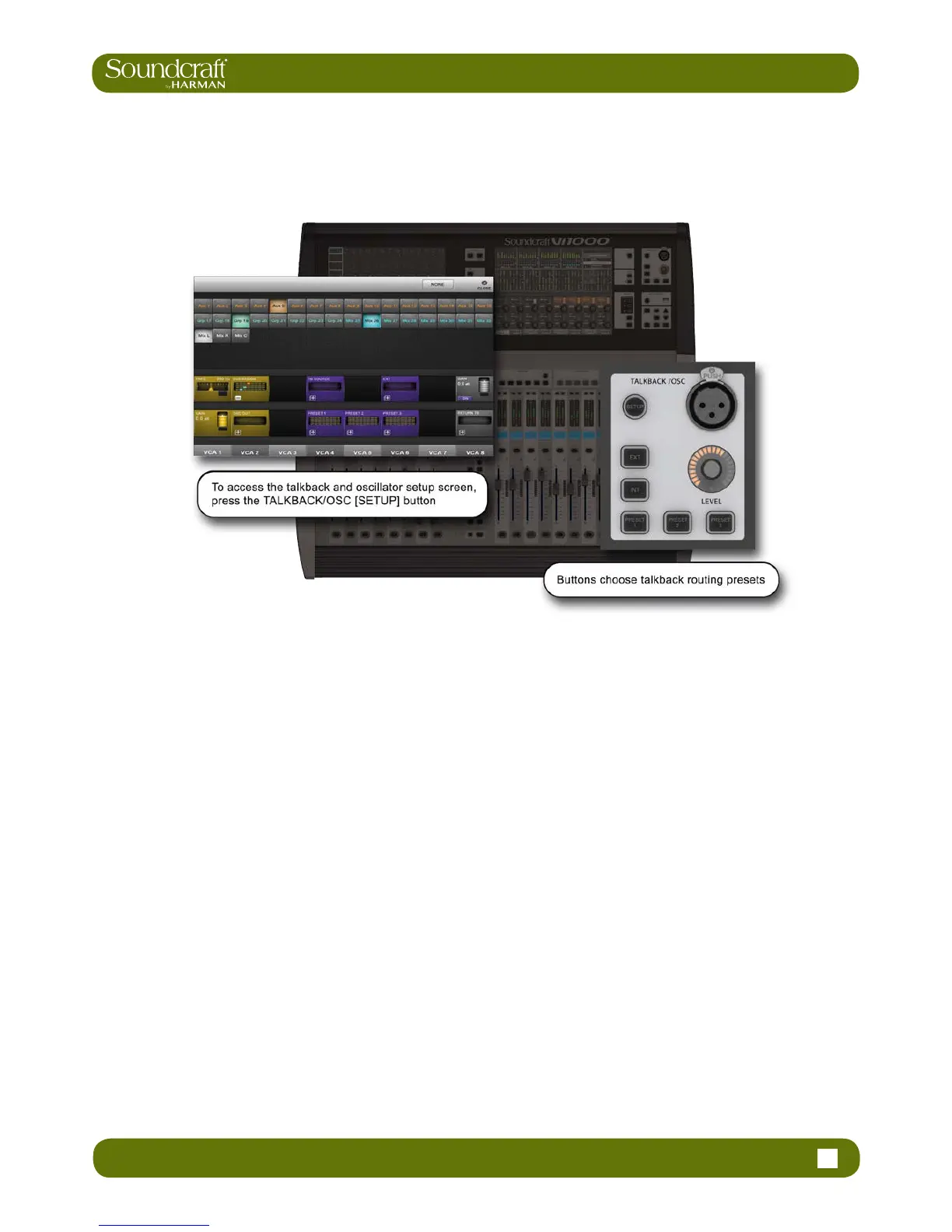

Most main oscillator and talback controls are grouped together in the master bay, though there is a Talback
Assignment button [TB ASSN] in the VISTONICS button group, which allows manual assignment of the talkback group
buss destinations.
Talkback is a independent signal path, normally from a microphone input to group and physical outputs, activated
with push-to-talk talkback buttons on the console itself. It is most often used to allow the console operator to talk to
assistants, performers, and so on. There is also a talkback return, which is an independent input path to the monitor
section - most often used to allow assistants and performers to talk directly to the console operator.
The oscillator is a signal generator provided as a general-purpose calibration and checking tool.
Talkback & Oscillator
