TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
10
SECTION 2 : INSTALLER
Preparation
WARNING
Never attempt to pick up the lift from
the box, ground or on/o a vehicle
alone. Two people should work
together to place this lift inside a
vehicle.
If only one person is available,
please follow the short disassembly
procedure on next page.
10"10"

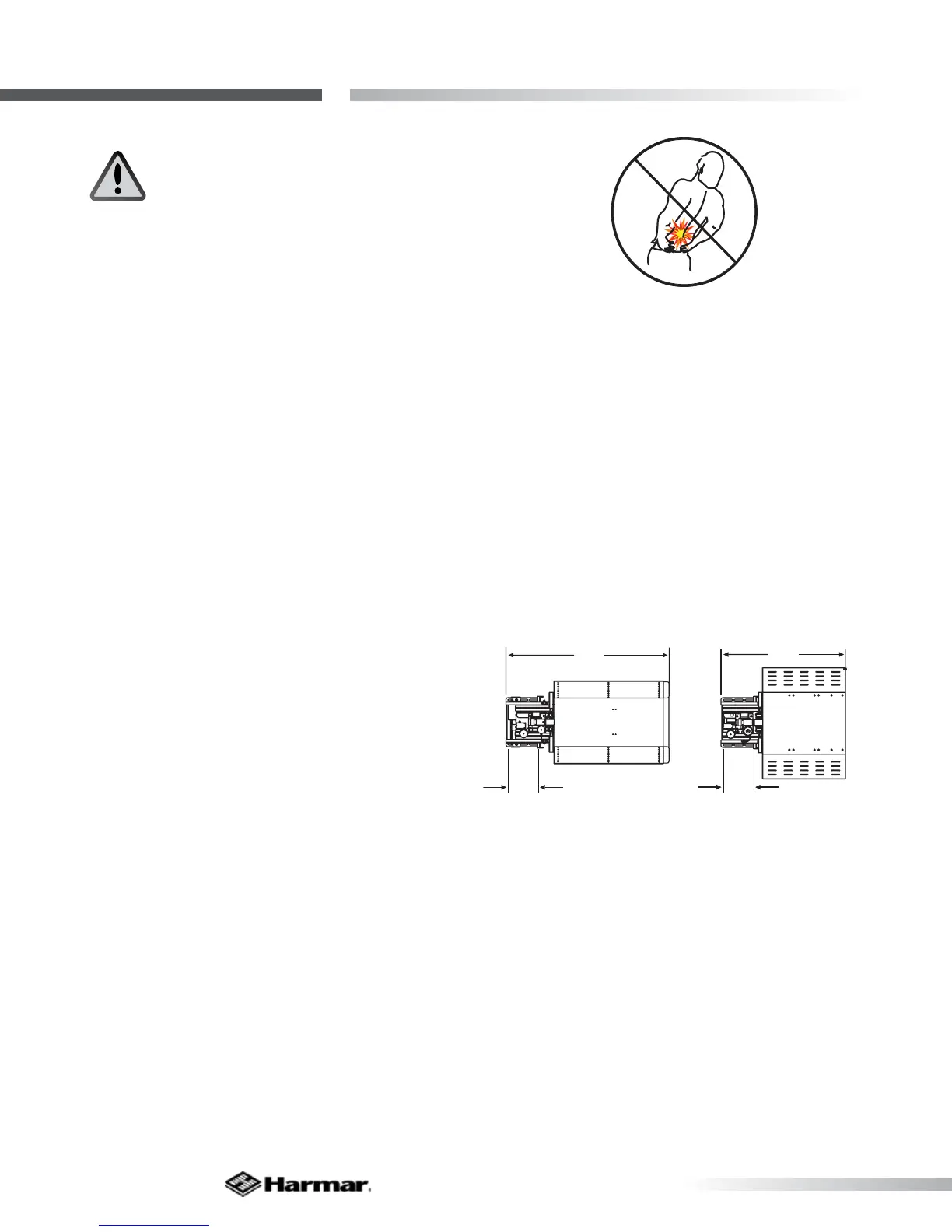

Figure 10-1
1. Install Wiring Harness. See page 12. Installing
the wiring harness rst will ensure you have power
to the lift during installation. This allows access to
platform assembly outside the vehicle and at waist
level. (If you skip this step, use a 12V shop battery.)
2. Remove Seating & Determine Lift Placement.
Remove seating. For AL600 (page 14) this is usually
the third row; for AL690, (page 22), second row.
Determine mounting range by climbing inside
cargo area and closing access door. Measure from
inside the door threshold to determine the lift’s
fully-stowed placement. For the AL600, measure to
43”; for AL690, measure to 55.” [Figure 10-1]
Look at the oor in the mounting area. If seat
removal reveals seat attachment points, or “dog
bones,” you will not need to drill.
If no attachment points exist in the area, you will
need to drill two 3/8” holes approximately 1” to
10” from your measurement point. (See installation
section for details.)
Overview – Installation Procedure
AL690
AL600
